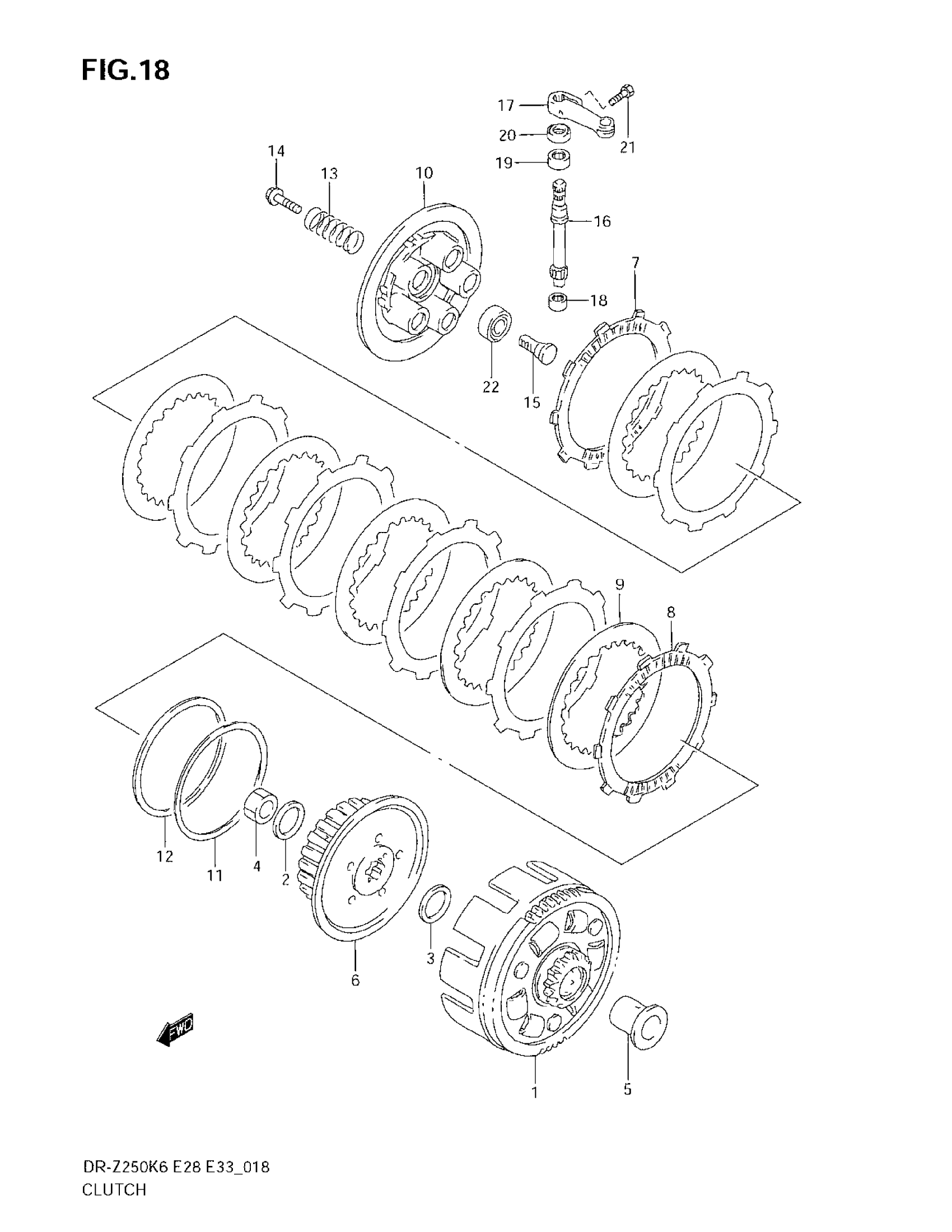

Suzuki DR-Z250 (2007) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:65/15

21200-13E00

Unavailable

2

WASHER

09164-20007

$4.60

3

THRUST WASHER

08211-20363

$3.18

4

NUT

09140-20012

$4.32

5

SPACER, PRIMARY DRIVEN GEAR

21251-13E00

$23.38

6

HUB, CLUTCH SLEEVE

21410-13E00

Unavailable

7

PLATE, CLUTCH SLEEVE

21441-31E60

$22.80

8

PLATE, CLUTCH DRIVE

21442-31E00

$39.23

9

PLATE, CLUTCH DRIVEN

21451-13E10

$13.90

10

DISC, CLUTCH PRESSURE

21462-42E00

Unavailable

11

SEAT, WAVE WASHER

21471-13E00

Unavailable

12

WASHER, CLUTCH PLATE

21472-13E00

Unavailable

13

SPRING, CLUTCH

21481-13E00

$6.13

14

BOLT, CLUTCH SPRING

21482-13E00

$2.96

15

RACK, CLUTCH RELEASE

23165-13E00

Unavailable

16

PINION, CLUTCH RELEASE

23261-27C10

$45.38

17

ARM, CLUTCH RELEASE

23271-20902

$29.60

18

BEARING (9X13X10)

09263-09001

$14.53

19

BEARING (12X16X10)

09263-12024

$12.67

20

OIL SEAL (10X17X5)

09285-10004

$3.37

21

BOLT

01500-0616A

$1.78

22

BEARING (12X28X8)

09262-12001

$18.47
