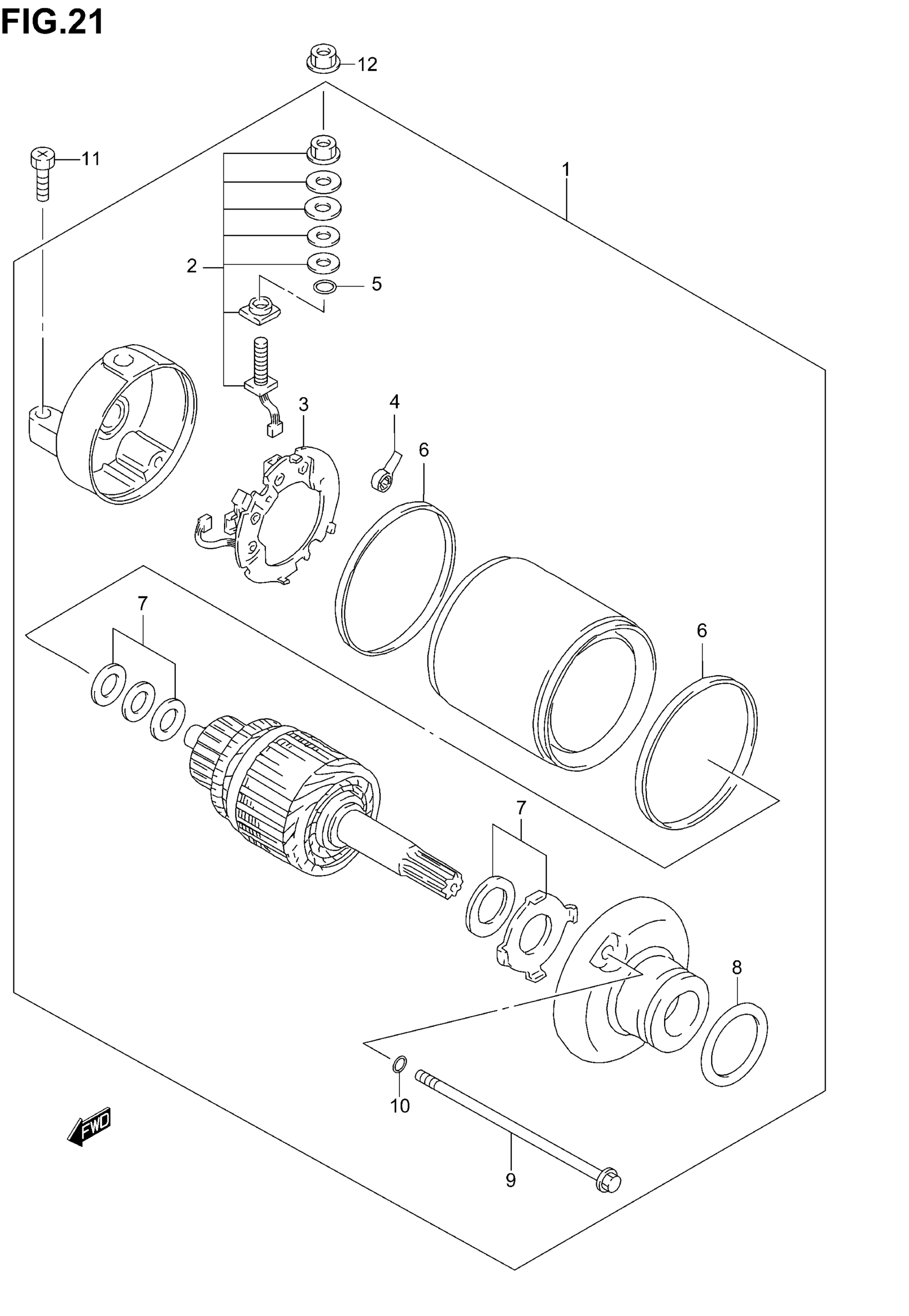

Suzuki DR-Z250 (2005) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-13E00

Unavailable

2

BRUSH TERMINAL SET

31130-13E00

$44.18

3

BRUSH HOLDER SET

31132-13E00

$56.75

4

SPRING, BRUSH

31135-31300

$4.96

5

O RING

31143-49040

$3.71

6

O RING

31264-13E00

$6.68

7

WASHER SET

31170-19B10

$12.57

8

O RING (D:3.1,ID:24.4)

09280-25002

$1.99

9

BOLT

31280-13E00

$20.45

10

O RING

31156-13E00

$4.35

11

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

12

NUT This part replaces 08361-35068.

08361-3506A

$1.80
