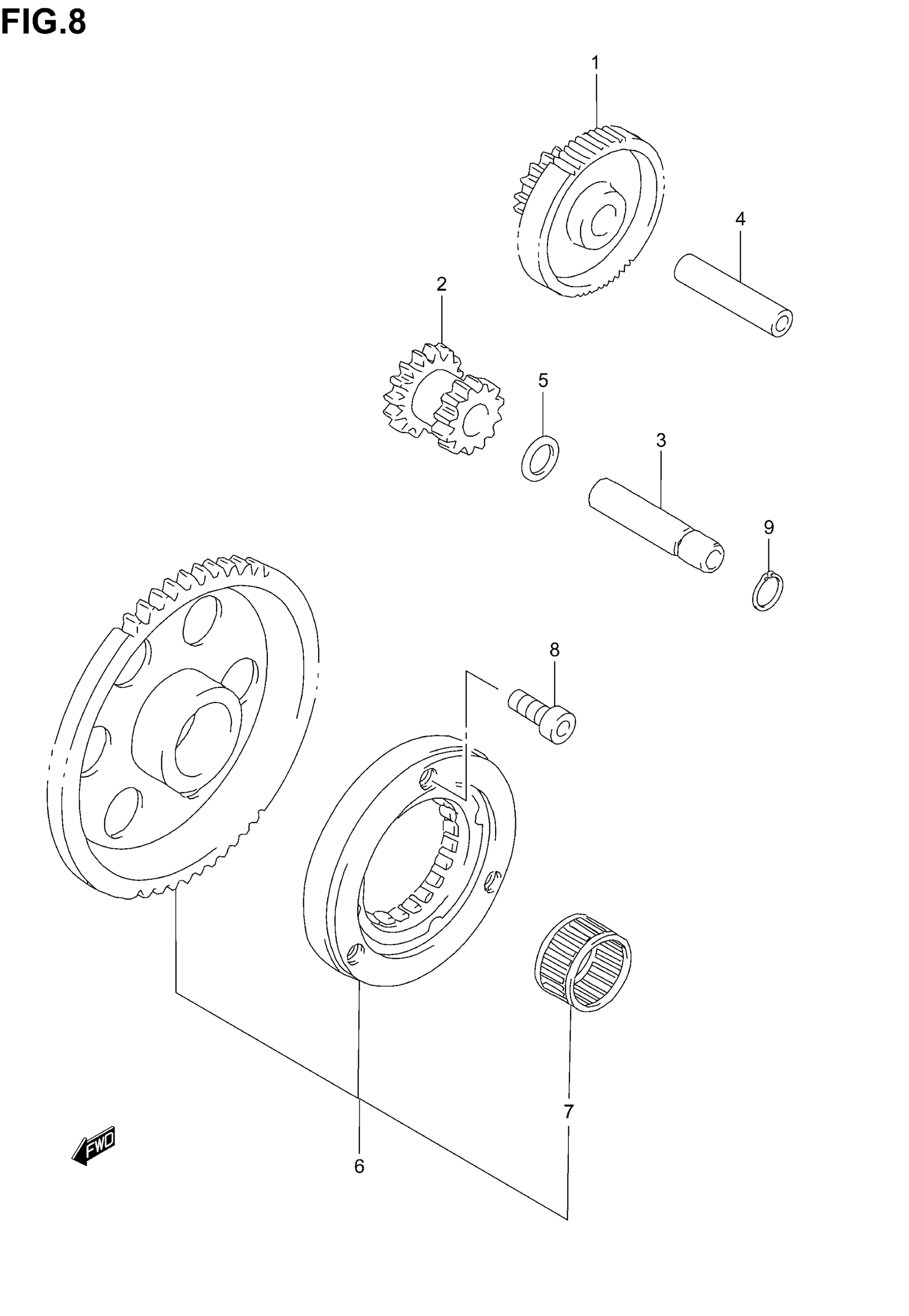

Suzuki DR-Z250 (2005) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER NO.1 (NT:13/65)

12611-13E00

$102.82

2

GEAR, STARTER NO.2 (NT:12/16)

12612-13E00

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 12616-13E00.

12616-13E01

Unavailable

4

PIN (7X12X50.5)

09206-12002

$16.00

5

SHIM (12X18X0.5)

09181-12130

$2.06

6

CLUTCH SET, STARTER | Includes Item(s) 7

12600-13810

$360.90

7

BEARING (25X31X19)

09263-25049

$28.61

8

BOLT This part replaces 07130-08163.

07130-0816A

$3.16

9

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78
