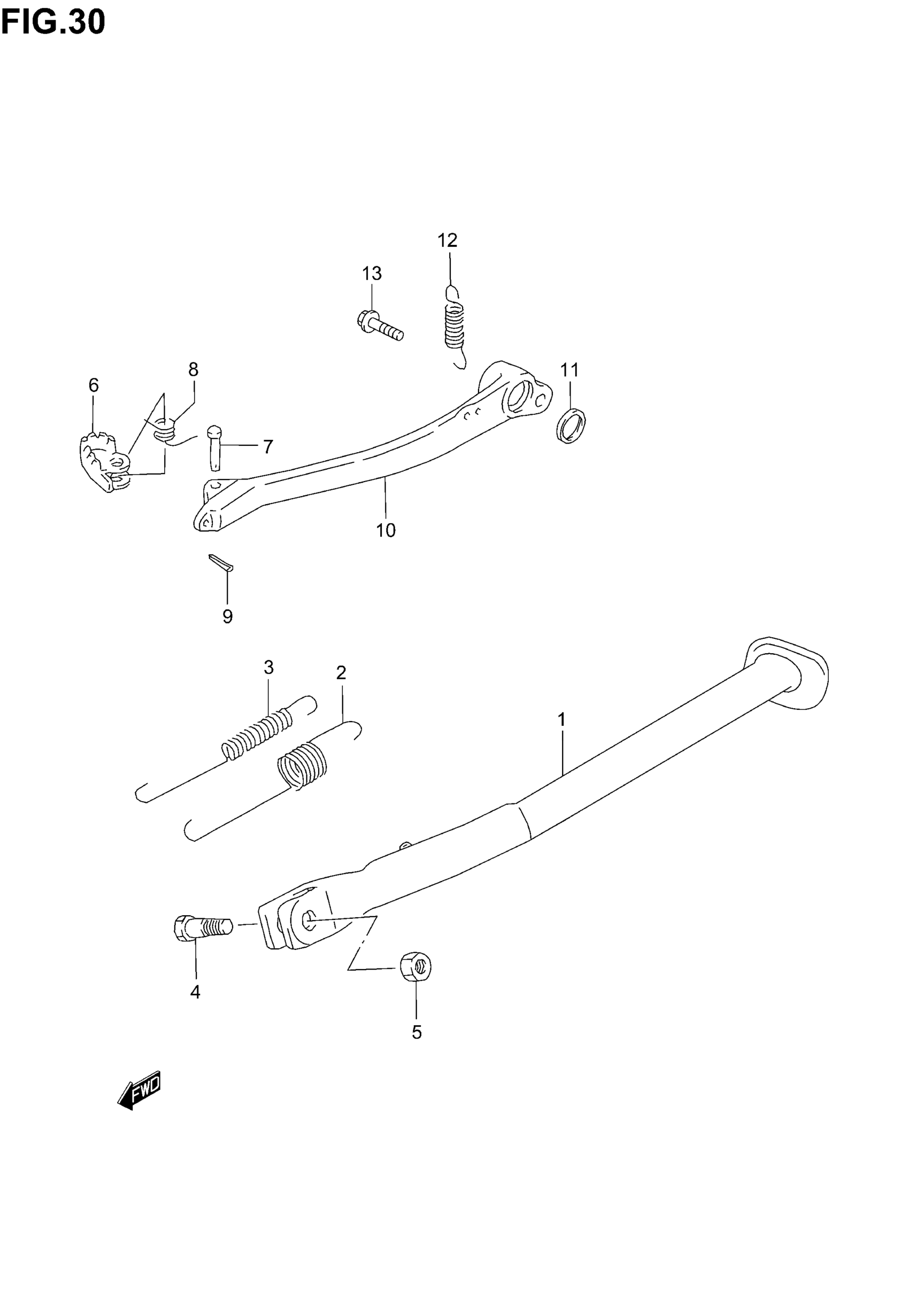

Suzuki DR-Z250 (2005) STAND Diagram

#

Description
Price

1

STAND, PROP This part replaces 42310-13E20.

42310-13E00

$189.20

2

SPRING

09443-19010

$6.51

3

SPRING

09443-12036

$7.84

4

BOLT

09111-10047

$4.11

5

NUT

09159-10097

$5.66

6

PEDAL, BRAKE

43110-43D00

$15.78

7

PIN

09200-06062

$2.20

8

SPRING

09444-11006

$3.18

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

10

ARM, BRAKE PEDAL

43112-13E02

Unavailable

11

OIL SEAL (15X20X3)

09284-15006

$3.55

12

SPRING

09443-11030

$3.70

13

BOLT (8X14)

09106-08098

$4.64
