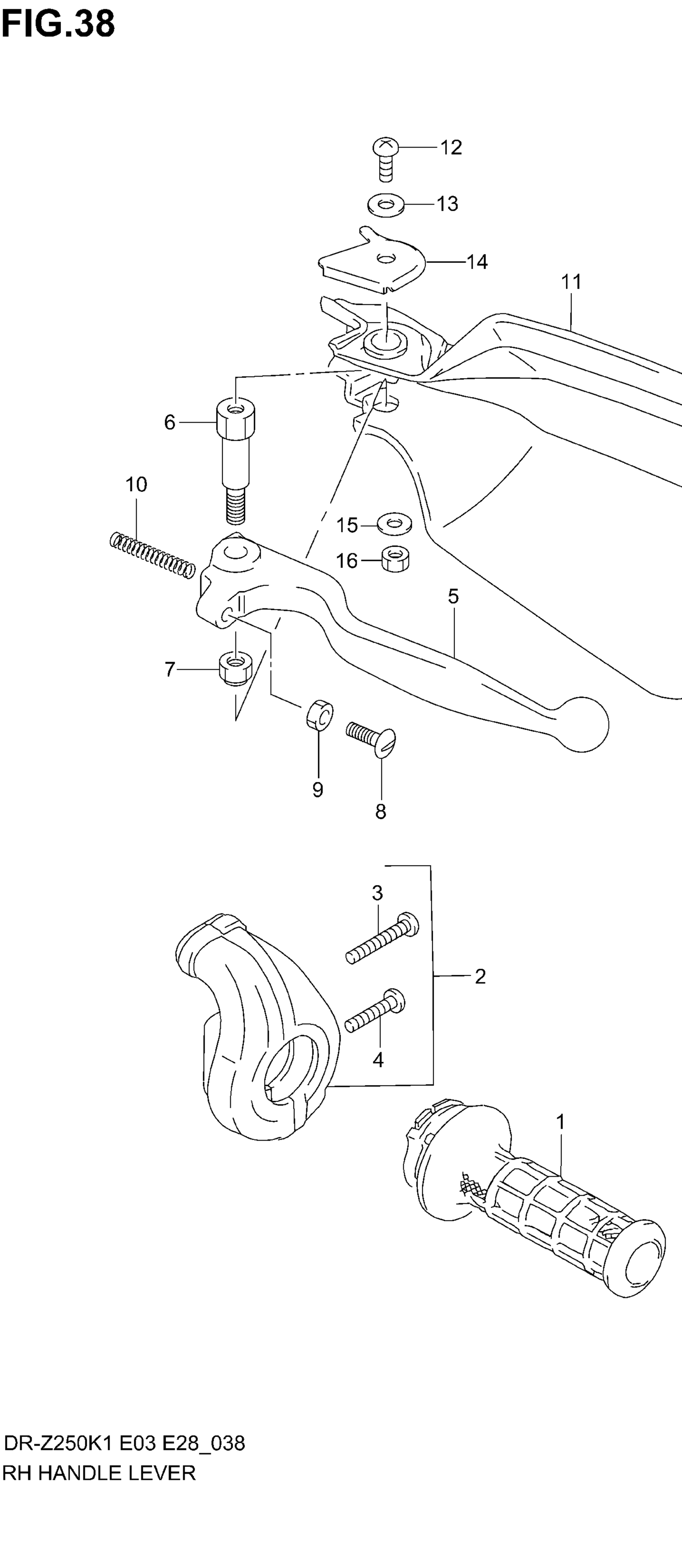

Suzuki DR-Z250 (2005) RH HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-14D11

$44.50

2

CASE ASSY THROTTLE | Includes Item(s) 3 - 4

57100-14D00

$70.49

3

SCREW (5X25)

09125-05066

$1.65

4

SCREW This part replaces 02112-05203.

02112-0520B

$1.84

5

LEVER, BRAKE

57421-27C00

$14.24

6

BOLT, BRAKE LEVER PIVOT

57431-05D00

$13.20

7

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

8

BOLT, ADJUST

57431-14511

$5.80

9

NUT This part replaces 08310-00053.

08310-0005A

$1.84

10

SPRING, RETURN

57318-14502

$4.48

11

COVER,KNUCKLE RH (BLACK) | MODEL K1 This part replaces 57341-05D00-019.

57341-05D10-019

$43.88

11

COVER, KNUCKLE RH (YELLOW) | MODEL K2/K3/K4/K5 This part replaces 57341-05D00-YU1.

57341-05D10-YU1

$46.22

12

SCREW

02142-05107

$1.49

13

WASHER

09160-05043

$2.30

14

PLATE, UPPER

57355-14D00

$6.88

15

.WASHER (6.5X16X1.6)

09160-06130

$1.91

16

.NUT This part replaces 08319-21068.

08319-2106A

$1.91
