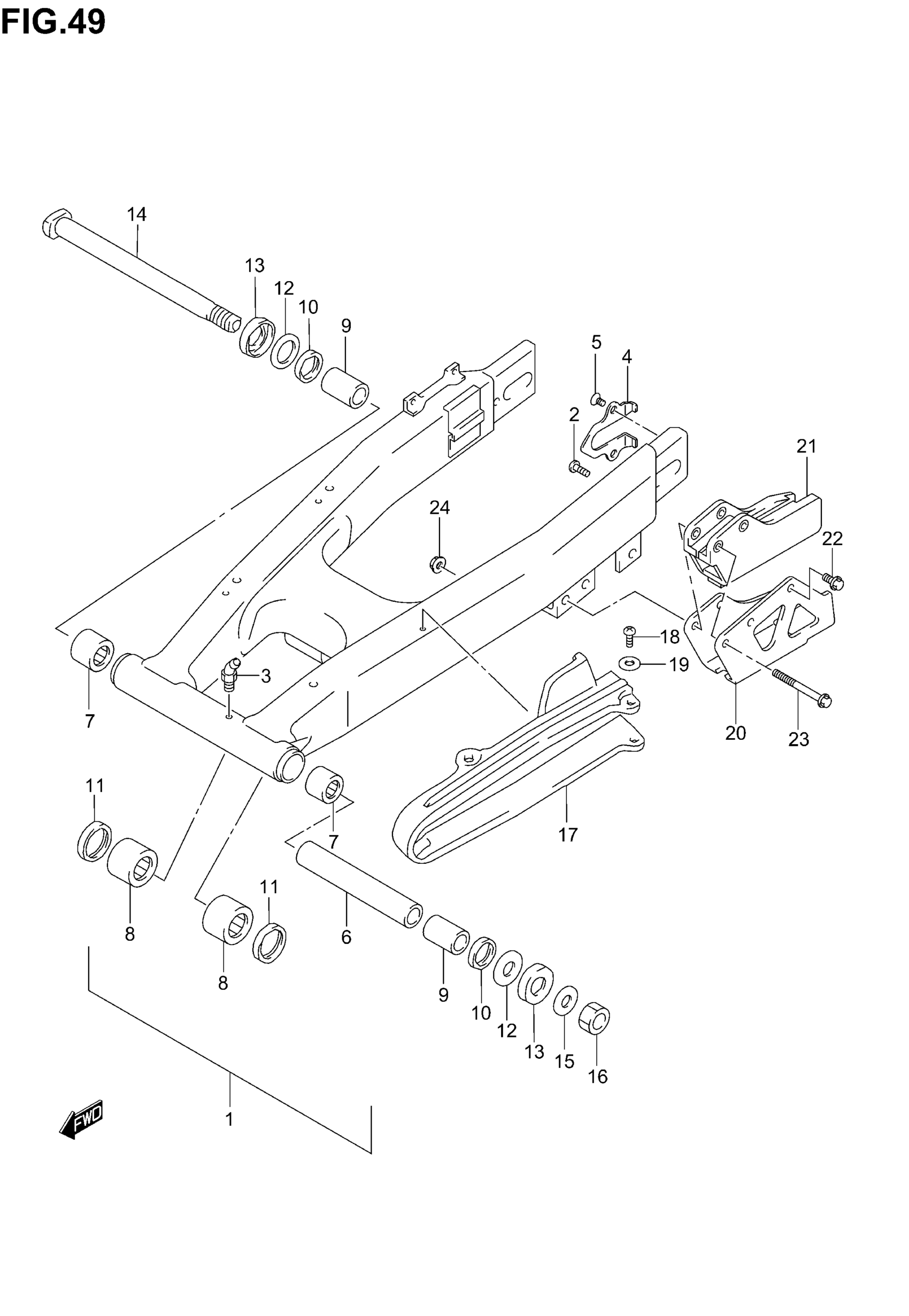

Suzuki DR-Z250 (2005) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 8

61000-13E20

Unavailable

2

BOLT, STOPPER

61431-13E00

$13.03

3

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.07

4

.PLATE RR SWING ARM AXLE

61128-29E00

$24.33

5

SCREW (5X8)

09126-05009

$2.29

6

SPACER

61282-13E00

Unavailable

7

BEARING, PIVOT (22X29X30)

09263-22017

$20.38

8

BEARING, REAR (20X27X23.5)

09263-20071

$23.72

9

SPACER, PIVOT BEARING

61251-14D00

$31.55

10

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

11

OIL SEAL, REAR (20X27X5)

09283-20031

$4.73

12

THRUST WASHER

08211-17341

$2.53

13

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$6.42

14

SHAFT, PIVOT

61211-13E00

Unavailable

15

WASHER This part replaces 08322-01163.

08322-0116A

$1.86

16

NUT

09159-16007

$11.37

17

BUFFER,CHAIN TOUCH DEFENSE

61273-13E01

$41.95

18

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

19

WASHER

09169-06057

$2.92

20

PLATE, CHAIN GUIDE This part replaces 61342-36E30.

61342-37F00

$72.75

21

GUIDE, CHAIN This part replaces 61341-36E30.

61341-35G00

$43.99

22

BOLT This part replaces 01547-06123.

01547-0612B

$1.22

23

BOLT This part replaces 01547-06503.

01547-0650B

$2.77

24

NUT This part replaces 08319-31063.

08319-3106A

$2.01
