2005 Suzuki DR-Z250 Front Wheel Diagram

← All diagrams

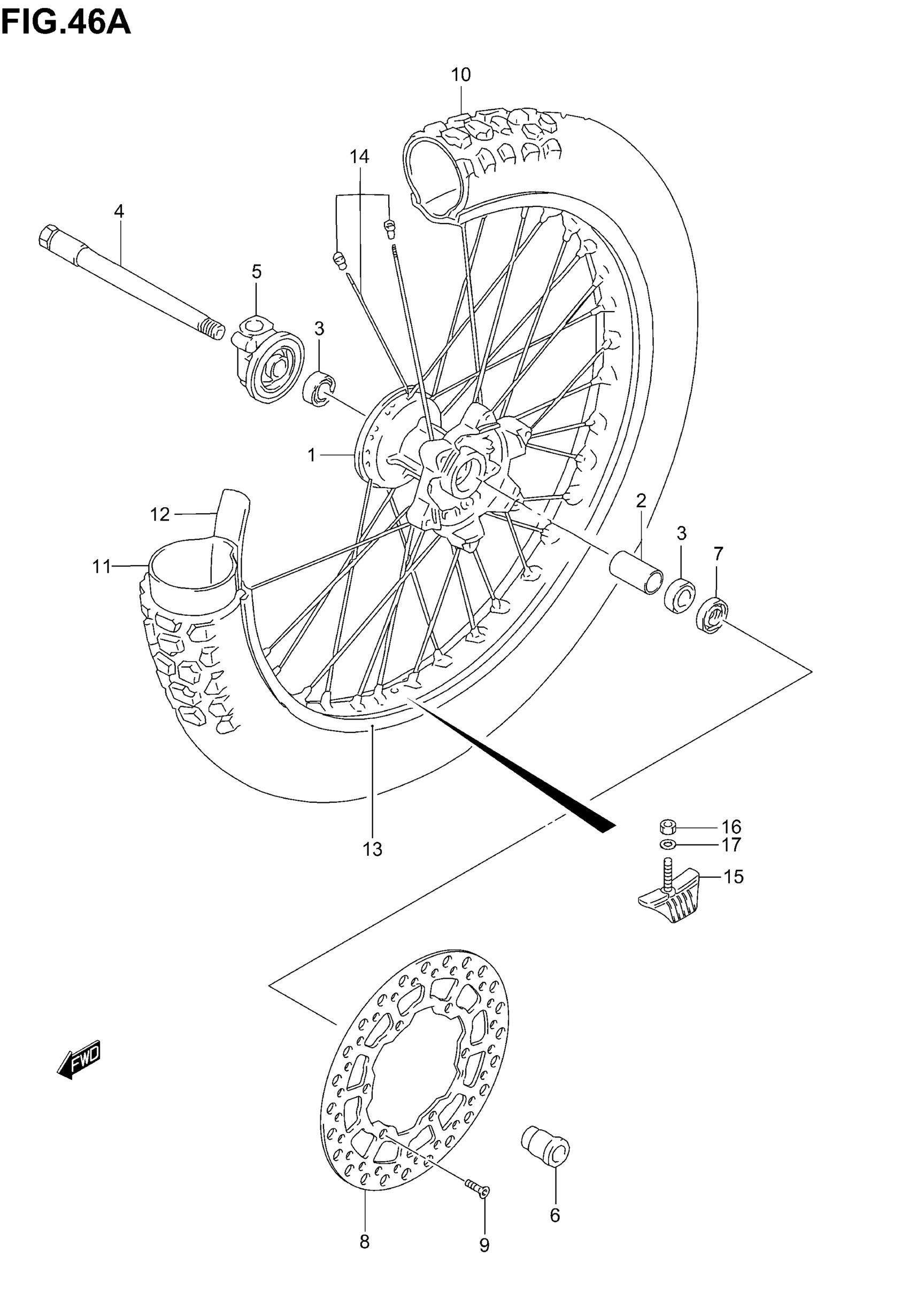

Find the part on the Front Wheel diagram for your 2005 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki DR-Z250 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT WHEEL

54111-29E00

1
Out of stock

2

SPACER, BEARING

54730-01B00

1

$60.85

In stock

3

BEARING

08123-60037

2

$21.49

In stock

4

AXLE, FRONT

54711-05D01

1

$110.18

In stock

6

SPACER, FRONT AXLE LH

54751-05D00

1

$22.07

In stock

7

OIL SEAL (23X35X6)

09284-23001

1

$7.92

In stock

8

DISC, FRONT BRAKE LH

59221-29F00

1

$337.88

In stock

10

TIRE, FRONT, 80/100-21 51M (DUNLOP)

55110-36E10

1
Out of stock

11

TUBE ASSY,WHEEL INNER This part replaces 55200-29F00.

55200-29F01

1
Out of stock

12

PROTECTOR, WHEEL INNER TUBE

55261-44AF0

1
Out of stock

13

RIM, FRONT WHEEL (1.60X21) This part replaces 55311-28C00.

55311-28C01

1
Out of stock

14

1

$152.52

In stock

15

STOPPER, BEAD (1.6)

65270-08G00

1
Out of stock

16

NUT This part replaces 08310-00083.

08310-0008A

1
Out of stock

17

1

$2.27

In stock
