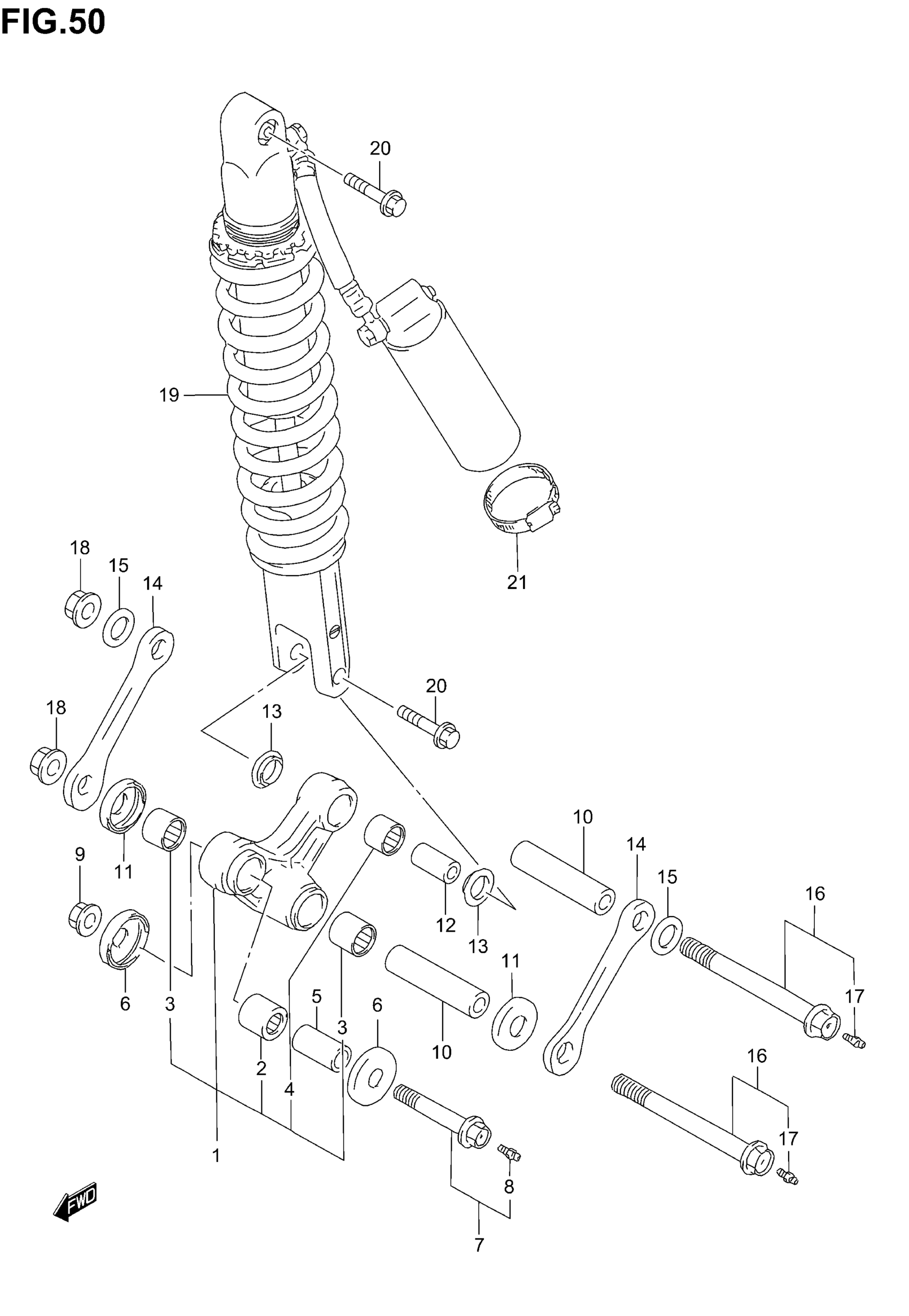

Suzuki DR-Z250 (2005) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62601-13840

Unavailable

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

3

BEARING, CENTER (20X27X23.5)

09263-20071

$25.92

4

BEARING, REAR (17X24X20)

09263-17027

$19.48

5

SPACER

62317-05D00

$23.07

6

SEAL, DUST This part replaces 62162-28E00.

62162-28E01

$10.69

7

BOLT, FRONT | Includes Item(s) 8

62650-05D00

Unavailable

8

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

9

NUT This part replaces 08319-31128.

08319-3112A

$3.76

10

SPACER, CENTER

62626-14D00

$30.72

11

SEAL,DUST This part replaces 62624-08D10.

62624-08D11

$9.87

12

SPACER, REAR

62684-40A10

$12.15

13

SEAL, REAR DUST

62624-13E00

$10.28

14

ROD, REAR CUSHION LEVER

62641-13E00

$64.30

15

THRUST WASHER

08211-14321

$3.85

16

BOLT, ROD | Includes Item(s) 17

62620-14D00

Unavailable

17

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

18

NUT This part replaces 08319-31148.

08319-3114A

$9.66

19

ABSORBER ASSY, RR SHOCK (RED) | MODEL K1/K2/K3 E3/E33

62100-13E70-37W

Unavailable

19

ABSORBER ASSY, RR SHOCK (RED) | MODEL K1/K2/K3 E28

62100-13E80-37W

Unavailable

19

ABSORBER ASSY, RR SHOCK (YELLOW) | MODEL K4/K5 E3/E33

62100-13E70-163

Unavailable

19

ABSORBER ASSY, RR SHOCK (YELLOW) | MODEL K4/K5 E28

62100-13E80-163

Unavailable

20

BOLT

62648-14500

$4.34

21

CLAMP

09402-50511

$11.73
