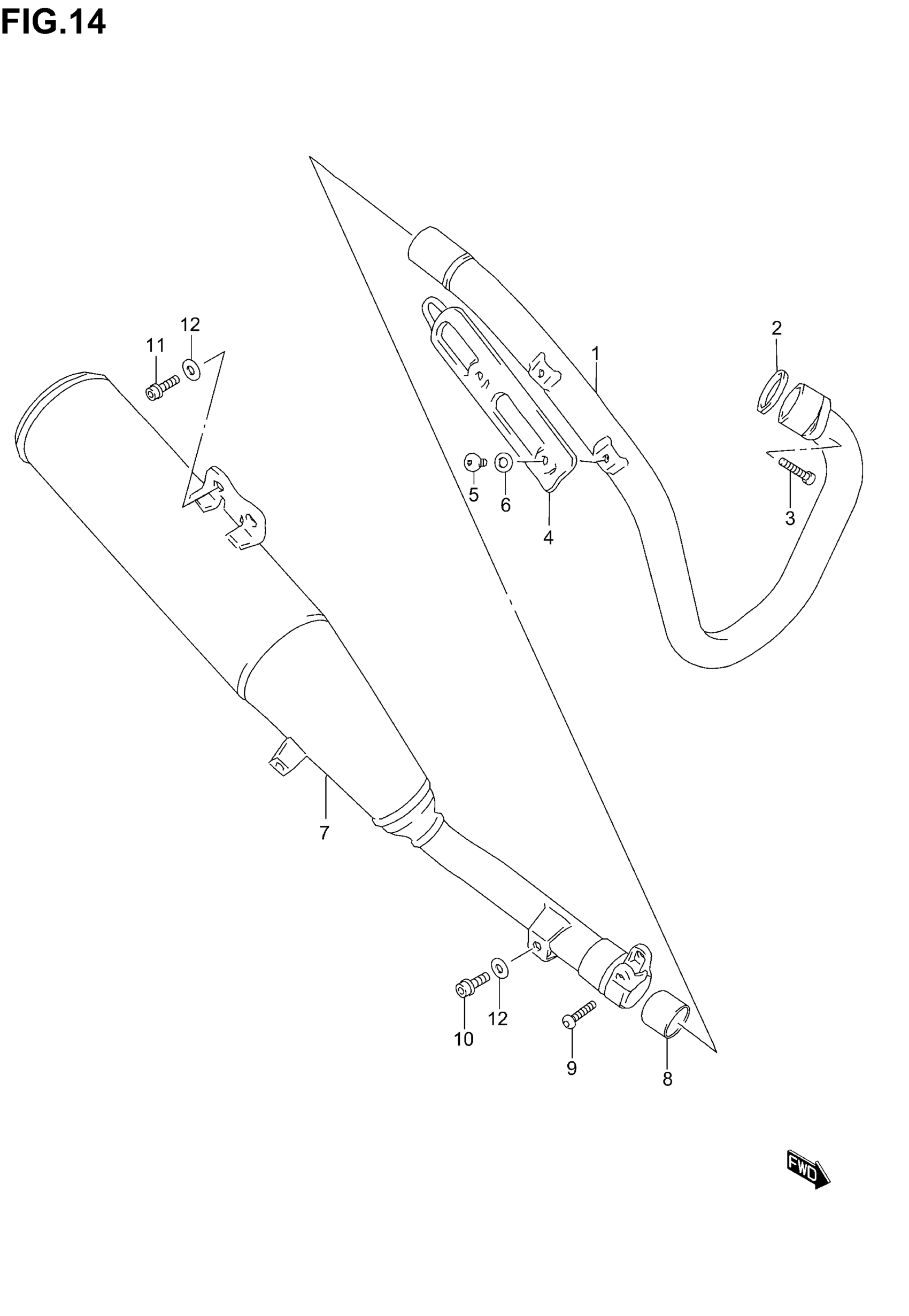

Suzuki DR-Z250 (2005) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-13E60

Unavailable

2

.GASKET,EXHAUST

14181-18C00

$7.22

3

BOLT (8X25) | MODEL K1 This part replaces 09106-08104.

09106-08165

$4.03

3

BOLT | MODEL K2/K3/K4/K5 This part replaces 07130-08253.

07130-0825B

$3.37

4

COVER, EXHAUST PIPE | ?14180-13E60

14180-13E10

Unavailable

5

SCREW (6X10)

09139-06078

$2.79

6

WASHER (6.5X13X1)

09160-06082

$1.49

7

BODY, MUFFLER

14310-13E60-H01

Unavailable

8

CONNECTOR, MUF This part replaces 14771-13E00.

14771-13E10

$15.57

9

BOLT This part replaces 07120-08353.

07120-0835B

$4.58

10

BOLT (8X12)

09106-08135

Unavailable

11

BOLT (8X20)

09106-08107

$2.81

12

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

$2.03
