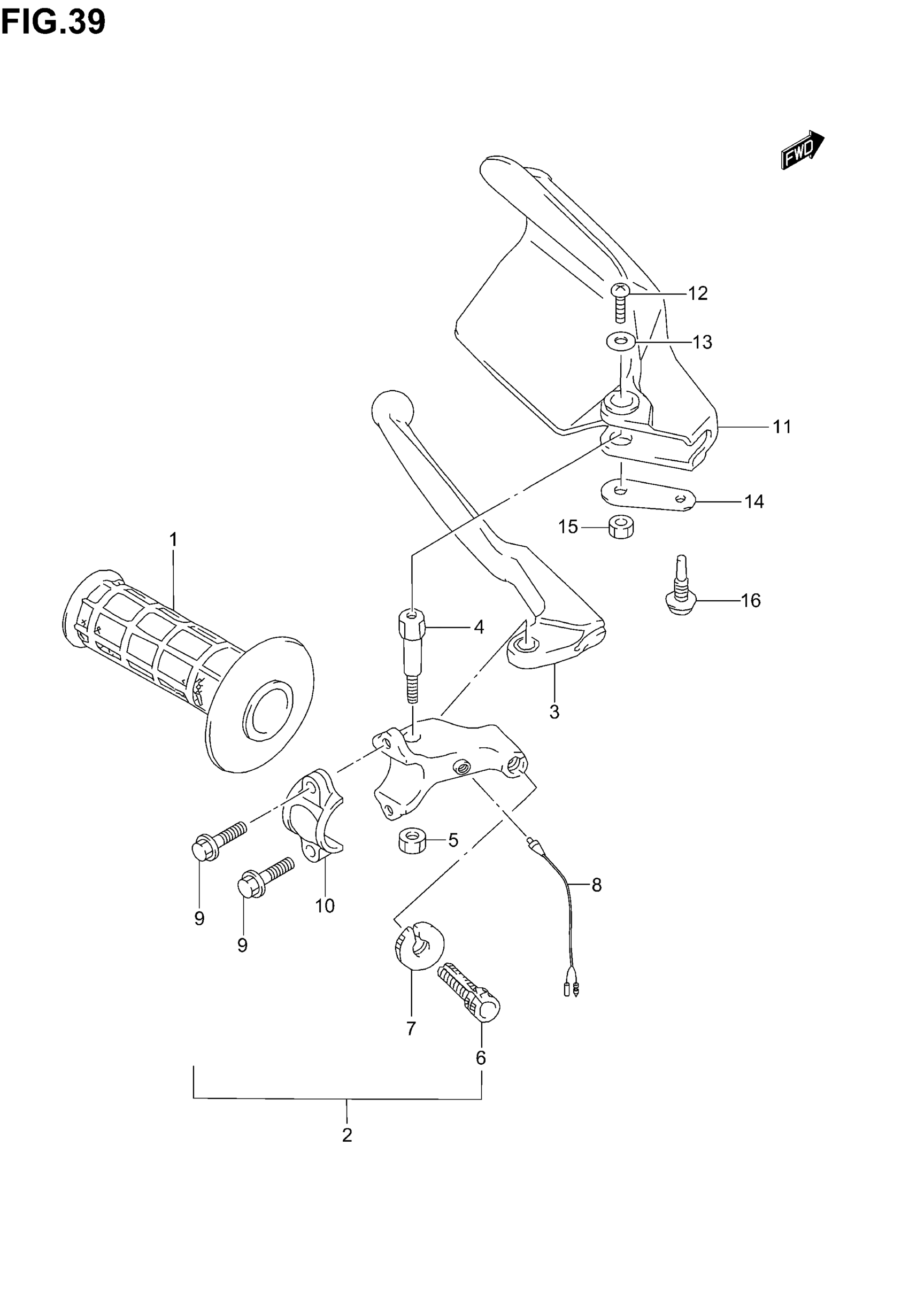

Suzuki DR-Z250 (2005) LH HANDLE LEVER Diagram

#

Description
Price

1

GRIP LH

57211-27C00

$12.28

2

LEVER ASSY,CLUT | Includes Item(s) 3 - 10 This part replaces 57500-13EC0.

57500-13EC3

$46.47

3

.LEVER, CLUTCH

57621-13E00

$13.15

4

BOLT, LEVER PIVOT

57431-13E00

$12.13

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$9.05

7

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

8

SWITCH ASSY, CLUTCH This part replaces 57560-13E00.

57560-13E02

$21.64

9

.BOLT, BRACKET

57513-29F10

$6.23

10

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

$25.63

11

COVER, KNUCKLE LH (BLACK) | MODEL K1

57541-05D01-019

$47.90

11

COVER, KNUCKLE LH (YELLOW) | MODEL K2/K3/K4/K5 This part replaces 57541-05D01-YU1.

57541-05D10-YU1

$47.07

12

SCREW

02142-05107

$1.49

13

WASHER

09160-05043

$2.30

14

PLATE, KNUCKLE COVER LH

57542-05D00

$4.17

15

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

16

SCREW (6X35)

09125-06091

$2.43
