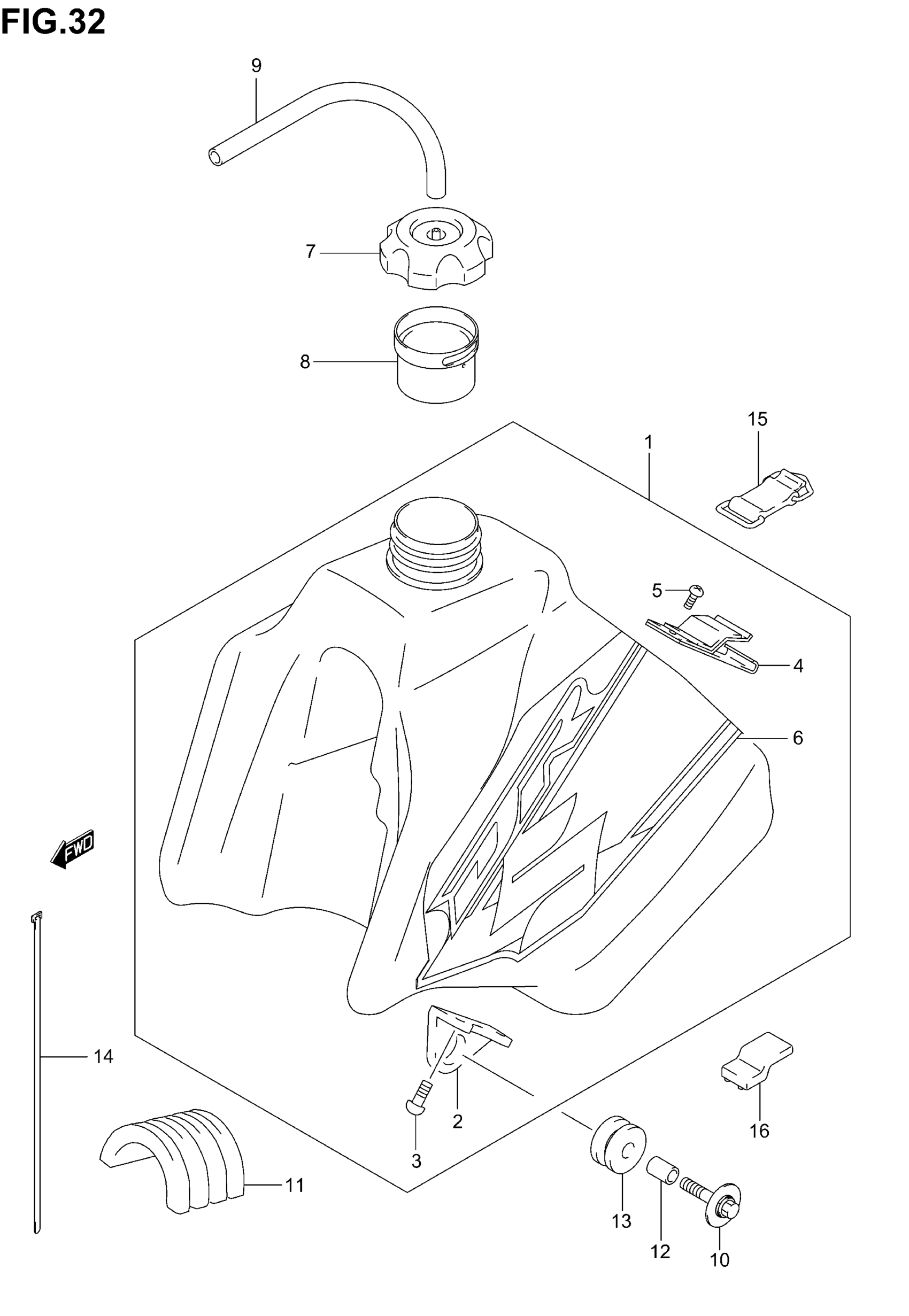

Suzuki DR-Z250 (2005) FUEL TANK (MODEL K1) Diagram

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 44100-13E30-YR1.

44100-13EE0-YR1

Unavailable

BRACKET, FRONT

44131-27C01

$12.63

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

BRACKET, REAR

44150-13E30

Unavailable

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

TAPE SET, FUEL TANK

68110-13EC0-DY9

Unavailable

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

TUBE, FILLER INLET

44199-19A00

$6.28

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

BOLT, FRONT

09118-06112

$3.21

CUSHION, FUEL TANK

44541-13E10

$26.73

SPACER

09180-06268

$2.19

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

CLAMP

09407-30402

$4.11

BAND, REAR

44560-44E00

$13.30

CUSHION, FUEL TANK

44542-13E30

Unavailable
