2005 Suzuki DR-Z250 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2005 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

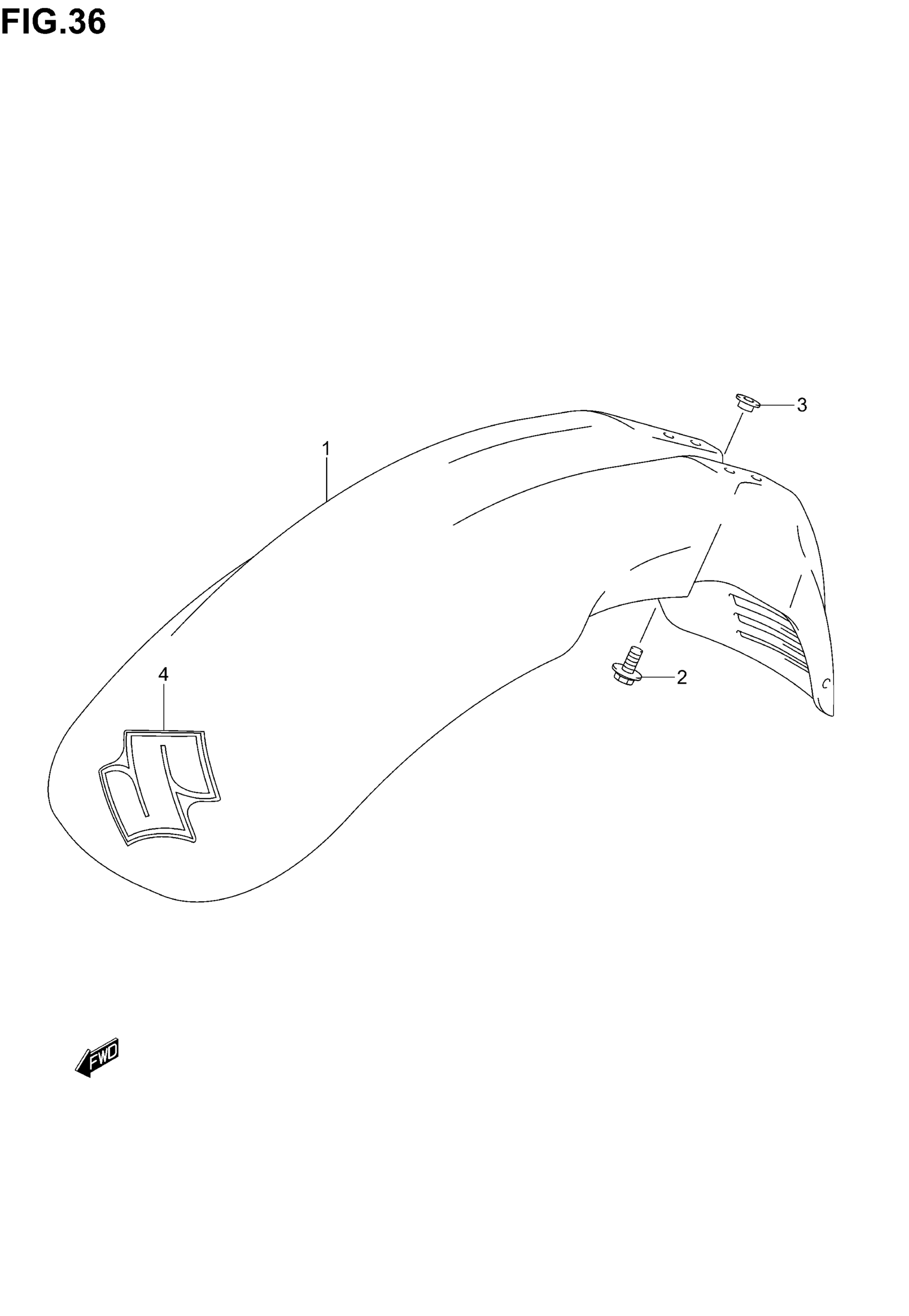

2005 Suzuki DR-Z250 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$151.87

In stock

2

BOLT

09116-06170

4
Out of stock

3

WASHER

09169-06073

4
Out of stock

4

EMBLEM "S" | MODEL K4

68151-08G00-NN3

1

$13.93

In stock

4

EMBLEM "S" | MODEL K5

68151-37F00-AZT

1

$30.92

In stock
