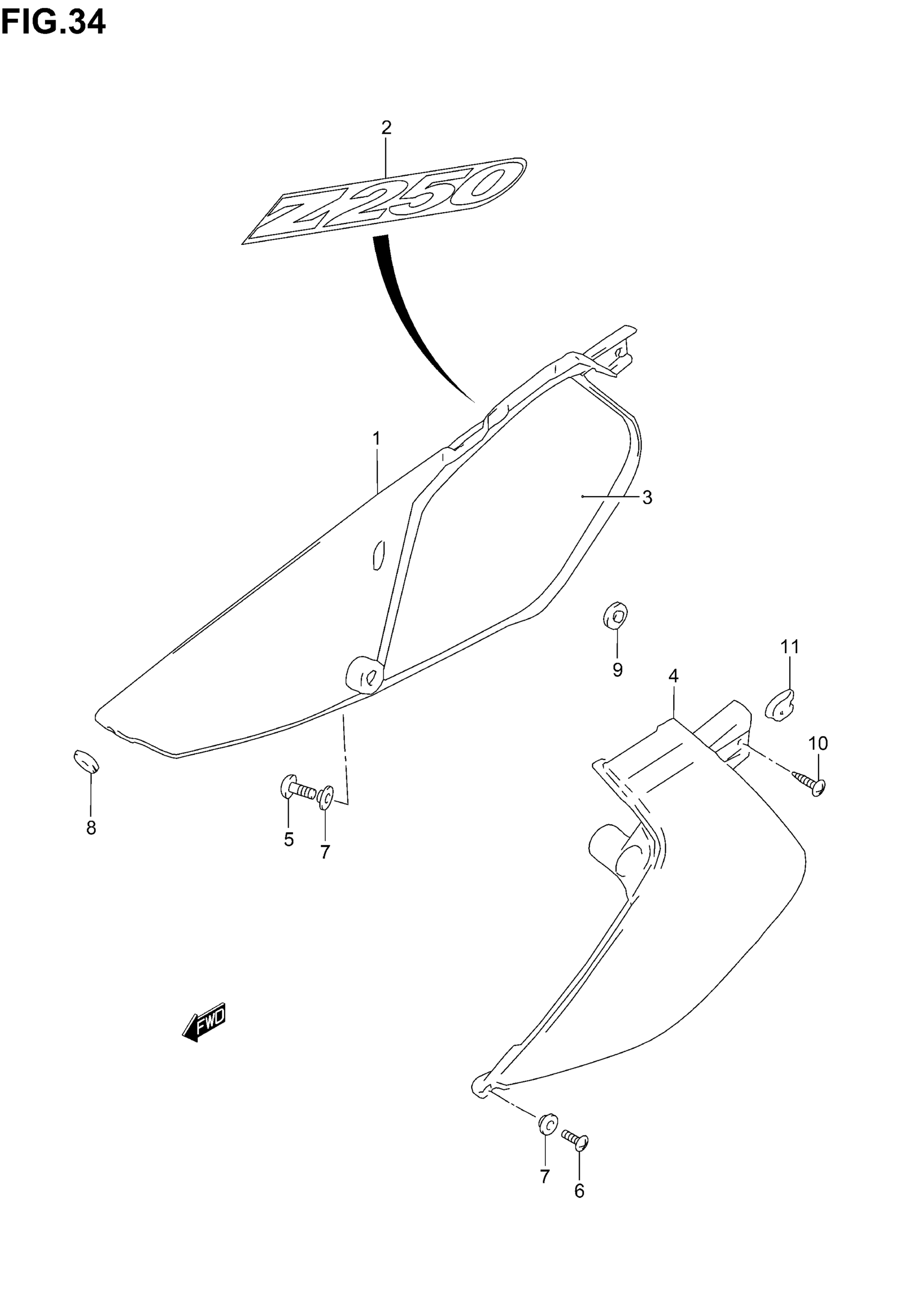

Suzuki DR-Z250 (2005) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (YELLOW) | MODEL K1 This part replaces 47111-13E00-YR1.

47111-13E00-YU1

$108.20

1

COVER, FRAME RH (YELLOW) | MODEL K2

47111-13E00-YU1

$108.20

1

COVER, FRAME RH (WHITE) | MODEL K3/K4/K5

47111-13E00-30H

$106.23

2

NO DESCRIPTION AVAILABLE | MODEL K1 This part replaces 68131-13E10-FR4.

68131-13E11-FR4

Unavailable

3

SHIELD, FRAME COVER RH

47166-13E00

$53.13

4

COVER, FRAME LH (YELLOW) | MODEL K1 This part replaces 47211-13E00-YR1.

47211-13E00-YU1

$73.47

4

COVER, FRAME LH (YELLOW) | MODEL K2

47211-13E00-YU1

$73.47

4

COVER, FRAME LH (WHITE) | MODEL K3/K4/K5

47211-13E00-30H

$70.95

5

SCREW

02142-06127

$1.38

6

SCREW

02142-06167

$1.37

7

WASHER This part replaces 09169-06028.

09169-06041

$1.97

8

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

9

CUSHION

09321-10018

$4.19

10

SCREW This part replaces 03541-15123.

03541-1512B

$2.68

11

NUT This part replaces 09148-05004.

09148-05013

$1.94
