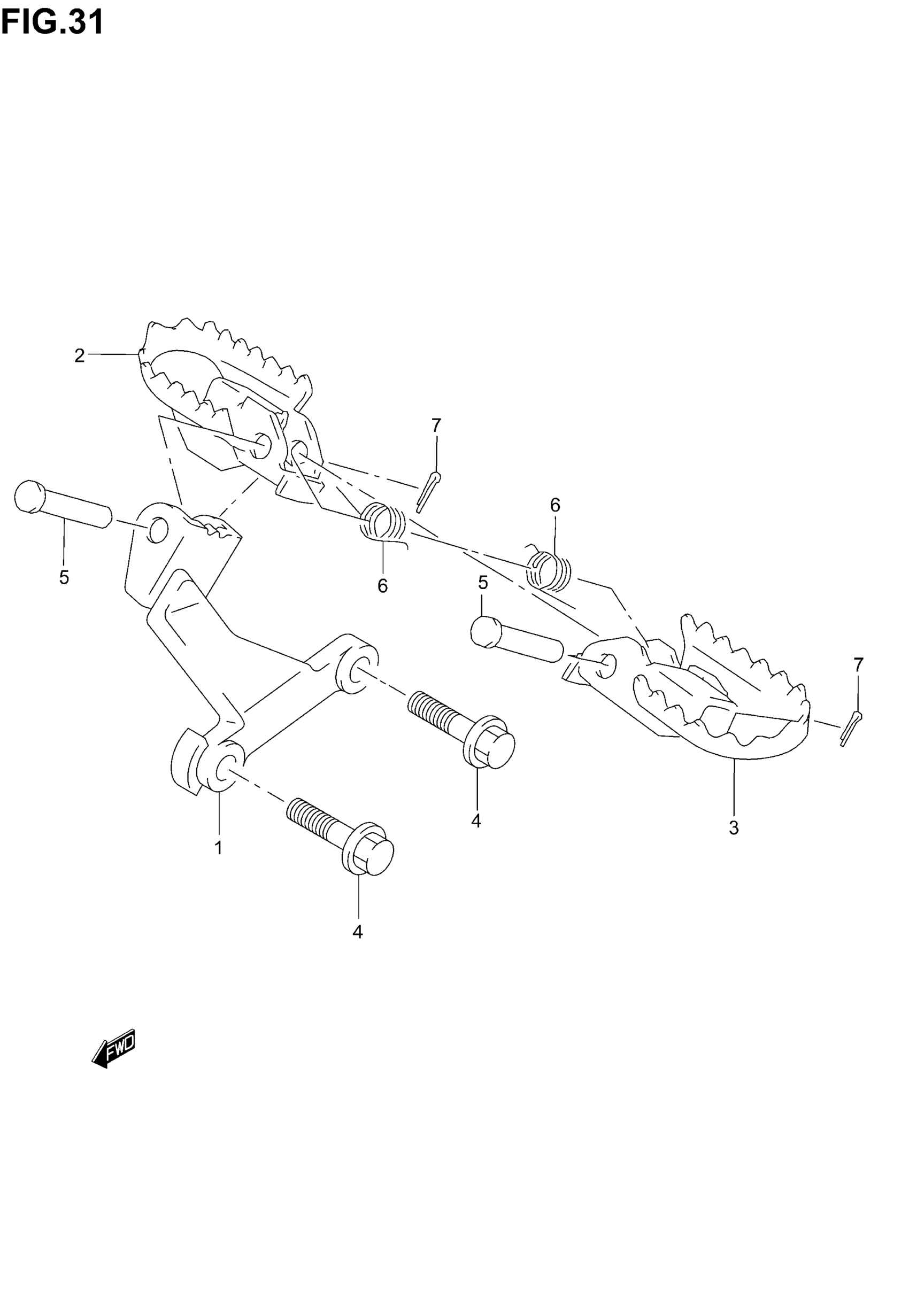

Suzuki DR-Z250 (2005) FOOTREST Diagram

#

Description

Price

1

BRACKET, FOOTREST RH (BLACK) | MODEL K1/K2/K3 This part replaces 43510-14D11-019.

43510-14D12-019

$84.69

1

BRACKET, FOOTREST RH (BLACK) | MODEL K4/K5

43510-14D12-019

$84.69

2

FOOTREST, FR RH (BLACK) This part replaces 43550-14D30.

43550-03B00-019

$40.88

3

FOOTREST, FR LH (BLACK) This part replaces 43560-14D30.

43560-03B00-019

$41.68

4

BOLT

09103-10245

$6.67

5

PIN

09200-10013

$2.66

6

SPRING

09448-15004

$2.34

7

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
