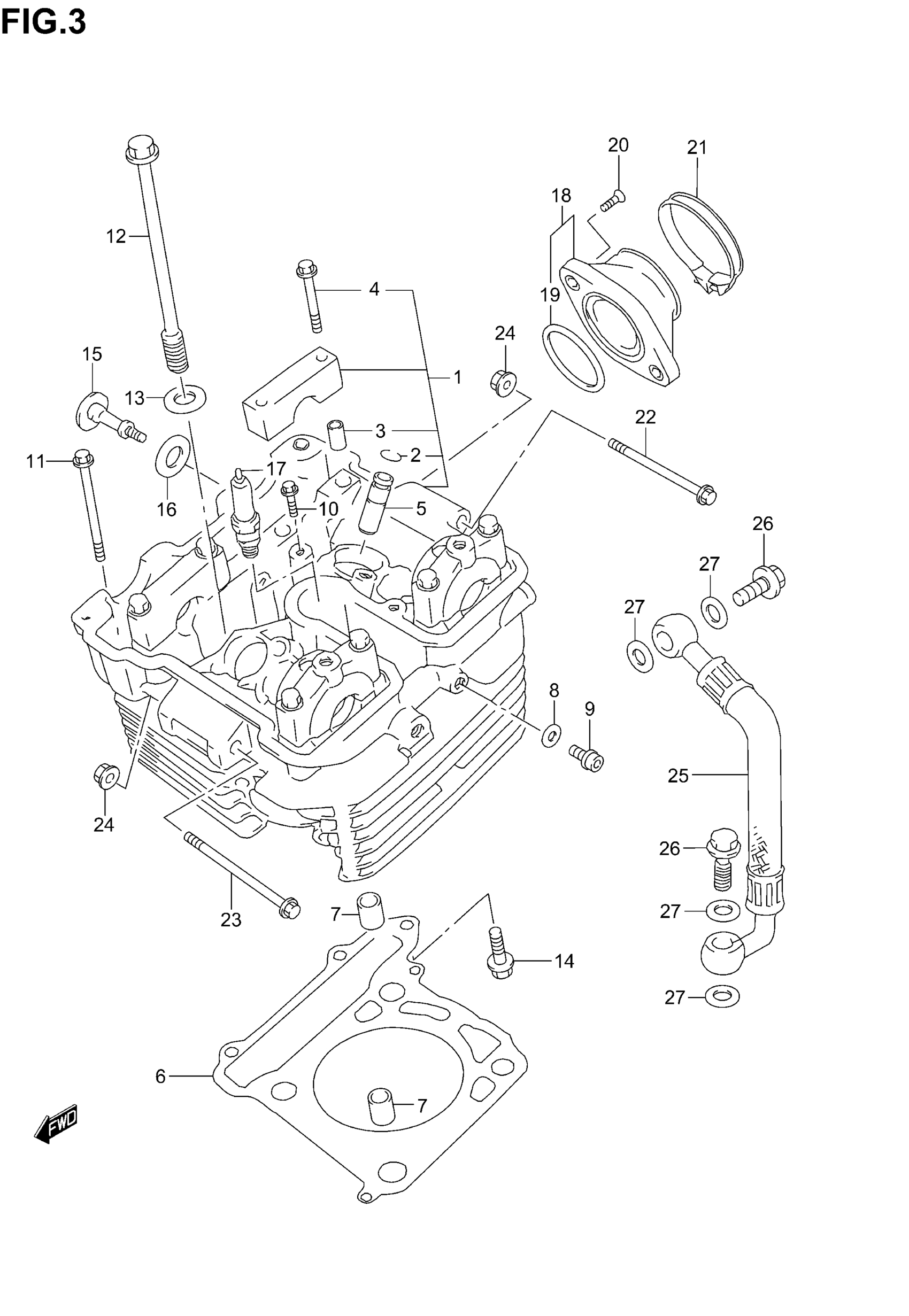

Suzuki DR-Z250 (2005) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL K1/K2/K3

11100-13E01

Unavailable

1

HEAD ASSY, CYLINDER | MODEL K4/K5; Includes Item(s) 2 - 4

11100-13E10

Unavailable

2

.RING (10X85)

09381-10004

$1.50

3

PIN (6.2X8X11)

09206-08001

$1.78

4

BOLT (6X45)

09103-06165

$3.03

5

GUIDE, VALVE (OS:0.3) | OPT

11115-33D71

$40.73

6

GASKET, CYLINDER HEAD

11141-13E00

$44.50

7

PIN

04211-13189

$2.19

8

GASKET (5.8X13X1.2)

09168-06023

$2.35

9

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

10

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

11

BOLT (6X70)

09103-06103

$2.53

12

BOLT (10X160)

09103-10272

$15.32

13

.GASKET (10.2X20X2.3)

09168-10031

$2.03

14

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

15

BOLT, CYLINDER HEAD SIDE FACE

11161-33E00

$9.89

16

WASHER, HEAD COVER

11191-13E00

$4.54

17

PLUG SPARK (CR9E)

09482-00458

$6.47

17

SPARK PLUG (DENSO,U27ESR-N)

09482-00459

$6.09

17

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$6.73

17

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

$6.47

17

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$6.09

17

SPARK PLUG (DENSO,U31ESR-N) | OPT

09482-00461

$12.62

18

PIPE ASSY, INTAKE | E3,E28

13101-13E01

$61.70

18

PIPE ASSY, INTAKE | E33; Includes Item(s) 19

13101-13E20

$62.88

19

O RING (D:1.9,ID:40.7)

09280-41007

$9.04

20

SCREW (6X16)

09126-06014

$2.06

21

CLAMP | E3,E28

09402-52208

$5.36

21

CLAMP | E33

09402-48208

$4.64

22

BOLT (8X60)

09103-08217

$3.72

23

BOLT (8X70)

09103-08099

$5.57

24

NUT This part replaces 08319-31088.

08319-3108A

$2.32

25

HOSE, TRANSMISSION OIL OUTER

16480-13E00

Unavailable

26

UNION BOLT This part replaces 09360-10032.

09360-10055

$4.83

27

GASKET (10.1X16X1)

09168-10007

$1.71
