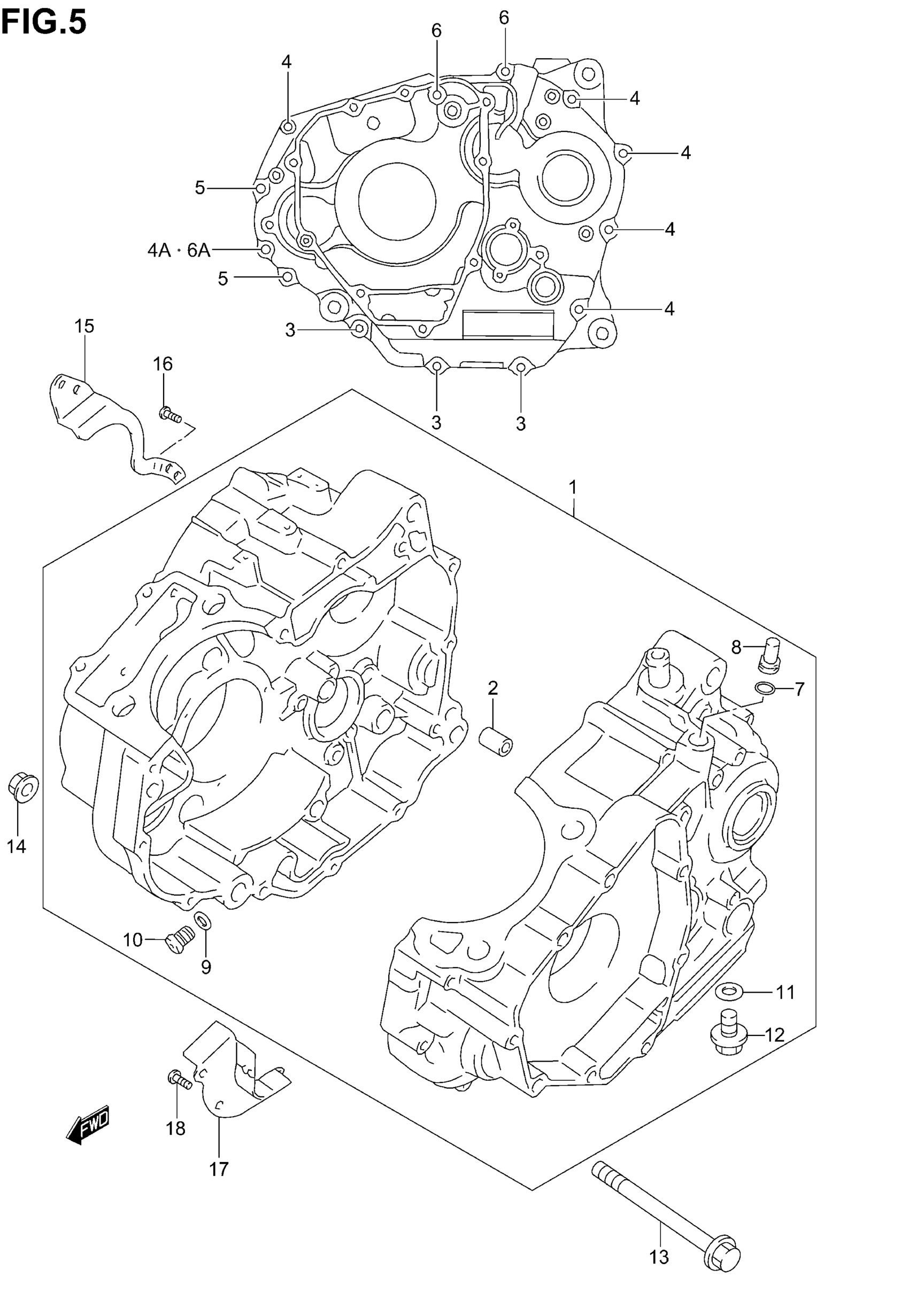

Suzuki DR-Z250 (2005) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K1/K2 This part replaces 11301-13833.

11301-13835

Unavailable

1

CRANKCASE SET | MODEL K3 This part replaces 11301-13834.

11301-13835

Unavailable

1

CRANKCASE SET | MODEL K4/K5; Includes Item(s) 2 - 12 This part replaces 11301-13840.

11301-13841

Unavailable

2

PIN, IDLE GEAR NO.2 (L:27)

09202-10006

Unavailable

3

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

4

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

4A

BOLT | MODEL K3/K4/K5 This part replaces 01547-06503.

01547-0650B

$2.75

5

BOLT, RECTIFIER | MODEL K1/K2 This part replaces 07120-06503.

07120-0650B

$3.70

5

BOLT | MODEL K3/K4/K5 This part replaces 01547-06503.

01547-0650B

$2.75

6

BOLT This part replaces 01547-06653.

01547-0665B

$3.18

6A

GASKET, CRANKCASE BOLT | MODEL K3/K4/K5

09168-06023

$2.35

7

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

8

JET

09493-24012

Unavailable

9

GASKET (10X14X3.6)

09168-10002

$2.13

10

PLUG

09248-10010

$4.17

11

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

12

PLUG

09247-12106

$2.73

13

BOLT (10X100)

09103-10242

$8.50

14

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

15

PLATE, BREATHER OIL RETURN

11317-13E10

Unavailable

16

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

17

SEPARATOR, CRANKCASE OIL | MODEL K1/K2 This part replaces 11323-13E00.

11323-13E01

Unavailable

17

SEPARATOR, CRANKCASE OIL | MODEL K3/K4/K5

11323-13E01

Unavailable

18

SCREW (6X12)

09125-06086

$2.77
