2005 Suzuki DR-Z250 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2005 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

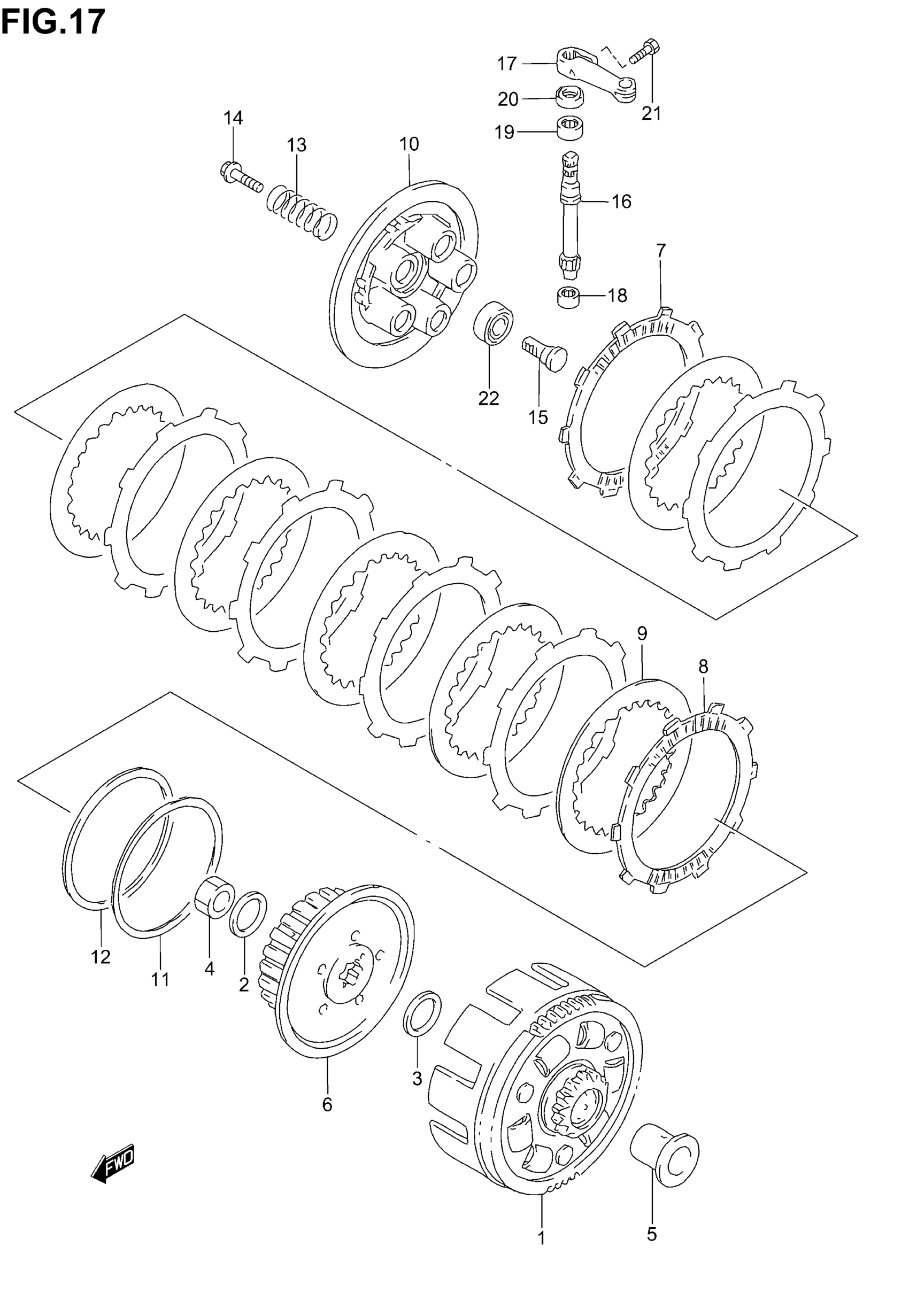

2005 Suzuki DR-Z250 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | NT:65/15

21200-13E00

1
Out of stock

2

WASHER

09164-20007

1
Out of stock

3

THRUST WASHER

08211-20363

1
Out of stock

4

NUT

09140-20012

1
Out of stock

5

SPACER, PRIMARY DRIVEN GEAR

21251-13E00

1
Out of stock

6

HUB, CLUTCH SLEEVE

21410-13E00

1
Out of stock

7

PLATE, CLUTCH SLEEVE

21441-31E60

6
Out of stock

8

PLATE, CLUTCH DRIVE

21442-31E00

1
Out of stock

9

PLATE, CLUTCH DRIVEN

21451-13E10

6
Out of stock

10

DISC, CLUTCH PRESSURE This part replaces 21462-13E00.

21462-42E00

1
Out of stock

11

SEAT, WAVE WASHER

21471-13E00

1
Out of stock

12

WASHER, CLUTCH PLATE

21472-13E00

1
Out of stock

13

SPRING, CLUTCH

21481-13E00

5
Out of stock

14

BOLT, CLUTCH SPRING

21482-13E00

5
Out of stock

15

RACK, CLUTCH RELEASE

23165-13E00

1
Out of stock

16

PINION, CLUTCH RELEASE

23261-27C10

1
Out of stock

17

ARM, CLUTCH RELEASE | MODEL K1/K2 This part replaces 23271-20901.

23271-20902

1
Out of stock

17

ARM, CLUTCH RELEASE | MODEL K3/K4/K5

23271-20902

1
Out of stock

18

BEARING (9X13X10)

09263-09001

1
Out of stock

19

BEARING (12X16X10)

09263-12024

1
Out of stock

20

OIL SEAL (10X17X5)

09285-10004

1
Out of stock

21

BOLT This part replaces 01500-06163.

01500-0616A

1
Out of stock

22

BEARING (12X28X8)

09262-12001

1
Out of stock
