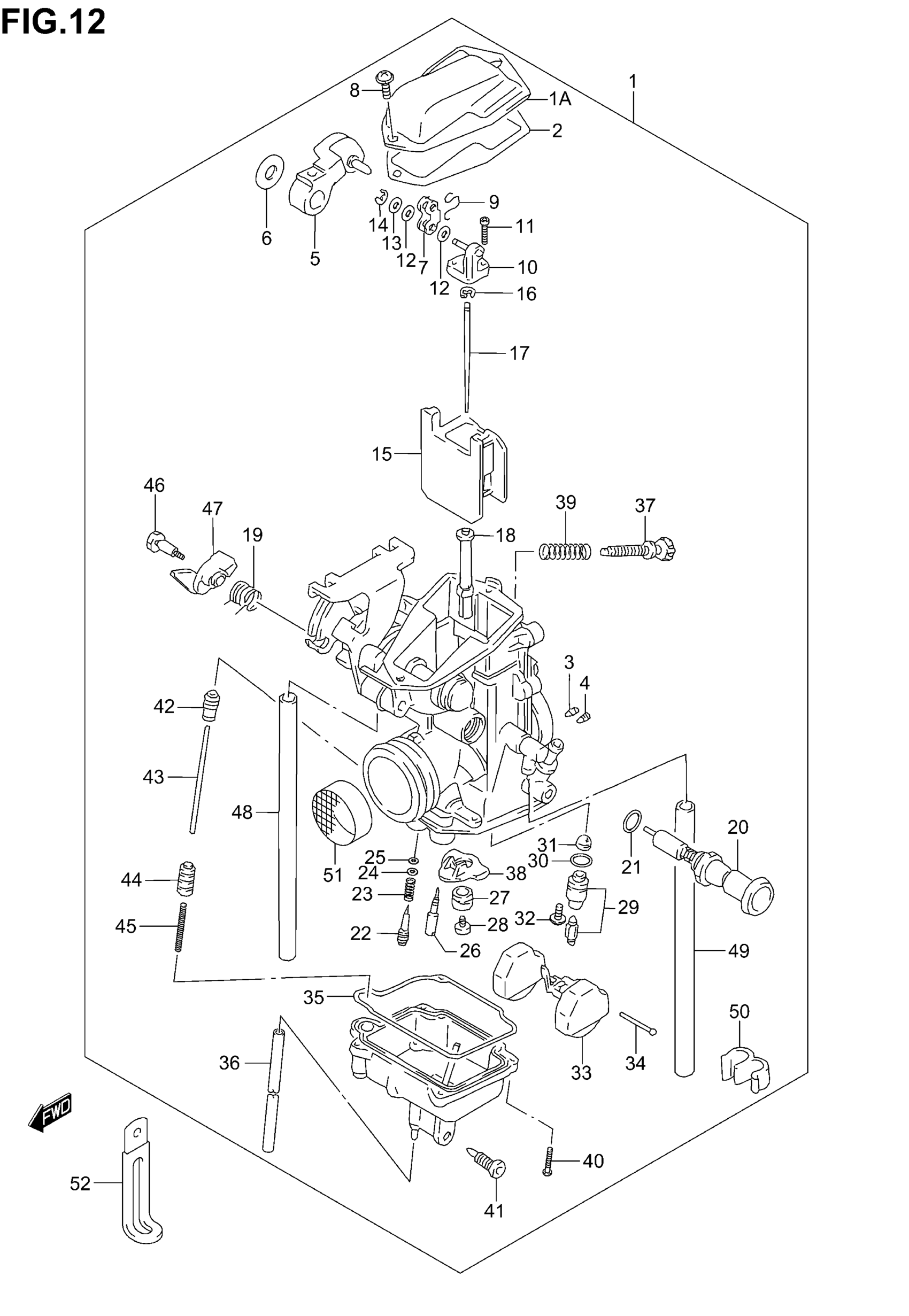

Suzuki DR-Z250 (2005) CARBURETOR (E3/E28) Diagram

#

Description
Price

1

CARBURETOR ASSY | Includes Item(s) 1A - 51

13200-13E30

$758.90

1A

COVER, TOP

13261-13E00

Unavailable

2

GASKET

13266-27A00

$6.55

3

JET, AIR (1.2)

09493-24007

$16.15

4

JET, AIR (1.6)

09493-32003

$16.87

5

LEVER SET, THROTTLE

13541-13E00

Unavailable

6

WASHER

13575-38200

Unavailable

7

PLATE

13447-14A00

Unavailable

8

SCREW This part replaces 02112-34103.

02112-3410A

$2.20

9

CLIP ASSY

13446-13E00

Unavailable

10

CONNECTOR

13398-27A02

Unavailable

11

SCREW This part replaces 02112-03123.

02112-0312B

Unavailable

12

GASKET

13445-14A00

$3.30

13

WASHER (4.5X8X0.5)

09160-04024

Unavailable

14

E RING

13415-38300

$2.08

15

VALVE, PISTON | 1.5

13551-13E30

Unavailable

16

.E-RING

13394-40D20

$5.45

17

NEEDLE, JET | 6FN3-3

13383-13E30

Unavailable

18

JET, NEEDLE (P-6M)

13341-13E30

$50.87

19

SPRING

13494-14D00

$8.83

20

PLUNGER ASSY

13411-42A20

$38.78

21

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

22

SCREW, PILOT | 1 1/4

13279-13E30

$16.87

23

.SPRING (NT:45)

13268-47070

$4.34

24

WASHER

13291-29900

$1.98

25

O-RING This part replaces 13295-29900.

13295-29901

$4.34

26

JET, PILOT (37.5)

09492-37002

$18.02

27

RING

13331-13A00

$6.17

28

JET, MAIN (127.5)

09491-25011

$11.38

29

VALVE ASSY, NEEDLE

13370-05530

$71.40

30

O RING

13374-35C00

$5.99

31

FILTER

13376-19F00

$10.28

32

SCREW

13602-43410

$2.92

33

FLOAT

13250-28A00

$30.87

34

PIN, FLOAT

13254-92311

$2.07

35

O RING

13251-27A00

$9.03

36

.HOSE (3X5X600) | L:600¨200 * This part replaces 09352-30503-600.

09352-30504-600

$4.91

37

ADJUSTER

13267-13D01

Unavailable

38

RING

13331-13E00

$5.99

39

SPRING

13268-13E00

Unavailable

40

SCREW

13602-48B10

$3.43

41

SCREW, DRAIN

13247-02340

$4.99

42

BOOT

13499-44500

$12.57

43

ROD

13487-14A00

$10.88

44

PLUNGER

13493-27A00

$8.95

45

SPRING

13271-09400

$4.37

46

BOLT

13613-14A00

$8.83

47

LEVER

13490-14A00

$8.77

48

.HOSE | L:600¨225 * This part replaces 09352-50903-600.

09352-50006-600

$7.48

49

.HOSE | L:600¨200 * This part replaces 09352-50903-600.

09352-50006-600

$7.48

50

CLIP

09408-00033

$2.83

51

NET, INTAKE

13130-19B00

$21.58

52

CLAMP | MODEL K1/K2/K3/K4 This part replaces 09404-06432.

09404-06039

$1.74

52

CLAMP | MODEL K5

09404-06429

$1.83
