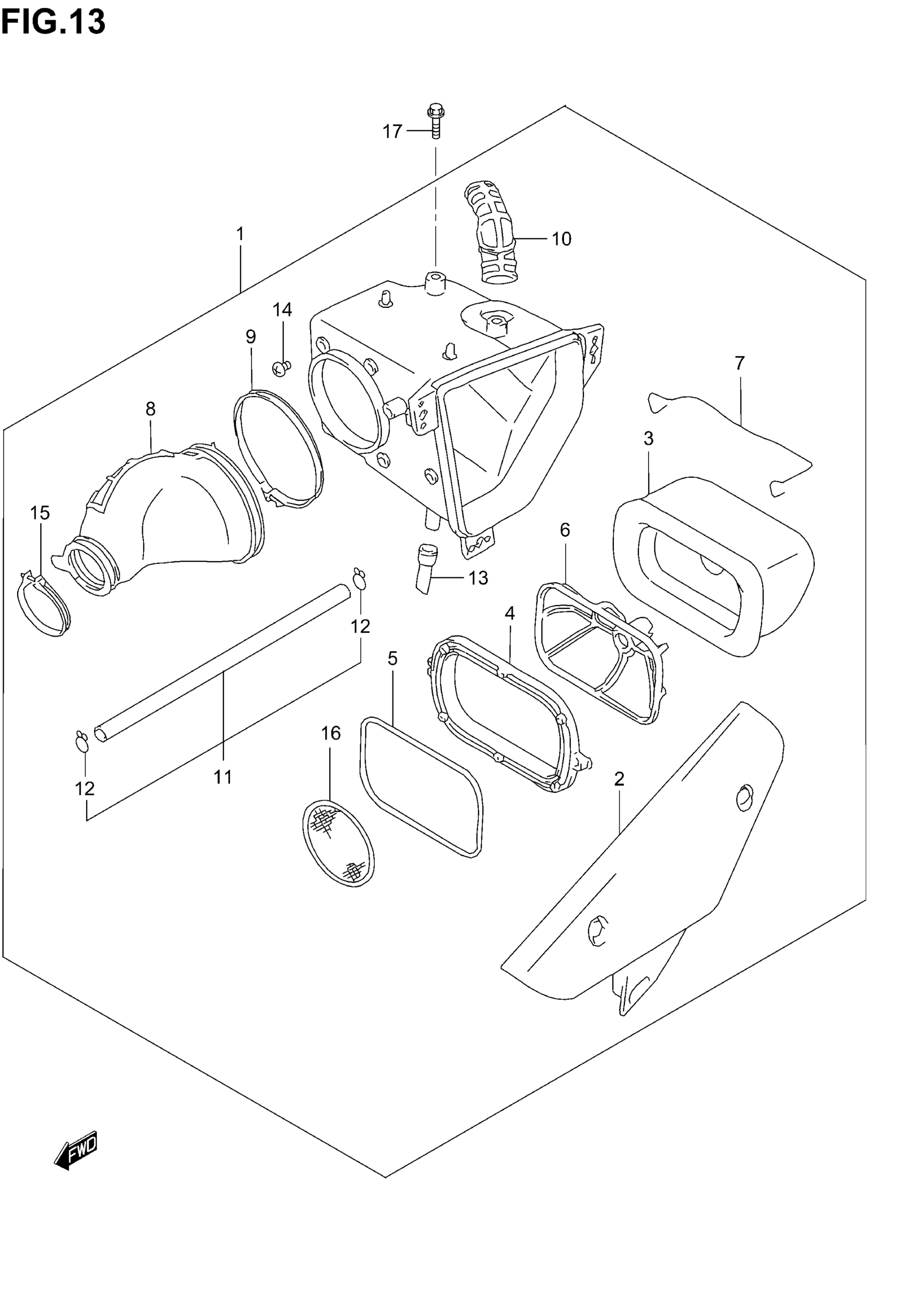

Suzuki DR-Z250 (2005) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL K1/K2 E3/E28

13700-13E30

Unavailable

1

CLEANER ASSY, AIR | MODEL K1/K2 E33

13700-13E40

Unavailable

1

CLEANER ASSY, AIR | MODEL K3/K4/K5 E3/E28 This part replaces 13700-13E30-30H.

13700-13E30

Unavailable

1

CLEANER ASSY, AIR | MODEL K3/K4/K5 E33; Includes Item(s) 2 - 16

13700-13E40-30H

Unavailable

2

CAP,CLEANER(YEL | MODEL K1/K2 This part replaces 13740-13E01-YR1.

13740-13E01-YU1

Unavailable

2

CAP, CLEANER | MODEL K3/K4/K5

13740-13E00

$160.78

3

FILTER

13780-13E00

$54.23

4

BASE, FILTER

13799-13E00

$31.05

5

GASKET

13795-13E00

$5.50

6

HOLDER, FILTER

13791-13E01

$17.02

7

SPRING

13820-13E00

$17.90

8

TUBE, OUTLET | E3/E28

13881-13E00

$82.35

8

TUBE, OUTLET | E33

13881-13E20

$83.92

9

CLAMP

13826-43B00

$9.46

10

TUBE, INLET

13891-13E30

Unavailable

11

TUBE, BREATHER

13850-13E30

Unavailable

12

CLIP

09401-14301

$2.35

13

.CAP, DRAIN This part replaces 13681-19B00.

13681-19B01

$6.63

14

SCREW, FRONT This part replaces 03242-05103.

03241-0510A

$1.49

15

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

16

TRAP, FRAME

13810-14D02

$11.63

17

BOLT This part replaces 01580-06123.

01580-0612A

$2.32
