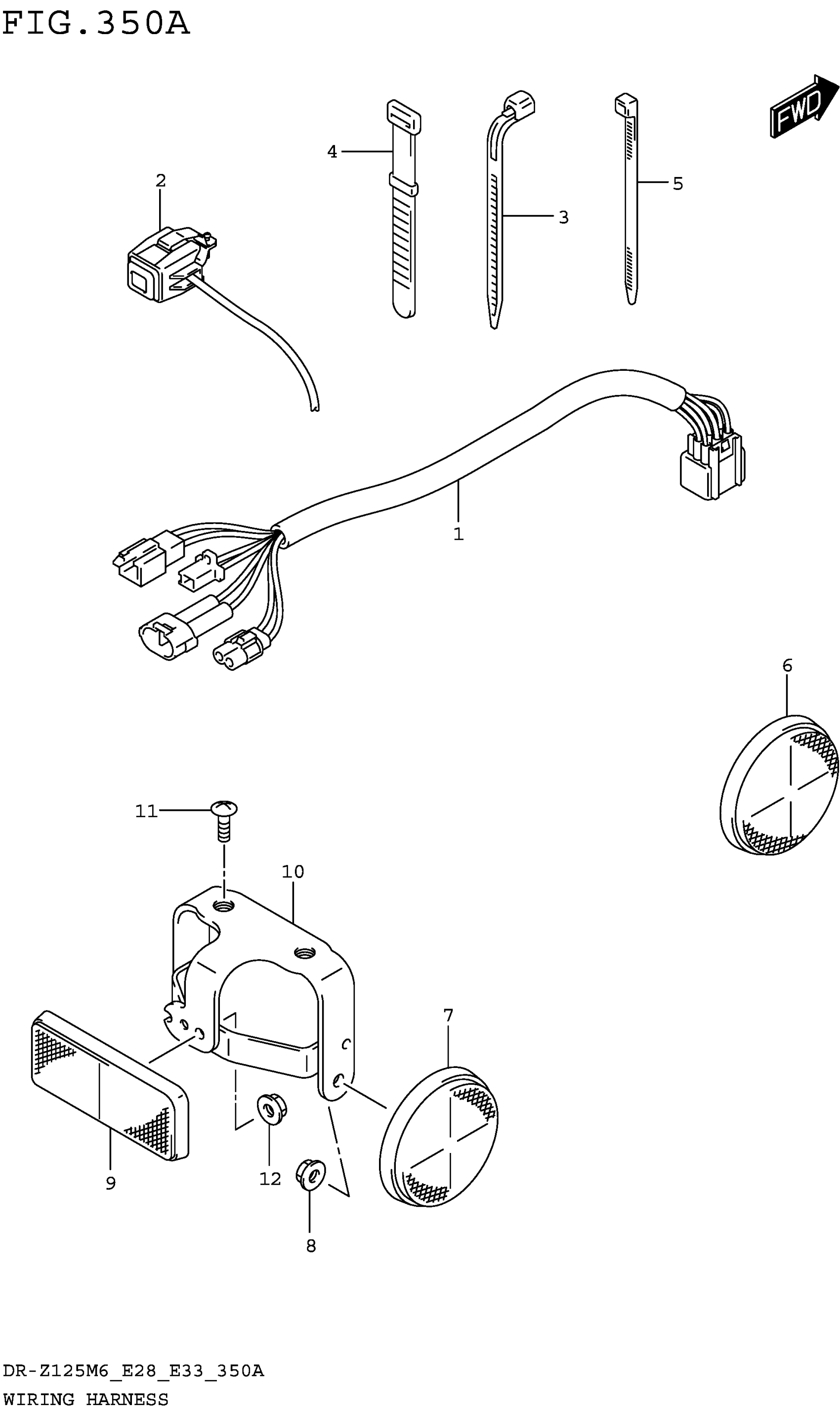

Suzuki DR-Z125LM6(E28) (2026) WIRING HARNESS (E28) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-08G01

$59.98

2

SWITCH ASSY, ENGINE STOP

37820-08G00

$61.58

3

CLAMP (L:165)

09407-18402

$2.19

4

CLAMP (L:120)

09407-12402

$3.04

5

CLAMP (L:145)

09407-14407

$3.57

6

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

7

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

8

NUT

08316-1005A

$2.19

9

REFLECTOR ASSY,RR

35970-07F01

$20.88

10

BRACKET, SIDE & RR REFL

35974-08G10

Unavailable

11

SCREW

02142-0612A

$1.49

12

NUT

08316-1005A

$2.19
