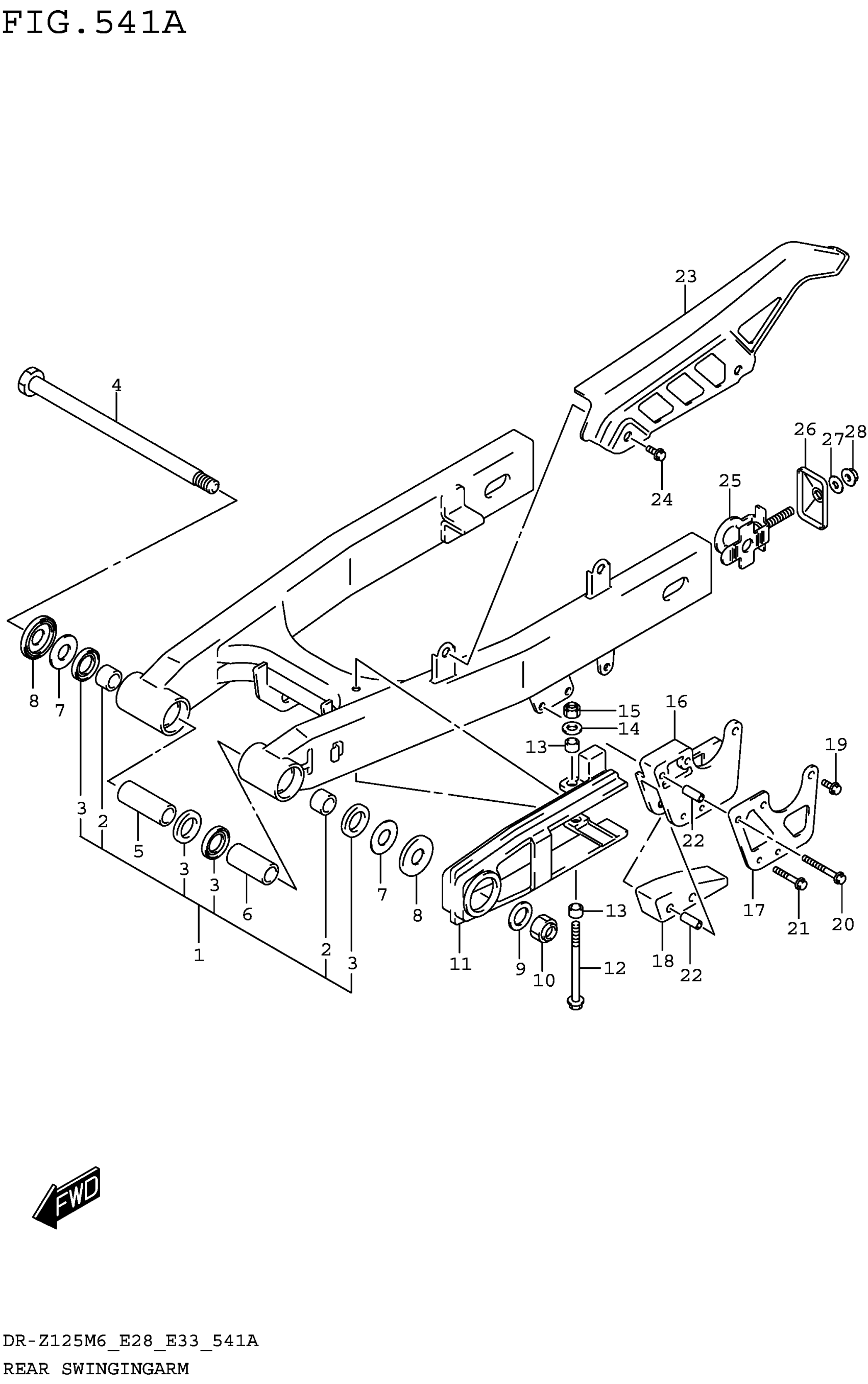

Suzuki DR-Z125LM6(E28) (2026) REAR SWINGINGARM (DR-Z125) Diagram

#

Description
Price

1

SWGARM ASSY, REAR (SILVER)

61000-08G10-13L

$533.38

2

.BUSHING, RR SWGARM PIVOT

61261-13700

$16.28

3

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

4

SHAFT, RR SWINGINGARM PIVOT

61211-44A11

$37.12

5

SPACER, RR SWGARM PIVOT RH

61251-08G00

$26.48

6

SPACER, RR SWGARM PVT

61251-42A00

$23.07

7

WASHER

08211-14321

$3.85

8

SEAL, DUST

61262-40401

$5.93

9

WASHER (14.5X24X2.3)

09160-14057

$3.15

10

NUT

09159-14019

$11.61

11

BUFFER, CHAIN TOUCH DEFENSE

61273-08G01

$23.43

12

BOLT

01560-0665B

$3.72

13

SPACER (6.5X9X6.5)

09180-06257

$2.83

14

WASHER

08322-0106B

$2.26

15

NUT

08319-2106B

$2.32

16

GUIDE, CHAIN

61343-02B40

$41.68

17

PLATE, GUIDE CHAIN OUTER

61342-02B40

$33.93

18

DEFENSE, CHAIN GUIDE

61348-08G01

$15.43

19

BOLT

01547-0616A

$2.03

20

BOLT

01547-0630A

$2.32

21

BOLT

01547-0640A

$2.32

22

SPACER (6.5X10X23.5)

09180-06333

$2.83

23

CASE, CHAIN

61311-01A03

$63.38

24

BOLT (6X10)

09116-06096

$2.26

25

ADJUSTER, CHAIN

61410-08G00

$26.21

26

PLATE, CHAIN ADJUSTER

61421-38200

$5.21

27

WASHER (12.5X26X2.3)

09160-12085

$2.60

28

NUT

08319-3108A

$2.32
