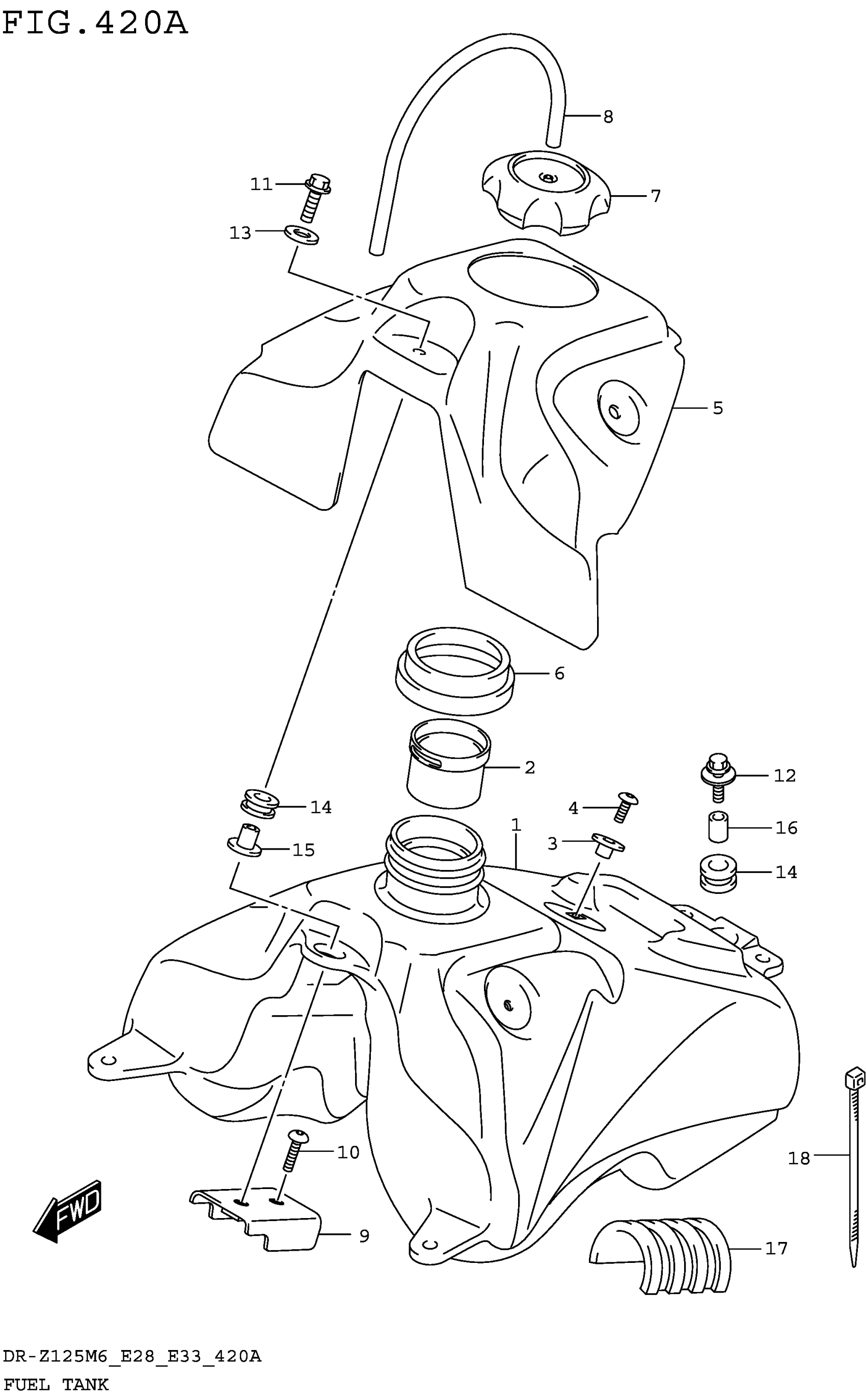

Suzuki DR-Z125LM6(E28) (2026) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL This part replaces 44110-08GB0.

44110-08GA0

$499.87

2

TUBE, FILLER INLET

44199-19A00

$6.28

3

HOOK, SEAT FR

44132-27C01

$17.17

4

BOLT (6X20)

09139-06148

$4.17

5

COVER, FUEL TANK UPR

44291-08GA0

Unavailable

6

RUBBER, FUEL TANK INLET

44261-14H01

$10.25

7

CAP ASSY, FUEL TANK FILLER

44200-29F01

$38.33

8

HOSE (5X8.2X360)

09352-50005-360

$6.38

9

BRACKET, FUEL TANK UPR

44521-08GA0

$6.18

10

SCREW (6X10)

09139-06172

$3.04

11

BOLT

01547-0630A

$2.32

12

BOLT (6X25)

09116-06186

$2.61

13

WASHER

09169-06016

$1.65

14

CUSHION, FUEL TANK

44511-08G11

$6.10

15

WASHER, FUEL TANK FR

44512-23H00

Unavailable

16

SPACER (6.5X10X14)

09180-06293

$2.58

17

CUSHION, FUEL TANK

44541-13E10

$26.73

18

CLAMP (L:300)

09407-30402

$4.11
