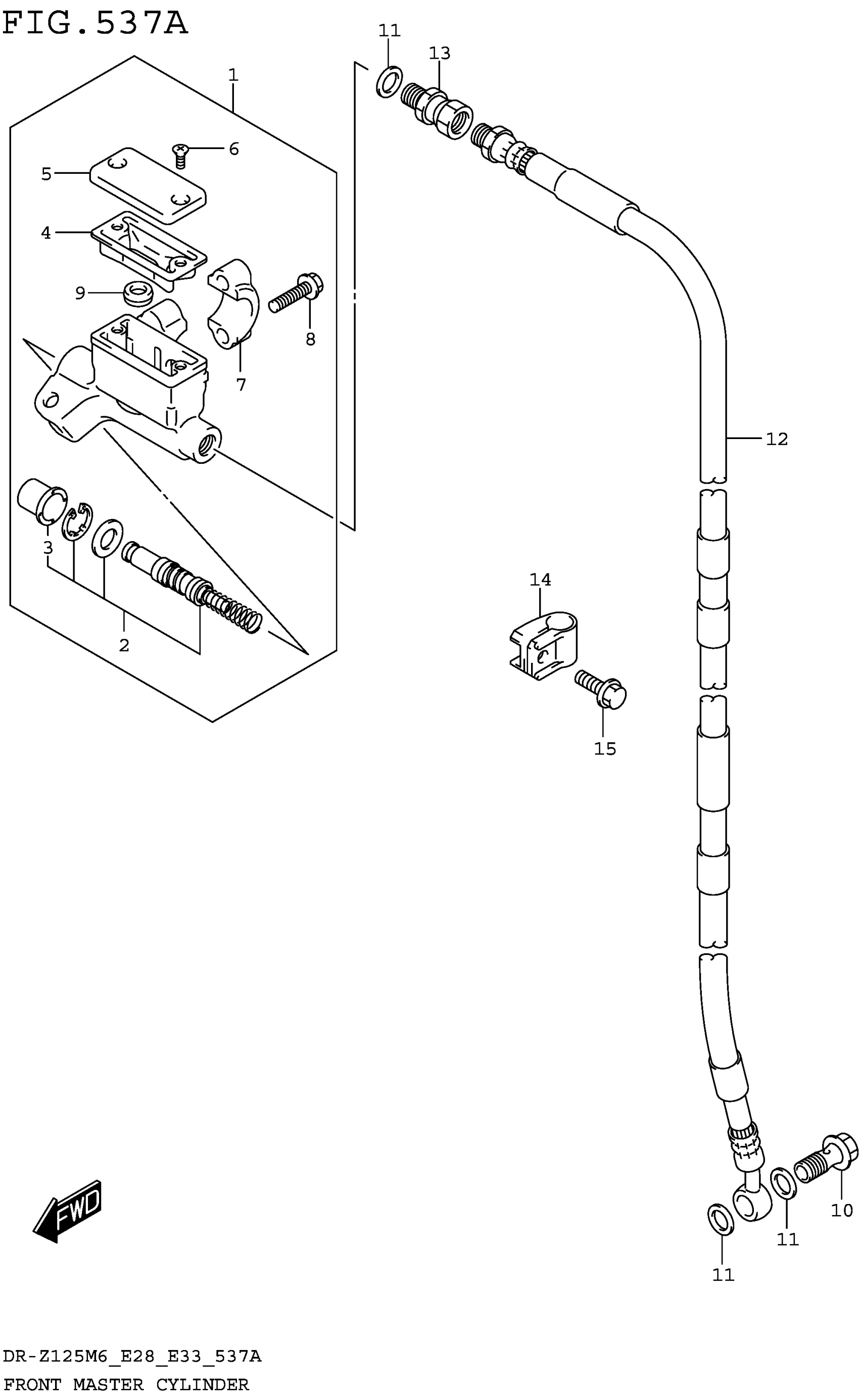

Suzuki DR-Z125LM6(E28) (2026) FRONT MASTER CYLINDER (DR-Z125L) Diagram

#

Description
Price

1

CYLINDER ASSY, FR MASTER

59600-27C10

$258.98

2

.PISTON & CUP SET

59600-27820

$68.80

3

..BOOT

59666-44300

$5.30

4

.DIAPHRAGM

59667-14500

$9.53

5

.CAP

69669-44E00

$26.03

6

.SCREW

69689-49300

$1.81

7

.HOLDER

59671-27C00

$19.22

8

.BOLT

59675-27C00

$3.34

9

.SEPARATOR

59748-14500

$13.40

10

UNION (10X1.25X22)

09360-10062

$5.81

11

WASHER (10X15X1.5)

09161-10009

$1.83

12

HOSE, FRONT BRAKE

59480-08G03

$131.60

13

ADAPTER, BRAKE HOSE

59290-14501

$40.83

14

CLAMP, FR BRAKE

59243-03B01

$7.48

15

BOLT

01547-0616A

$2.01
