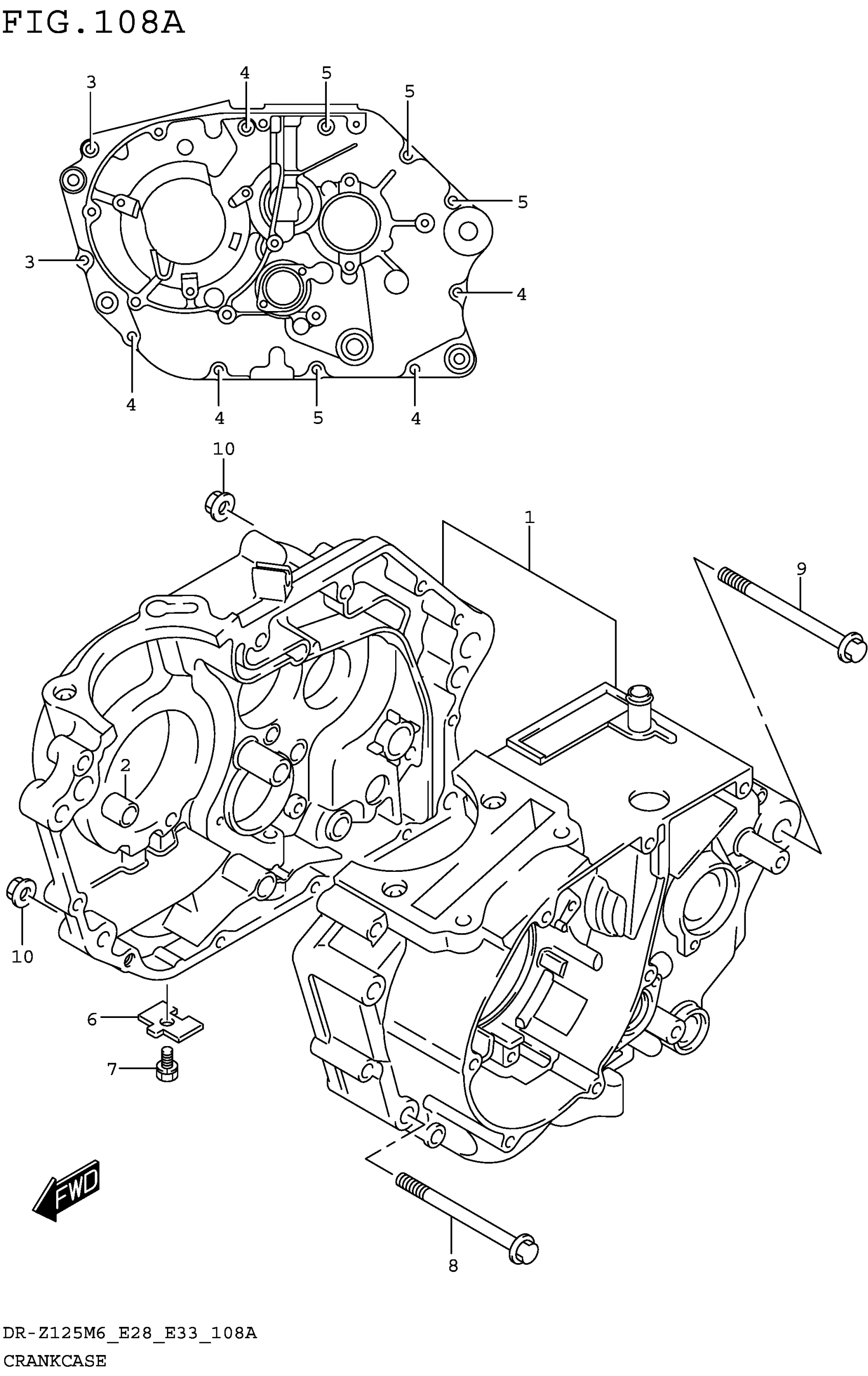

Suzuki DR-Z125LM6(E28) (2026) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

11300-08G20

Unavailable

2

PIN (10.4X13X18)

04211-13189

$2.19

3

BOLT

01547-0645A

$2.43

4

BOLT

01547-0660A

$2.80

5

BOLT

01547-0675A

$3.67

6

.PLATE, OIL GALLEY PLUG

11319-05200

$3.80

7

.BOLT

01500-0610A

$2.43

8

BOLT (8X80)

09103-08016

$32.38

9

BOLT (8X88)

09103-08010

$34.43

10

NUT

08319-3108A

$2.31
