Description

Price

1

COVER, FUEL TANK RH (YELLOW)

44271-08GA0-YU1

$57.33

2

COVER, FUEL TANK LH (YELLOW)

44281-08GA0-YU1

$57.33

3

TAPE SET, FUEL TANK COVER RH | UE,WHITE,BLACK,ORANGE,YELLOW) BLUE,WHITE,BLACK,YELLOW

68110-08GC0-BLH

$35.47

4

TAPE SET, FUEL TANK COVER LH | UE,WHITE,BLACK,ORANGE,YELLOW) BLUE,WHITE,BLACK,YELLOW

68120-08GC0-BLH

$35.47

5

.CUSHION (20X40X3)

44294-14H00

$3.33

6

BRACKET, FUEL TANK FR

44160-08GA0

Unavailable

7

BOLT (6X25)

09116-06186

$2.61

8

SPACER (6.5X9X13.5)

09180-06268

$2.19

9

CUSHION,FUEL TANK SIDE

44512-04F01

$3.86

10

CLIP (7.6X25.7)

09409-08308

$2.26

11

BOLT

01547-0616A

$2.03

12

WASHER

09169-06081

$3.68

13

WASHER (6.3X16X1)

09169-06053

$1.49

14

MOLDING, FRONT This part replaces 13623-48B00.

68241-04X50-300

$7.32

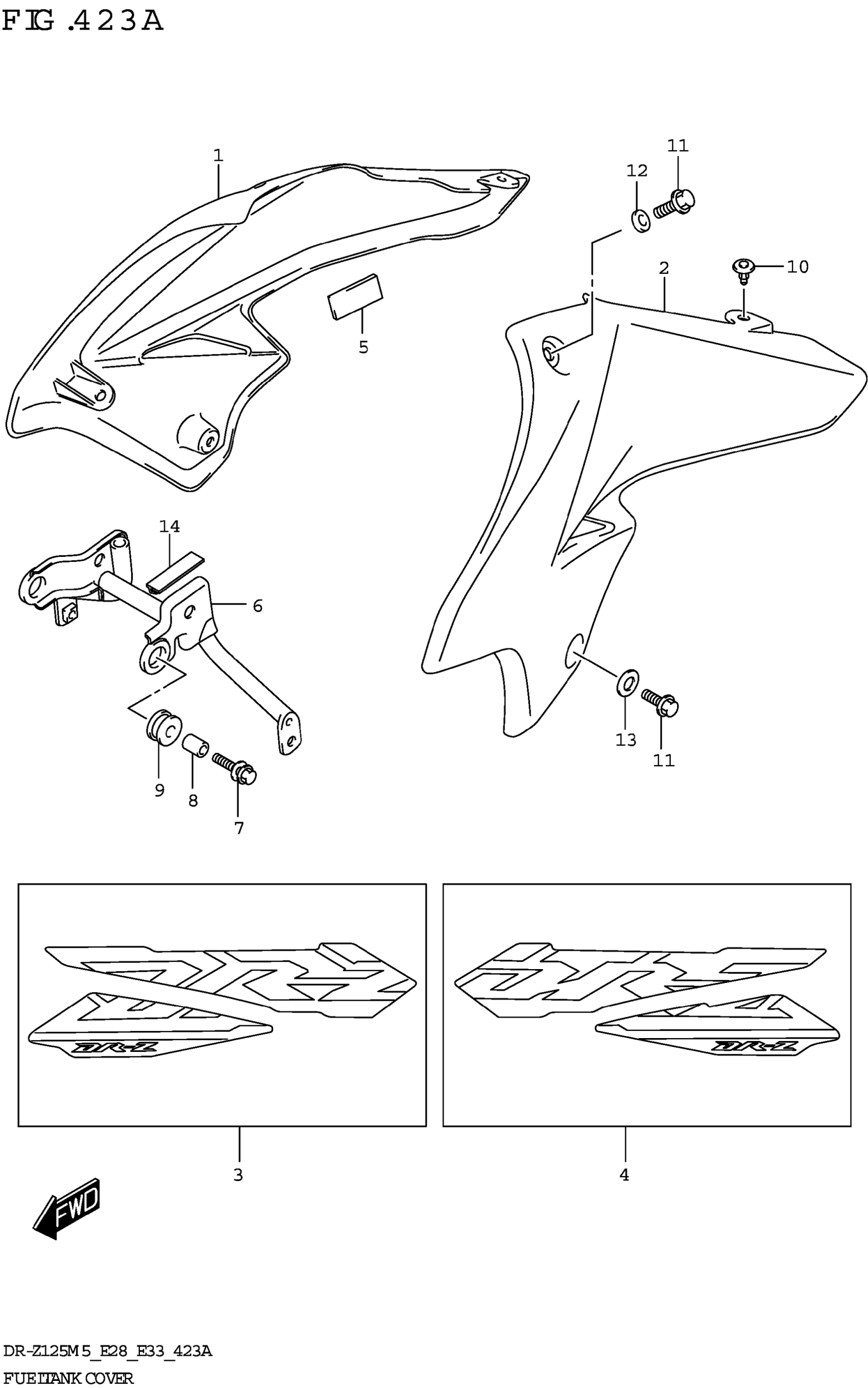

Suzuki DR-Z125LM5 (2025) FUEL TANK COVER Diagram
