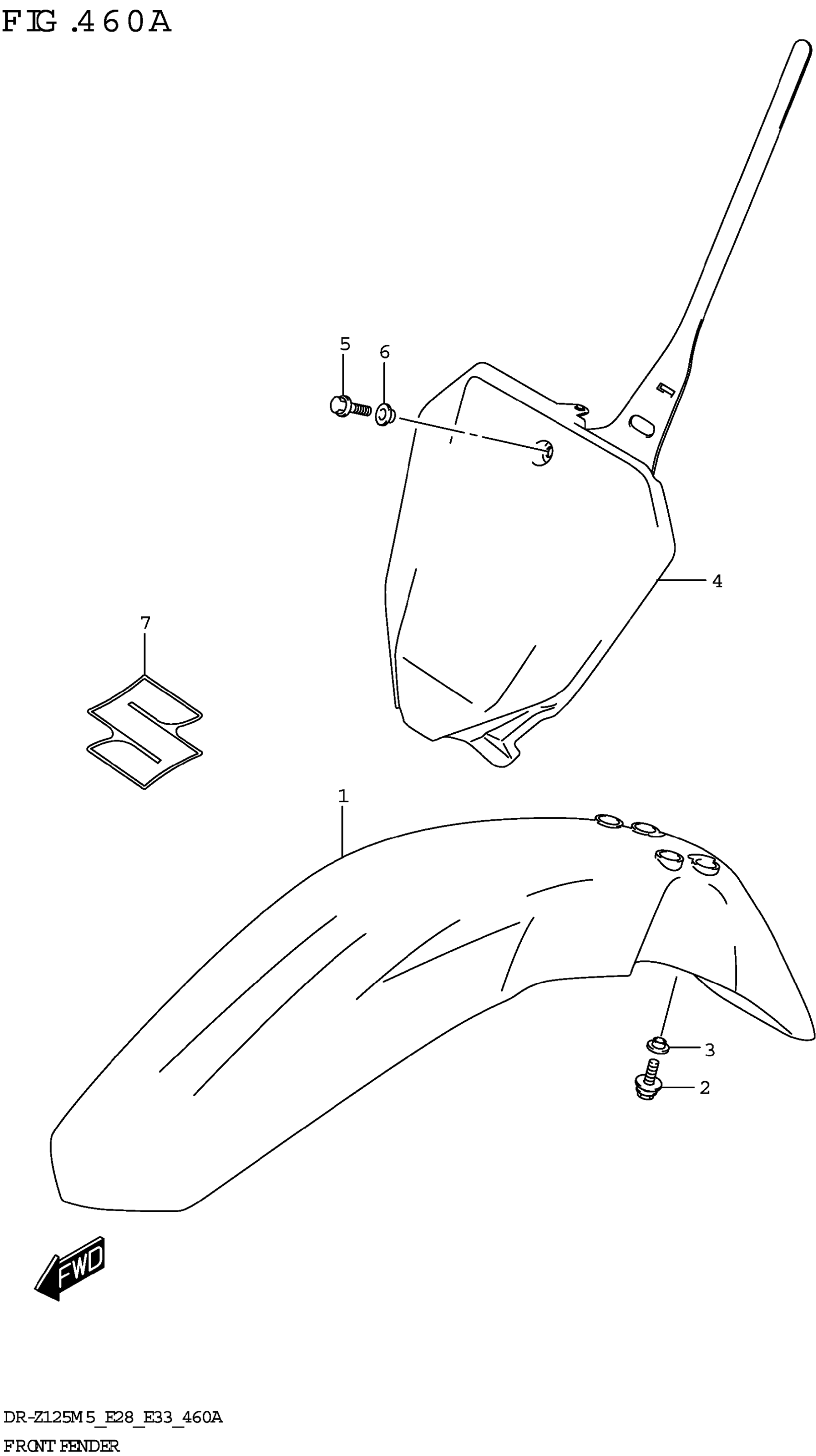

Suzuki DR-Z125LM5 (2025) FRONT FENDER Diagram

#

Description

Price

1

FENDER, FR (YELLOW)

53111-08G50-YU1

$114.31

2

BOLT (6X16)

09116-06170

$2.50

3

WASHER (6.1X17.0X4.8)

09169-06073

$3.42

4

PLATE, NUMBER FR (WHITE)

94911-08G00-30H

$72.18

5

BOLT

01547-0616A

$2.03

6

WASHER This part replaces 09169-06032.

09169-06071

$2.50

7

EMBLEM, S (ORANGE)

68641-43EK0-YCF

$13.28
