2024 Suzuki DR-Z125LM4 Frame Diagram

← All diagrams

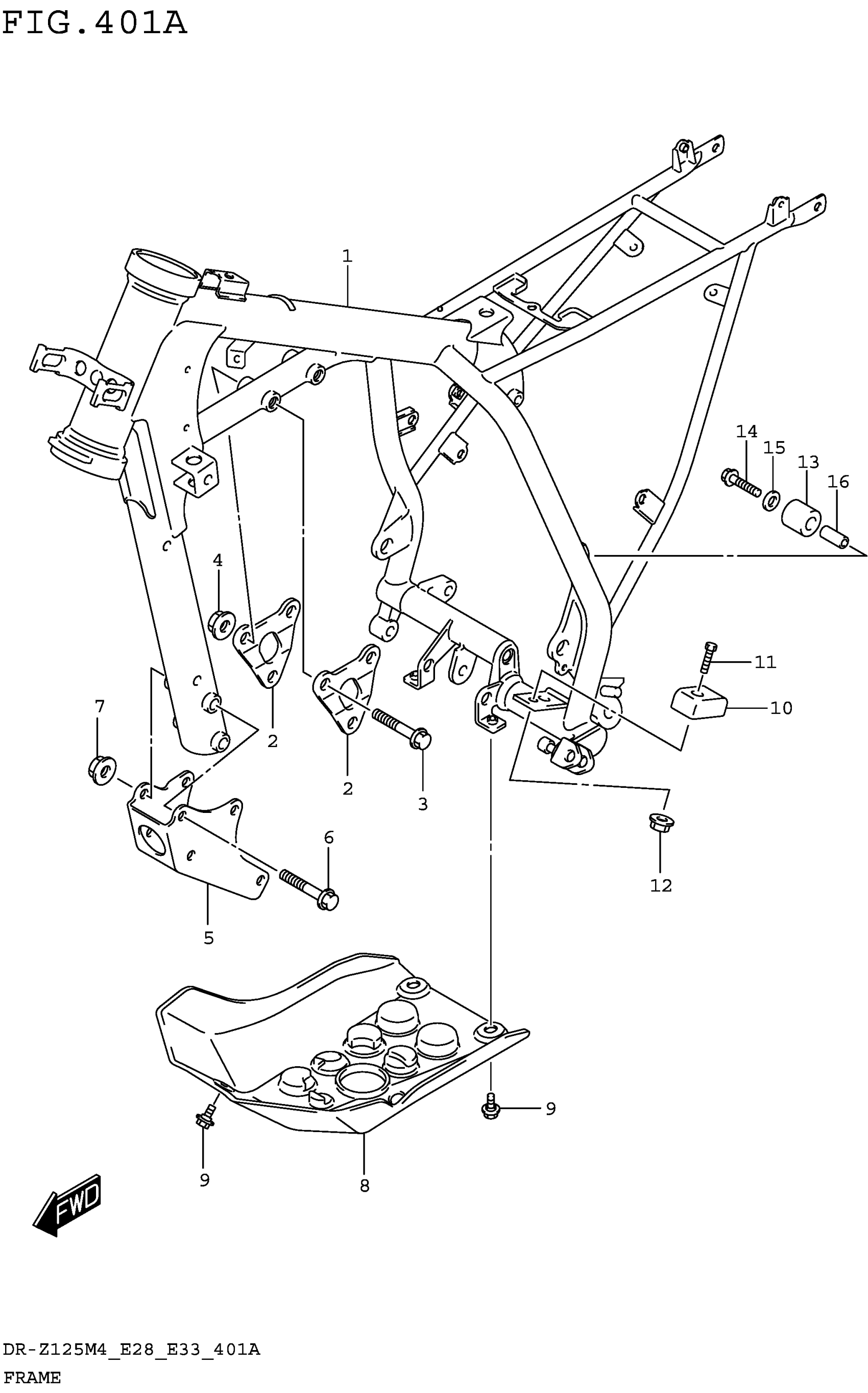

Find the part on the Frame diagram for your 2024 Suzuki DR-Z125LM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki DR-Z125LM4 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (GRAY)

41100-08G11-YPT

1
Out of stock

2

PLATE, ENG MTG UPR | UPPER

41991-08G00

2
Out of stock

3

BOLT (8X53)

09103-08332

2
Out of stock

4

NUT

08319-3108A

2
Out of stock

5

PLATE, ENG MTG LWR (GRAY)

41992-08G00-YPT

—
Out of stock

6

BOLT (8X65)

09103-08354

2
Out of stock

7

NUT

08319-3108A

2
Out of stock

8

PROTECTOR, ENGINE

42511-08G00

1
Out of stock

9

BOLT (6X12)

09111-06107

3
Out of stock

10

1

$31.55

In stock

11

BOLT (6X16)

09128-06088

1
Out of stock

12

NUT

08319-3106A

1
Out of stock

13

1

$30.12

In stock

14

BOLT (8X38)

09103-08178

1
Out of stock

15

WASHER

08211-08201

1
Out of stock

16

SPACER (8.6X12.2X26.5)

09180-08215

1
Out of stock
