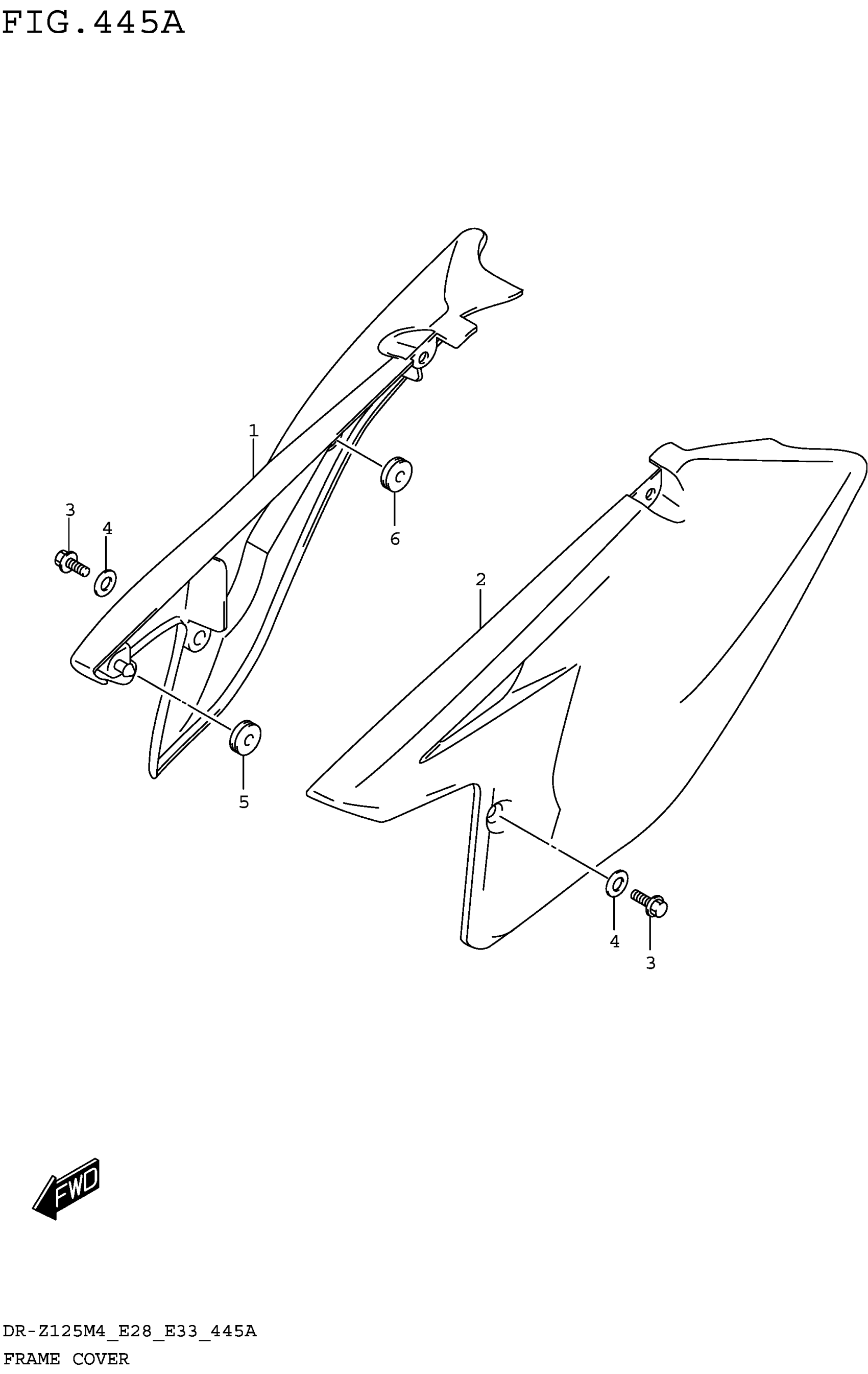

Suzuki DR-Z125LM4 (2024) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE)

47111-08G50-30H

$110.37

2

COVER, FRAME LH (WHITE)

47211-08G50-30H

$110.37

3

BOLT

01547-0616A

$2.01

4

WASHER This part replaces 09169-06028.

09169-06041

$1.97

5

CUSHION (8X26X7)

09320-08028

$2.80

6

CUSHION (9X26X14)

47161-08G00

$10.88
