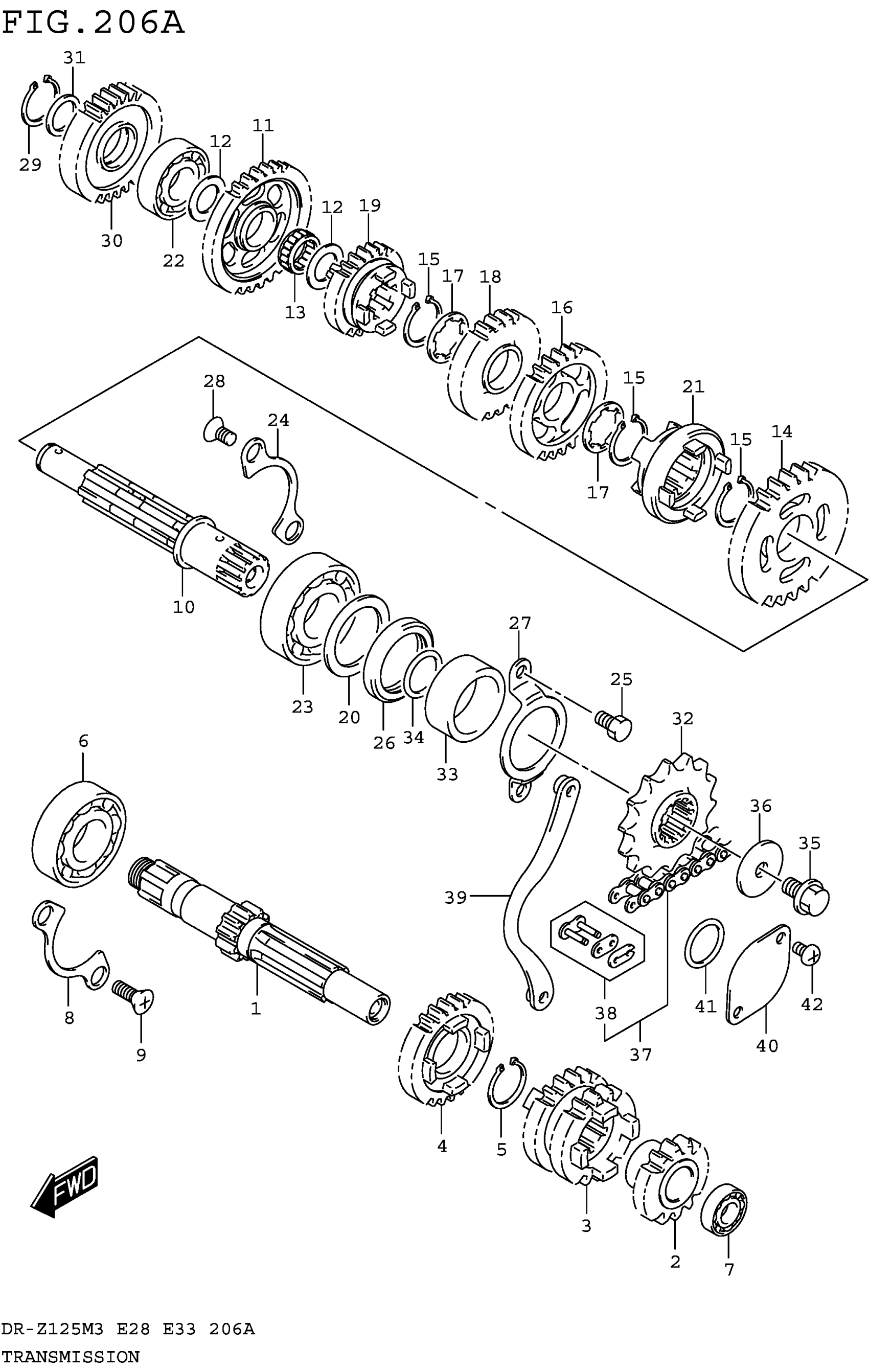

Suzuki DR-Z125LM3 (2023) TRANSMISSION (DR-Z125M3E28) Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:11)

24120-05850

Unavailable

2

GEAR, 2ND DRIVE (NT:14)

24221-05301

Unavailable

3

GEAR, 3RD & 4TH DRIVEN | (NT:19/21)

24231-05203

Unavailable

4

GEAR, 5TH DRIVE (NT:26)

24251-05212

Unavailable

5

CIRCLIP

09380-20009

$2.20

6

BEARING (20X47X14)

09262-20069

$23.28

7

BEARING

08123-6002A

Unavailable

8

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

9

SCREW (6X12)

09126-06011

$2.03

10

SHAFT, DRIVE

24130-44A00

Unavailable

11

GEAR, 1ST DRIVEN (NT:33)

24311-05202

Unavailable

12

WASHER

08211-15251

$1.67

13

BEARING (15X19X7.8)

09263-15023

Unavailable

14

GEAR, 2ND DRIVEN (NT:26)

24320-05202

Unavailable

15

CIRCLIP

09380-20009

$2.20

16

GEAR, 3RD DRIVEN (NT:26)

24331-05203

Unavailable

17

LOCK WASHER

09167-20034

Unavailable

18

GEAR, 4TH DRIVEN (NT:23)

24341-05203

Unavailable

19

GEAR, 5TH DRIVEN (NT:24)

24351-05211

Unavailable

20

WASHER, OIL SEALING

24359-42A00

$4.35

21

WHEEL, SLIDING DOG

24421-05300

Unavailable

22

BEARING (15X36X12)

09264-15001

Unavailable

23

BEARING (22X50X14)

09262-22018

$25.60

24

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

25

.BOLT

01500-0610A

$2.23

26

OIL SEAL (30X40X6)

09283-30053

$9.24

27

RETAINER, DRIVE SHAFT OIL SEA

24751-42A10

$4.52

28

SCREW (6X12)

09126-06011

$2.03

29

CIRCLIP

08331-3115A

$2.25

30

GEAR, KICK STARTER IDLE | (NT:26)

26260-05201

Unavailable

31

SHIM (15X20X1)

09181-15111

$2.97

32

SPROCKET, ENGINE (NT:14)

27511-44A20

$35.03

33

SPACER, ENGINE SPROCKET

27531-42A00

$23.07

34

O RING (D:2.5,ID:21)

09280-21008

$1.91

35

BOLT (8X12)

01550-0812A

$2.32

36

WASHER

08211-08283

$2.81

37

CHAIN ASSY, DRIVE (DID428H | (I)) GREEN

27600-46912-122

$60.93

38

.JOINT SET, CHAIN | (I))

27620-46912

$5.55

39

PLATE, FR CHAIN GUIDE

27640-08G00

$16.04

40

CAP, NEUTRAL SW HOLE

11450-08G00

Unavailable

41

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

42

SCREW

02112-0508A

$1.49
