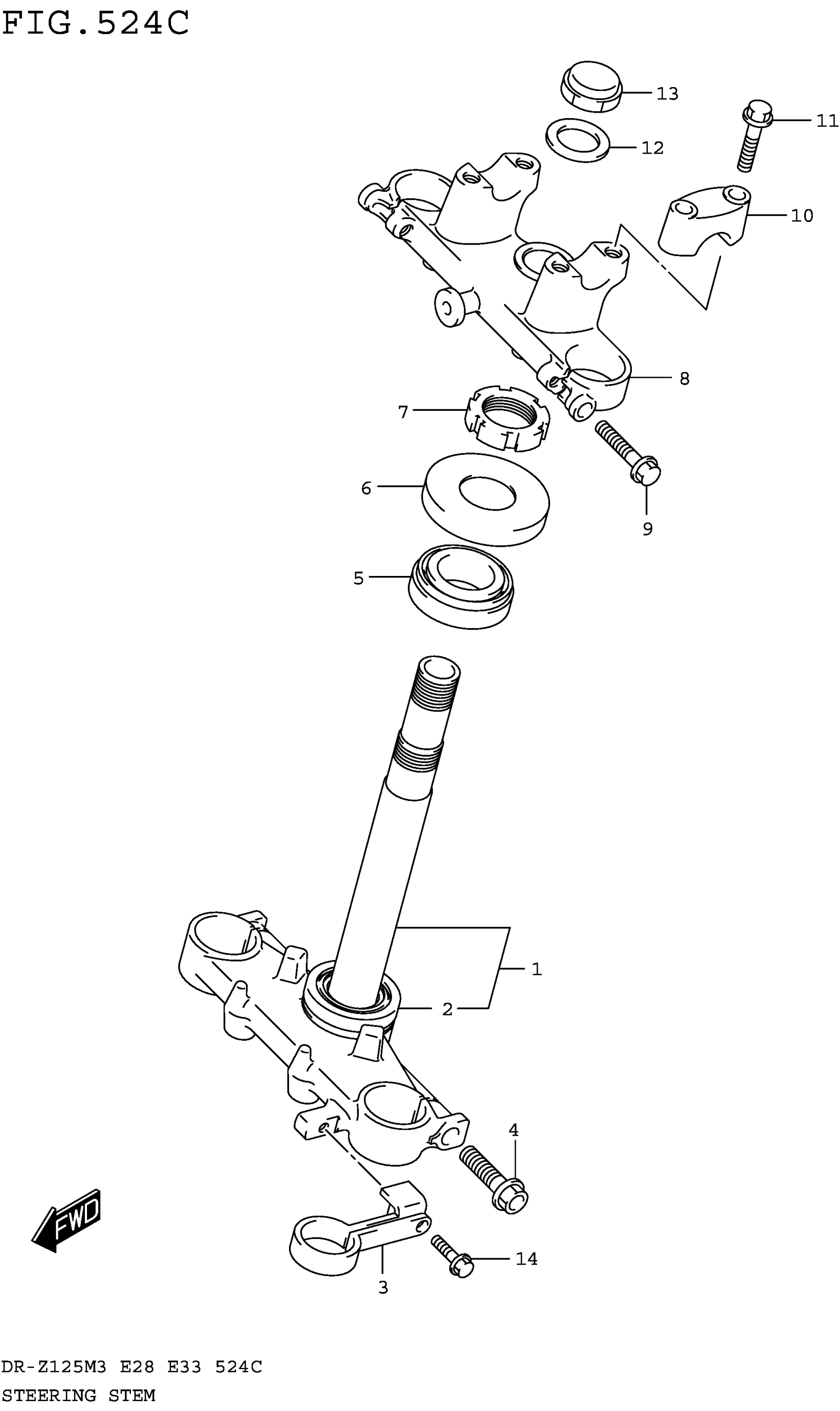

Suzuki DR-Z125LM3 (2023) STEERING STEM (DR-Z125LM3E33) Diagram

#

Description
Price

1

STEM, STEERING

51410-08G00

Unavailable

2

.BEARING (26X47X15)

09265-26002

$47.18

3

GUIDE, FR BRAKE HOSE

51453-08G10

$5.77

4

BOLT

51328-08G00

Unavailable

5

BEARING (25X47X15)

09265-25038

$45.57

6

SEAL, STEERING UPR DUST

51643-03B00

$13.05

7

NUT, STEERING

51631-03B00

$23.32

8

BRACKET, UPR

51311-08G00

Unavailable

9

BOLT

51321-08G00

$8.05

10

HOLDER, HANDLE

56211-36F00

$34.15

11

BOLT

51321-08G00

$8.05

12

WASHER

51356-02B60

$13.83

13

NUT

51353-11D50

$26.87

14

BOLT This part replaces 09103-06235.

01547-06207

$2.01
