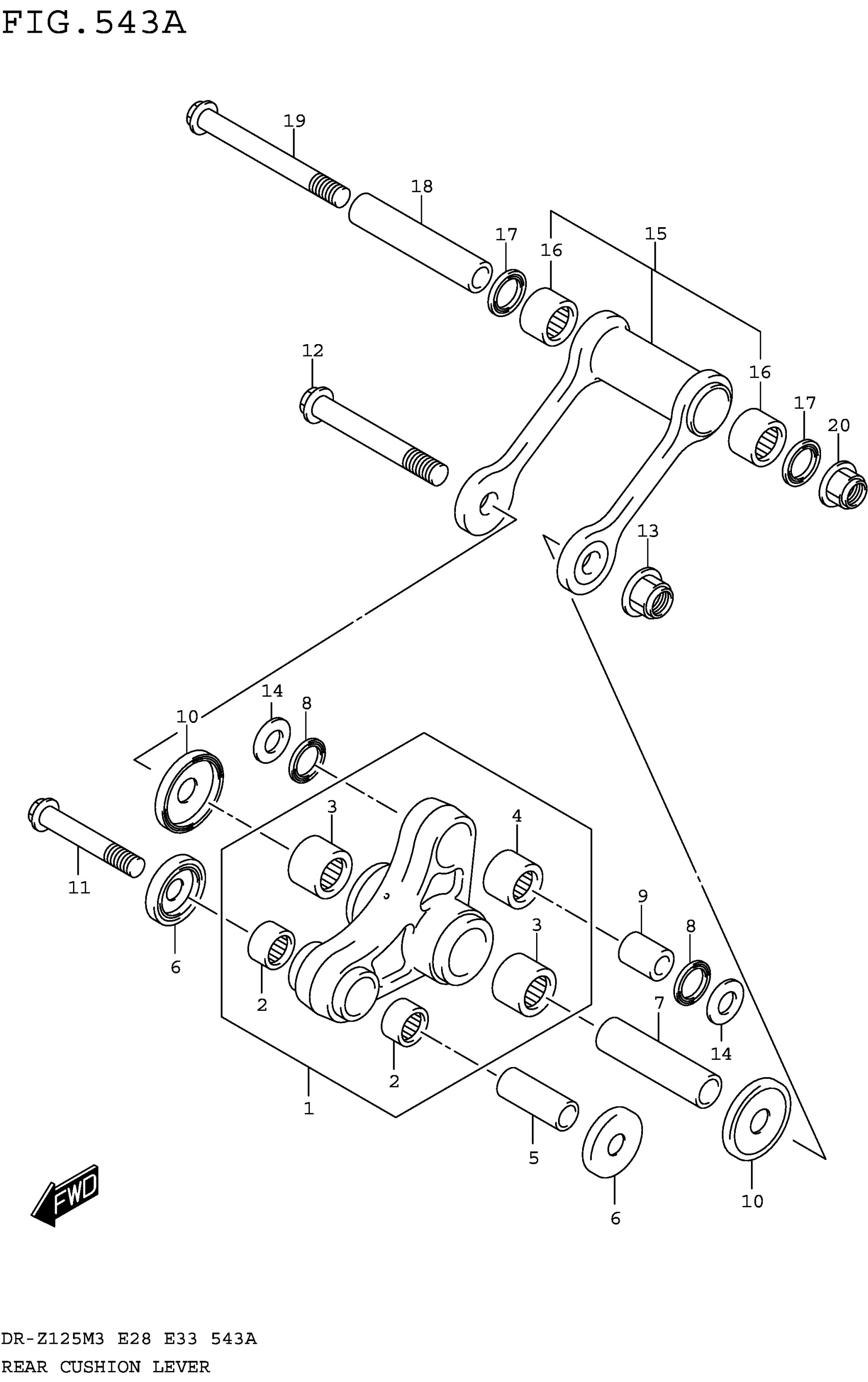

Suzuki DR-Z125LM3 (2023) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, RR CUSHION

62600-08820

Unavailable

2

BEARING (14X20X12)

09263-14027

$12.21

3

.BEARING (17X24X20)

09263-17027

$17.83

4

.BEARING (16X22X12)

09263-16033

$18.28

5

SPACER, RR CUSHION LEVER FR | (10X14X37)

62317-02B40

$20.33

6

OIL SEAL

62162-03B01

$10.58

7

SPACER (12X17X60)

09180-12121

$21.77

8

OIL SEAL (16X22X2.5)

09284-16005

$6.27

9

SPACER, RR CUSHION LEVER RR | (10X16X22)

62684-36E10

$17.40

10

SEAL, DUST

62162-28E01

$10.07

11

BOLT, RR CUSHION LEVER FR | FRONT (10X64)

62658-02B50

Unavailable

12

BOLT, RR CUSHION LEVER CTR | (12X87)

62621-08G00

Unavailable

13

NUT

08319-3112A

$3.38

14

WASHER, THRUST LVR CUSHION RR | (16X28.5X1.6)

62685-37E00

$4.17

15

ROD SET, RR CUSHION

62600-08830

Unavailable

16

.BEARING (17X24X20)

09263-17027

$17.83

17

.SEAL,OIL (17X24X3)

09285-17007

$3.38

18

SPACER,RR CUSHION ROD

62646-08G00

$41.50

19

BOLT, RR CUSHION ROD

62648-08G00

$18.93

20

NUT

08319-3112A

$3.38
