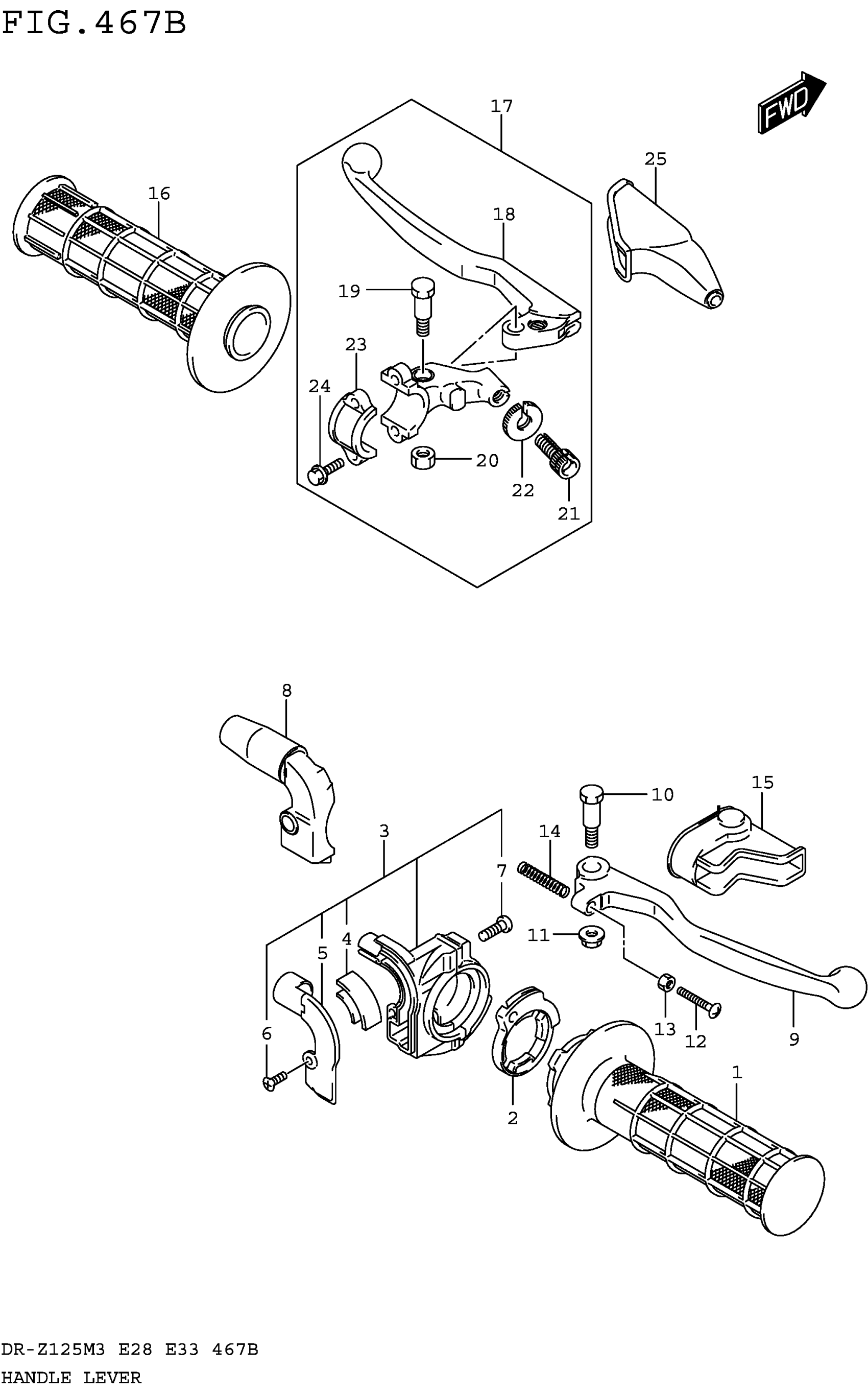

Suzuki DR-Z125LM3 (2023) HANDLE LEVER (DR-Z125LM3E28) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-27C00

$24.14

2

ROTER, THROTTLE

57114-20430

$14.18

3

CASE ASSY, THROTTLE This part replaces 57100-03D11.

57100-03D12

$41.78

4

.GUIDE This part replaces 57122-03D10.

57122-03D11

$9.58

5

.COVER

57129-03D10

$31.88

6

.SCREW

02132-0406B

$3.70

7

.SCREW

02112-0516A

$1.45

8

COVER, THROTTLE CASE

57129-08G00

$24.63

9

LEVER, BRAKE

57421-27C00

$12.66

10

BOLT, BRAKE LEVER

57431-14500

$5.75

11

NUT This part replaces 57442-14500.

08316-1006B

$2.50

12

BOLT, ADJUST

57431-14511

$5.46

13

NUT

08310-0005A

$1.83

14

SPRING, RETURN

57318-14502

$4.09

15

COVER, BRAKE LEVER

57341-14501

$10.58

16

GRIP LH

57211-27C00

$11.25

17

LEVER ASSY, CLUTCH

57500-14322

$49.53

18

.LEVER, CLUTCH

57621-13E00

$11.69

19

..BOLT,LEVER PIVOT

57431-21D11

$8.94

20

.NUT

08319-2106A

$1.89

21

.ADJUSTER, WIRE

57441-29F01

$12.78

22

.NUT, LOCK

57442-45C01

$7.92

23

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

$28.93

24

.BOLT, BRACKET

57513-29F10

$7.03

25

COVER, CLUTCH CABLE DUST

57341-29F02

$10.83
