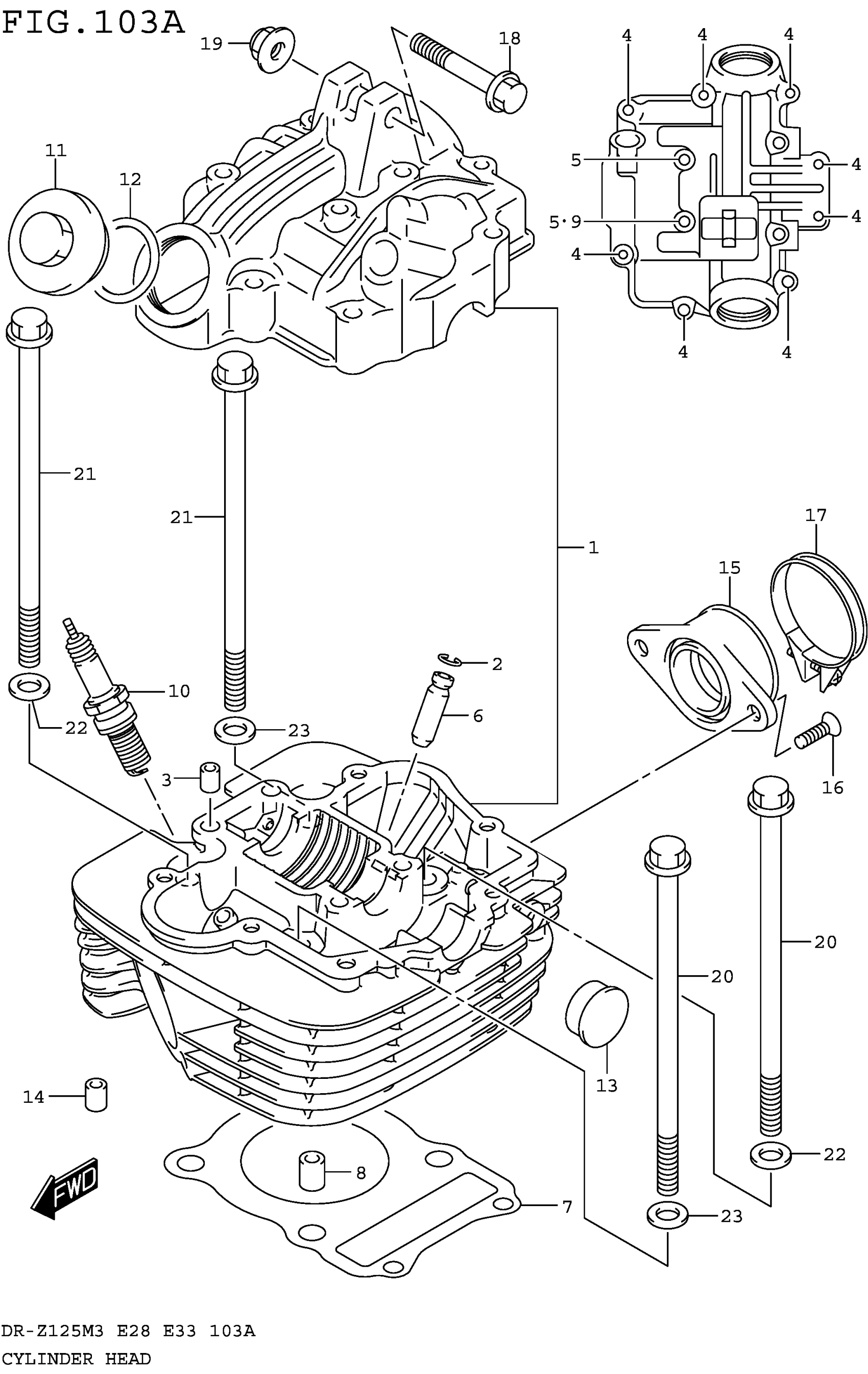

Suzuki DR-Z125LM3 (2023) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-08G00

$784.90

2

.RING (10X85)

09381-10004

$1.35

3

.PIN (8X11)

09206-08001

$1.77

4

BOLT

01550-0635A

$2.31

5

.BOLT

01550-0660A

$2.80

6

GUIDE, VALVE (0S:0.3) | OPT

11115-05270

$30.22

7

.GASKET.CYLINDER HEAD

11141-05202

$11.44

8

PIN

04211-11169

$1.77

9

GASKET (5.8X13X1.2)

09168-06023

$2.01

10-1

SPARK PLUG (DR8EA)

09482-00399

$2.95

10-2

SPARK PLUG (X24ESR-U)

09482-00223

$4.60

11

CAP INSPECTION This part replaces 11175-18900.

11175-18920

$11.16

12

.O RING (D:3,ID:29.5)

09280-30001

$1.70

13

PLUG (OD:22.5)

09241-22002

$4.73

14

PAD, RUBBER

11151-45000

$3.62

15

PIPE ASSY, INTAKE

13101-08G01

$28.45

16

SCREW

02122-0616A

$1.43

17

CLAMP

09402-46208

$4.19

18

BOLT (8X50)

09103-08081

$4.03

19

NUT

08319-3108A

$2.31

20

BOLT (8X155)

09103-08378

$8.20

21

BOLT (8X165)

09103-08379

$5.88

22

.GASKET (8.5X17X2.3)

09168-08021

$2.66

23

.GASKET (8.5X17X2.3)

09168-08021

$2.66
