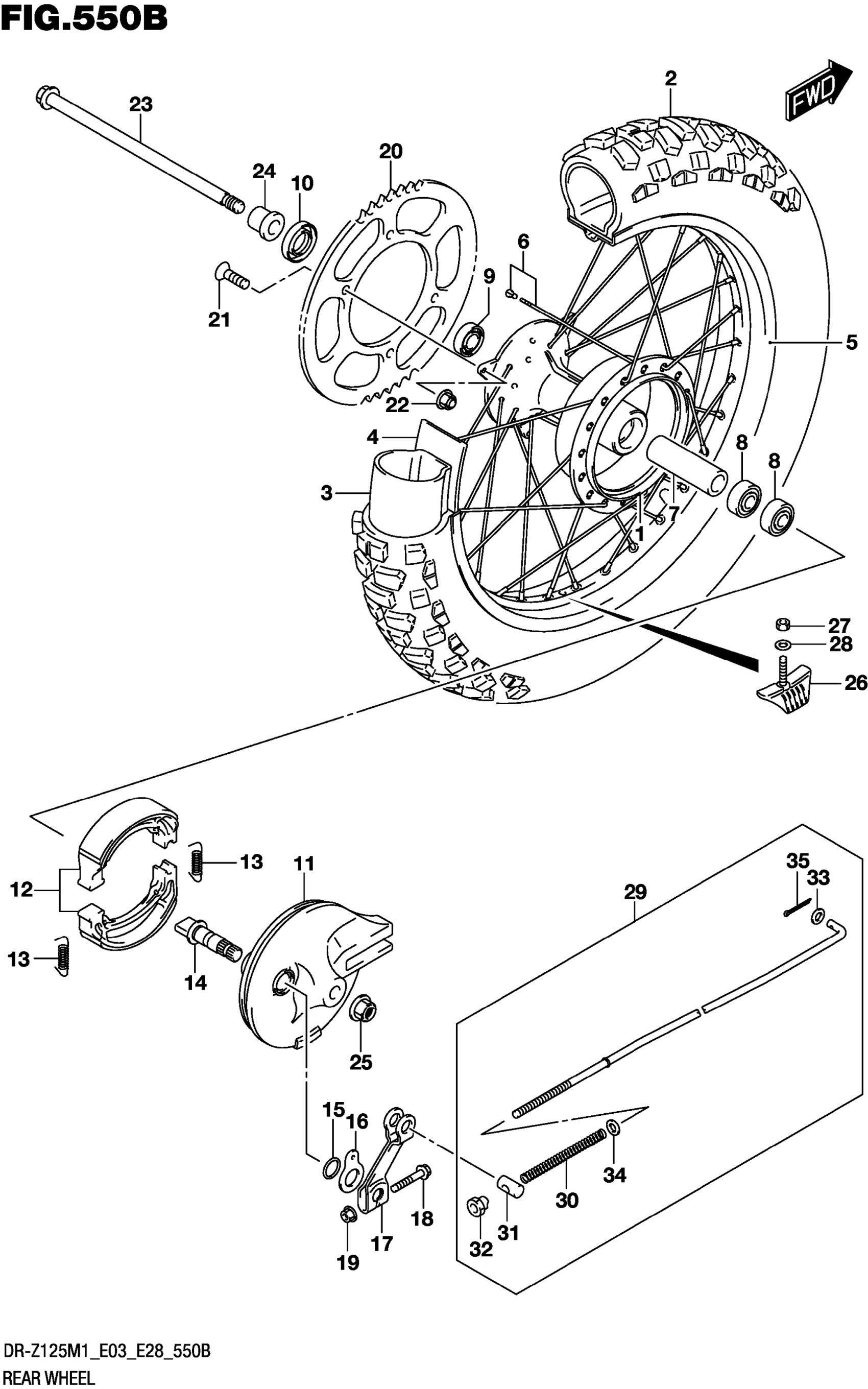

Suzuki DR-Z125LM1 (2021) REAR WHEEL (DR-Z125L) Diagram

#

Description
Price

1

HUB, RR WHEEL

64110-08G10

$481.73

2

TIRE, REAR (90/100-16 52M) | IRC

65110-08G20

$182.02

3

TUBE ASSY, WHEEL INNER This part replaces 65200-08G10.

65200-08G11

$46.33

4

PROTECTOR, WHEEL INNER TUBE

65261-08G30

$7.23

5

RIM, RR WHEEL (16X1.60)

65311-08G30

$363.38

6

SPOKE SET, RR WHEEL

65320-08G30

$63.20

7

SPACER (12.5X19X45.5)

09180-12151

$12.43

8

BEARING

09262-12040

$5.57

9

BEARING

08123-6301B

$13.11

10

OIL SEAL (20X37X7)

09283-20025

$5.35

11

PANEL, RR BRAKE ANCHOR

64210-08G00

$202.30

12

SHOE SET, BRAKE

54401-43840

$30.22

13

.SPRING (L:37.8)

09443-07044

$2.84

14

CAM, RR BRAKE

64441-13G00

$27.37

15

O RING (D:2.5,ID:13.8)

09280-14011

$4.44

16

PLATE, BRAKE LINING INDICATOR

54492-13G00

$5.80

17

LEVER, RR BRAKE CAM

64451-08G00

$30.45

18

BOLT

01550-0635A

$2.38

19

NUT (6X12)

08316-1006A

$2.25

20

SPROCKET, RR (NT:57)

64511-08G10

$78.00

21

BOLT (8X30.5)

09120-08010

$2.39

22

NUT

08319-3108A

$2.38

23

AXLE, RR

64711-08G00

$39.58

24

SPACER, RR AXLE

64751-08G00

$13.73

25

NUT

08319-3112A

$3.49

26

STOPPER, BEAD (1.6)

65270-08G00

$45.79

27

NUT

08310-0008A

$1.94

28

WASHER

08322-0108A

$2.18

29

ROD ASSY, RR BRAKE

43300-08G10

$17.49

30

.SPRING

09440-09004

$2.06

31

.PIN (11X18)

09209-11002

$2.17

32

.NUT

09150-06010

$2.88

33

WASHER

08322-0105A

$1.89

34

WASHER

08322-0106A

$1.89

35

PIN

04111-2020A

$1.25
