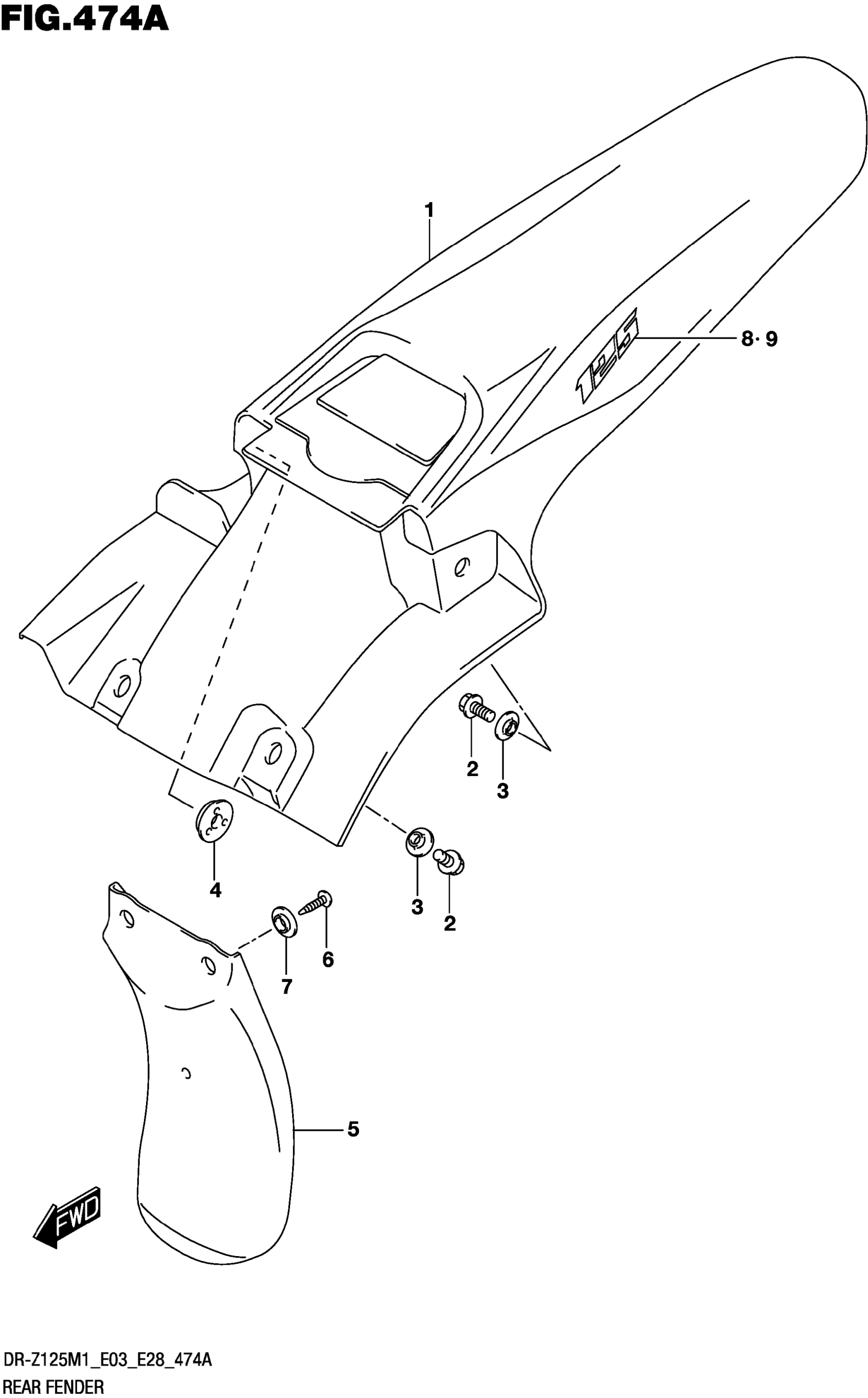

Suzuki DR-Z125LM1 (2021) REAR FENDER (DR-Z125) Diagram

#

Description
Price

1

FENDER, RR (YELLOW)

63113-08G60-YU1

$81.45

2

BOLT (6X16)

09103-06200

$2.90

3

WASHER

09169-06076

$3.05

4

WASHER

09169-08045

$2.23

5

MUDGUARD, RR FENDER FR

63411-29F00

$24.30

6

SCREW (5X16)

09132-05053

$2.28

7

WASHER This part replaces 09169-06045.

09169-06055

$2.27

8

EMBLEM, 125 RH (YELLOW/BLACK)

68171-08G60-GY8

Unavailable

9

EMBLEM, 125 LH (YELLOW/BLACK)

68172-08G60-GY8

Unavailable
