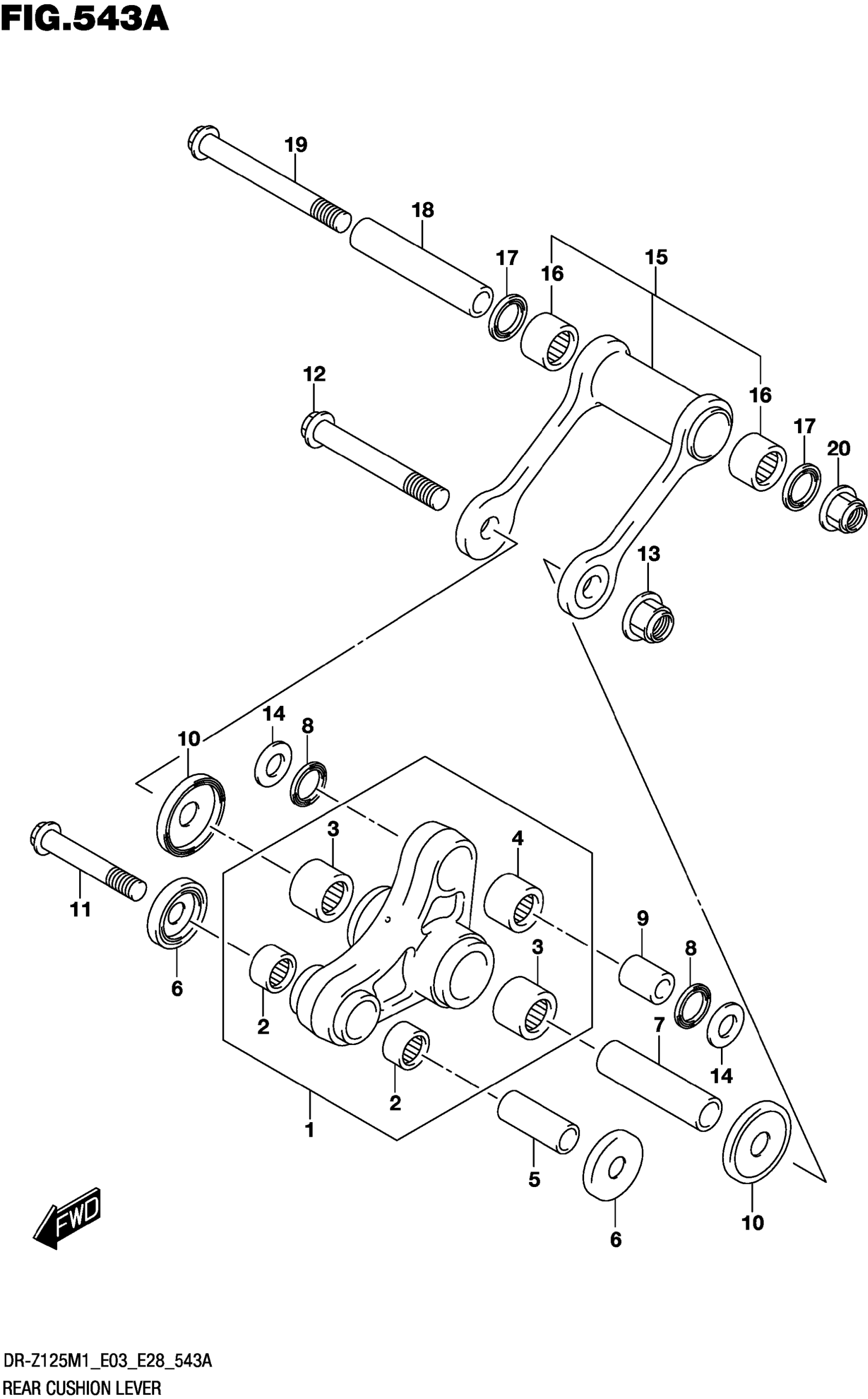

Suzuki DR-Z125LM1 (2021) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, RR CUSHION

62600-08820

Unavailable

2

BEARING (14X20X12)

09263-14027

$13.52

3

.BEARING (17X24X20)

09263-17027

$19.48

4

.BEARING (16X22X12)

09263-16033

$20.26

5

SPACER, RR CUSHION LEVER FR | 7)

62317-02B40

$18.02

6

OIL SEAL

62162-03B01

$9.37

7

SPACER (12X17X60)

09180-12121

$20.03

8

OIL SEAL (16X22X2.5)

09284-16005

$6.95

9

SPACER, RR CUSHION LEVER RR | 10X16X22)

62684-36E10

$15.42

10

SEAL, DUST

62162-28E01

$10.69

11

BOLT, RR CUSHION LEVER FR | (10X64)

62658-02B50

Unavailable

12

BOLT, RR CUSHION LEVER CTR | 12X87)

62621-08G00

Unavailable

13

NUT

08319-3112A

$3.76

14

WASHER, THRUST LVR CUSHION RR | 16X28.5X1.6)

62685-37E00

$4.43

15

ROD SET, RR CUSHION

62600-08830

Unavailable

16

.BEARING (17X24X20)

09263-17027

$19.48

17

.SEAL,OIL (17X24X3)

09285-17007

$3.76

18

SPACER,RR CUSHION ROD

62646-08G00

$36.78

19

BOLT, RR CUSHION ROD

62648-08G00

$16.78

20

NUT

08319-3112A

$3.76
