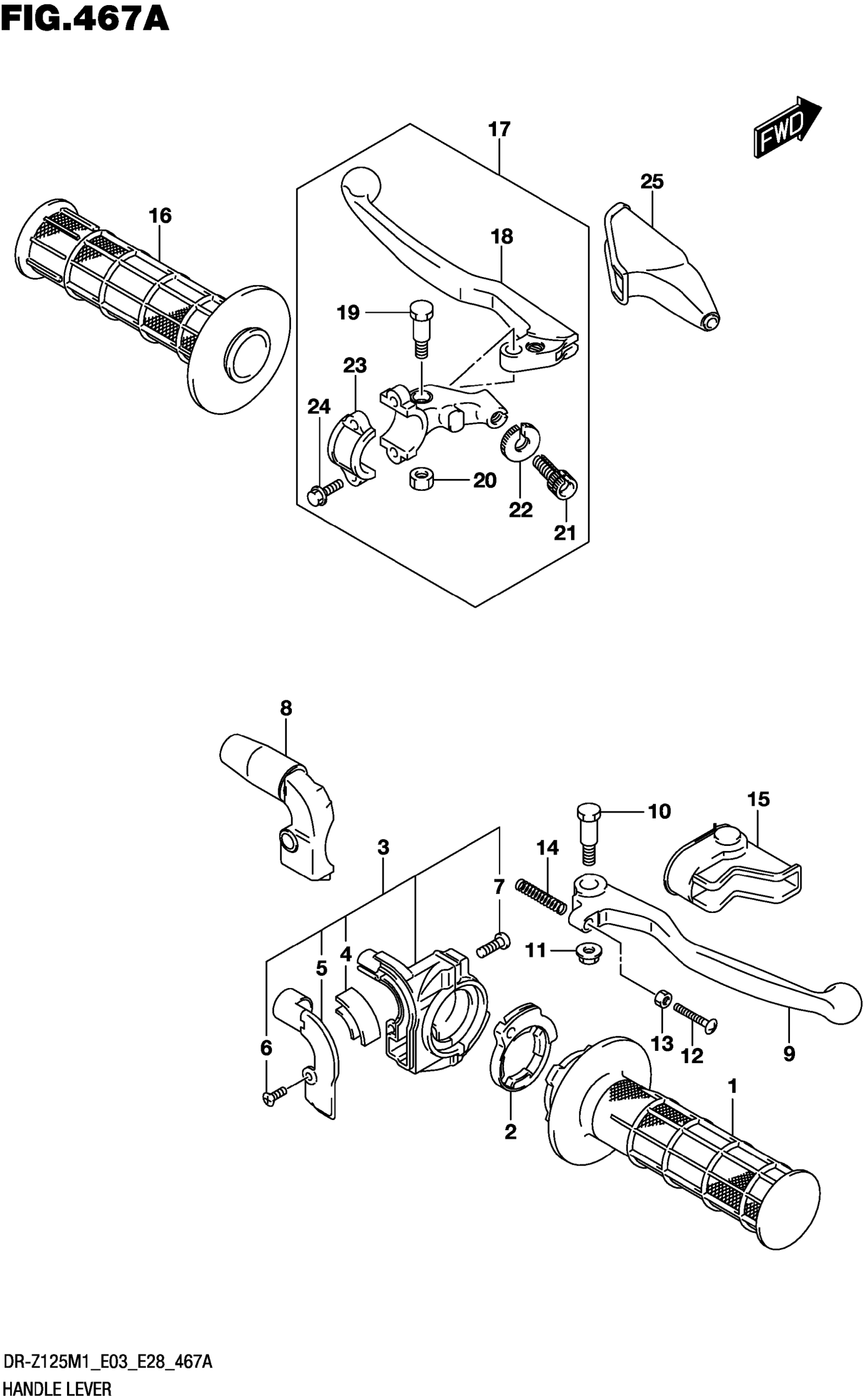

Suzuki DR-Z125LM1 (2021) HANDLE LEVER (DR-Z125L) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-27C00

$26.37

2

ROTER, THROTTLE

57114-20430

$12.57

3

CASE ASSY, THROTTLE This part replaces 57100-03D11.

57100-03D12

$45.64

4

.GUIDE This part replaces 57122-03D10.

57122-03D11

$8.48

5

.COVER

57129-03D10

$28.25

6

.SCREW

02132-0406B

$3.40

7

.SCREW

02112-0516A

$1.49

8

COVER, THROTTLE CASE

57129-08G00

$21.83

9

LEVER, BRAKE

57421-27C00

$14.24

10

BOLT, BRAKE LEVER

57431-14500

$6.28

11

NUT This part replaces 57442-14500.

08316-1006B

$2.50

12

BOLT, ADJUST

57431-14511

$5.80

13

NUT

08310-0005A

$1.84

14

SPRING, RETURN

57318-14502

$4.48

15

COVER, BRAKE LEVER

57341-14501

$7.97

16

GRIP LH

57211-27C00

$12.28

17

LEVER ASSY, CLUTCH This part replaces 57500-14321.

57500-14322

$45.45

18

.LEVER, CLUTCH

57621-13E00

$13.15

19

..BOLT,LEVER PIVOT

57431-21D11

$9.76

20

.NUT

08319-2106A

$1.91

21

.ADJUSTER, WIRE This part replaces 57441-29F00.

57441-29F01

$11.32

22

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

23

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

$25.63

24

.BOLT, BRACKET

57513-29F10

$6.23

25

COVER, CLUTCH CABLE DUST

57341-29F02

$8.52
