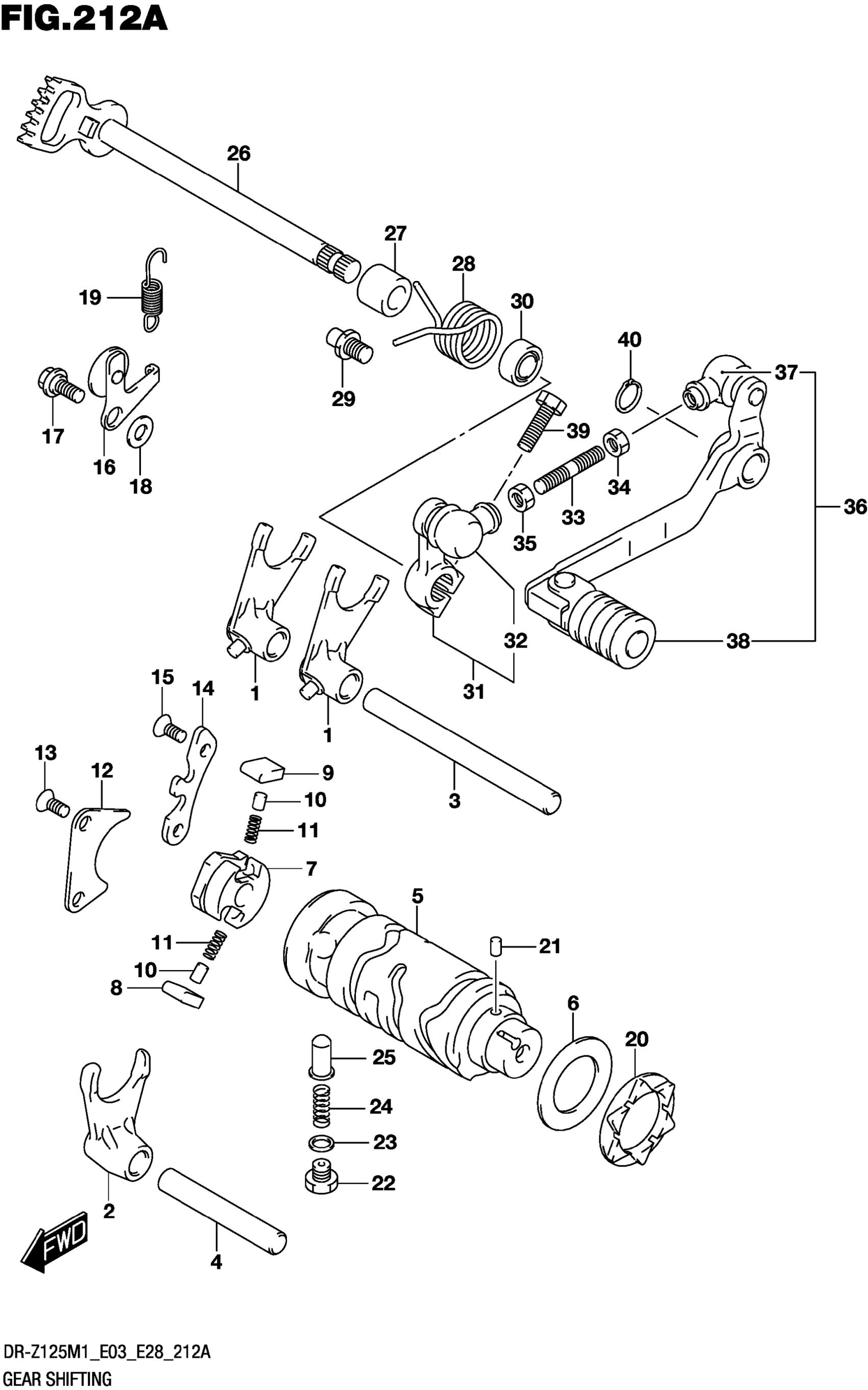

Suzuki DR-Z125LM1 (2021) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.2

25221-08300

Unavailable

2

FORK, GEAR SHIFT NO.3

25231-05201

Unavailable

3

SHAFT, GEAR SHIFT FORK (L:109

25411-16701

$20.33

4

SHAFT, GEAR SHIFT FORK NO.2 | 60)

25421-35420

Unavailable

5

CAM, GEAR SHIFT

25310-08G00

Unavailable

6

SHIM (25X40X1)

09181-25251

$1.26

7

GEAR, GEAR SHIFT CAM DRIVEN | :13)

25322-31310

$30.40

8

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

9

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

10

PIN (5X8)

09261-05003

$1.69

11

SPRING

09440-04003

$1.48

12

LIFTER, GR SHIFT POLE

25331-30001

Unavailable

13

SCREW (6X12)

09126-06011

$2.01

14

GUIDE, GEAR SHIFT CAM

25341-05200

Unavailable

15

SCREW (6X12)

09126-06011

$2.01

16

STOPPER, GEAR SHIFT CAM

25350-44A00

Unavailable

17

BOLT (6X14.6)

09111-06054

$4.02

18

WASHER

08211-06141

$1.61

19

SPRING

09443-08044

Unavailable

20

PLATE, GEAR SHIFT CAM STOPPER

25381-45400

$23.08

21

PIN

04221-04069

$2.30

22

PLUG (14X12)

09247-14026

$3.38

23

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

24

SPRING

09440-11014

$1.62

25

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$13.50

26

SHAFT, GEAR SHIFTING

25510-05201

$101.80

27

SPACER (12X20X15.3)

09180-12068

$2.63

28

SPRING

09444-26001

$6.38

29

STOPPER,GEAR SHIFT ARM

25671-01011

$4.09

30

OIL SEAL (12X22X9)

09285-12006

$5.70

31

ARM, GEAR SHIFT LINK

25520-08G01

$50.90

32

.COVER, DUST

25526-47001

$4.98

33

ROD, GEAR SHIFT LINK

25525-08G00

$8.03

34

NUT

09140-06025

$1.84

35

NUT

08310-0006A

$1.83

36

LEVER ASSY, GEAR SHIFT

25600-08G01

$70.05

37

.COVER, DUST

25526-47001

$4.98

38

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

$4.63

39

BOLT

01500-0620A

$1.77

40

CIRCLIP

08331-3112A

$1.77
