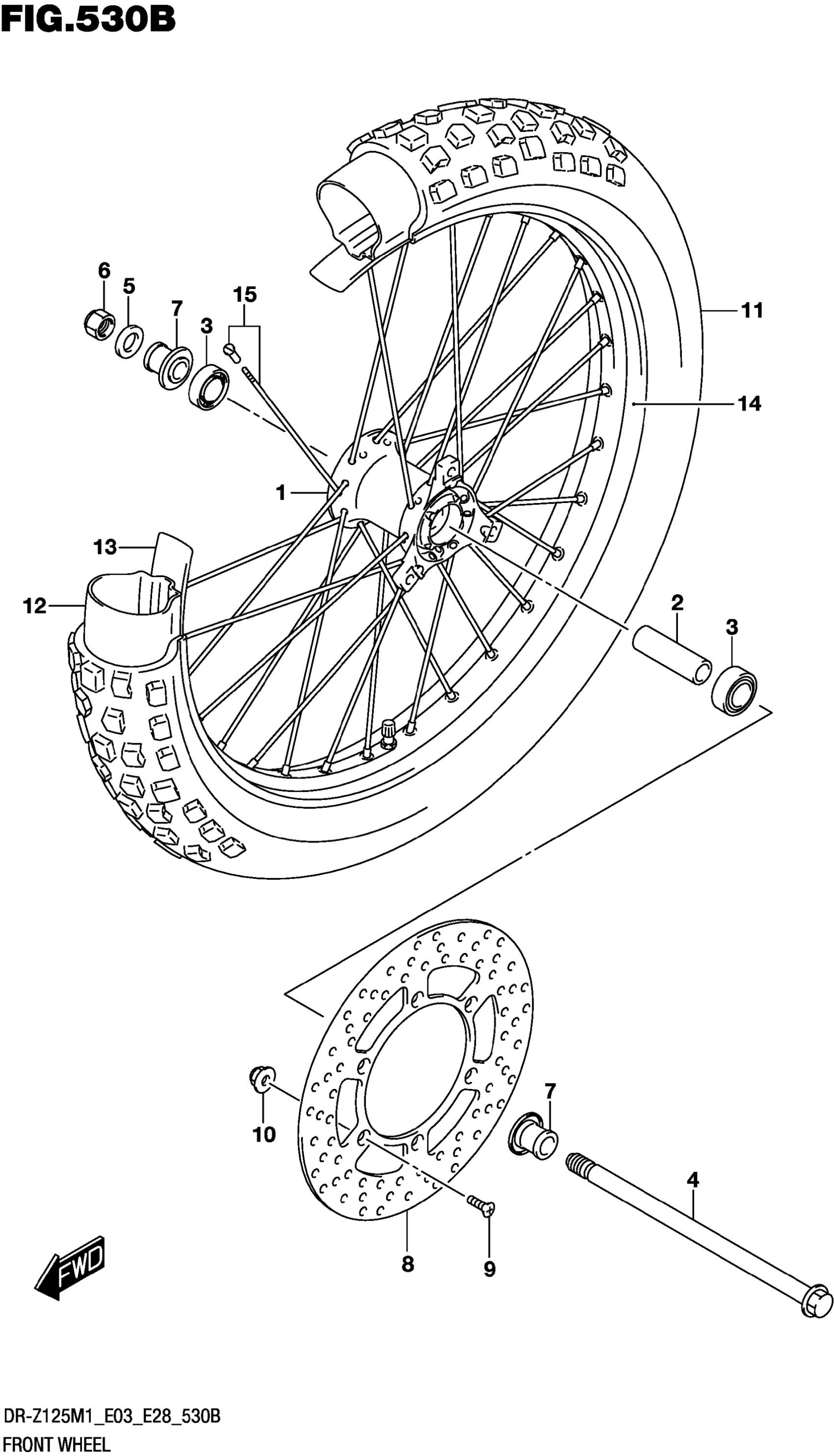

Suzuki DR-Z125LM1 (2021) FRONT WHEEL (DR-Z125L) Diagram

#

Description
Price

1

HUB, FR WHEEL

54111-02B42

$316.32

2

SPACER, FR HUB BEARING | X17.3X50)

54731-02B40

$13.67

3

BEARING

08133-62017

$18.47

4

AXLE, FR

54711-08G10

$45.38

5

WASHER (12.5X24X3.2)

09160-12082

$3.29

6

NUT

08319-2112A

$3.76

7

SPACER, FR AXLE

54740-02B40

$15.68

8

DISC, FR BRAKE

59221-08G00

$305.47

9

SCREW (6X22)

09126-06009

$2.70

10

NUT

08319-3106A

$2.03

11

TIRE, FRONT (70/100-19 42M) | IRC

55110-08G20

$118.35

12

TUBE ASSY, WHEEL INNER This part replaces 55200-08G10.

55200-08G11

$24.97

13

PROTECTOR, WHEEL INNER TUBE

55261-08G30

Unavailable

14

RIM, FR WHEEL (19X1.40)

55311-08G30

$322.02

15

SPOKE SET, FR WHEEL

55320-08G30

$67.73
