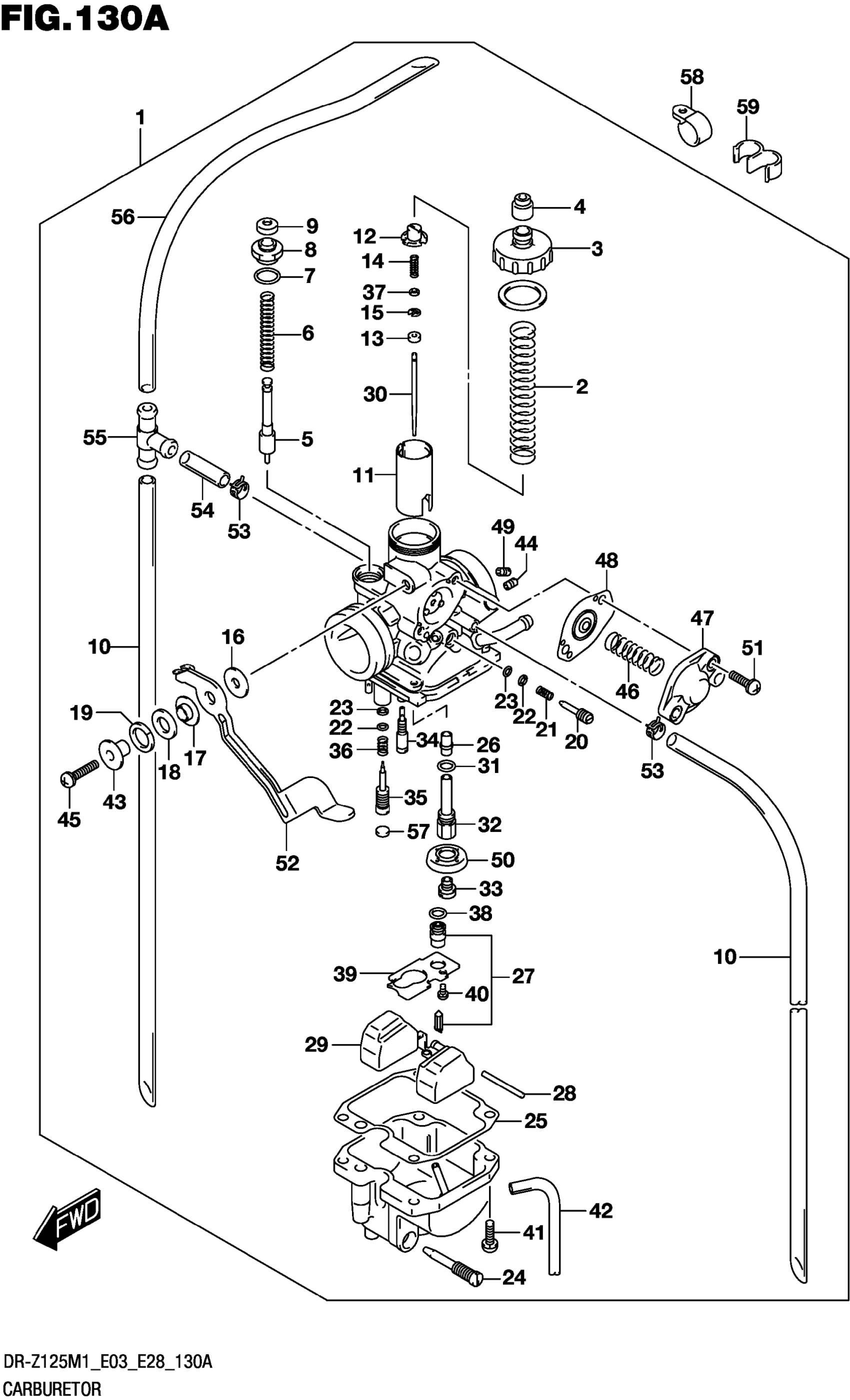

Suzuki DR-Z125LM1 (2021) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-08G02

$241.54

2

.SPRING

13573-08G00

$10.07

3

.MIXING CAP ASSY

13261-08G00

$32.10

4

.CAP

13681-04011

$4.93

5

.PLUNGER ASSY

13411-05320

$26.80

6

.SPRING

13417-08G00

$5.55

7

.O RING (16)

13278-47091

$1.90

8

.HOLDER, GUIDE

13418-44080

$10.00

9

.CAP, STARTER VALVE

13682-31210

$4.37

10

.HOSE (5X8X475)

13686-08G20

$10.55

11

.VALVE, PISTON

13551-08G00

$61.90

12

.HOLDER

13389-08G00

$7.37

13

.RING

13387-47010

$7.22

14

.SPRING

13481-33E00

$3.70

15

.E-RING

13394-40D20

$5.45

16

.PLATE

13421-05320

$3.12

17

.RING

13432-05320

$4.25

18

.WASHER

13589-47070

$1.98

19

.LOCK WASHER

08321-01087

$2.13

20

.SCREW, ADJUST

13267-08G00

$13.67

21

.SPRING

13268-08G00

$4.88

22

.WASHER (14X17)

13291-29900

$1.98

23

O-RING

13295-29901

$4.34

24

.SCREW

13247-08G00

$6.08

25

.GASKET

13251-29B00

$7.69

26

.JET, NEEDLE

13341-08G00

$45.83

27

.VALVE ASSY, NEEDLE

13370-08G00

$59.53

28

.PIN, FLOAT

13254-01010

$3.62

29

.FLOAT ASSY

13240-08G00

$41.68

30

.JET, NEEDLE (5HGM74)

13383-08G00

$18.80

31

.O RING

13246-43011

$4.34

32

.JET, HOLDER

13385-08G00

$35.20

33

.JET (#102.5)

09491-20012

$11.38

34

.JET (17.5)

09492-17017

$26.93

35

.ADJUSTER

13279-08G00

$14.85

36

.SPRING (NT:45)

13268-47070

$4.34

37

.WASHER

13382-08G00

$4.52

38

.O RING

13374-46710

$4.48

39

.PLATE

13259-29B10

Unavailable

40

SCREW This part replaces 13601-03068.

02112-0306B

$1.59

41

.SCREW

13601-04148

$2.81

42

.HOSE (3X5X650)

13684-40A00

$9.58

43

.RING

13424-05320

$5.21

44

.JET (85)

09493-85001

Unavailable

45

.SCREW

13601-44A10

$4.33

46

.SPRING

13481-08G00

$4.57

47

.COVER ASSY

13502-10F00

$39.68

48

.DIAPHRAGM ASSY

13480-10F01

$16.79

49

.JET (#145)

09492-29002

Unavailable

50

.HOLDER

13387-08G00

$7.08

51

.SCREW

13601-08G00

$3.78

52

.LEVER

13413-08G00

$26.55

53

.CLIP

13671-08G00

$5.72

54

.HOSE (5X8X25)

13686-08G00

$2.98

55

.NIPPLE

13685-48B00

$12.15

56

.HOSE (5X8X375)

13686-08G10

$8.60

57

.PLUG

13281-05A00

$4.60

58

CLAMP

09403-22405

$3.40

59

CLAMP (ID:7.2X2)

09408-00033

$2.83
