Description

Price

1

COVER, FUEL TANK RH (YELLOW)

44271-08GA0-YU1

$57.33

2

COVER, FUEL TANK LH (YELLOW)

44281-08GA0-YU1

$57.33

3

TAPE SET, FUEL TANK COVER RH

68110-08GB0-BTE

Unavailable

4

TAPE SET, FUEL TANK COVER LH

68120-08GB0-BTE

$28.83

5

.CUSHION (20X40X3)

44294-14H00

$3.33

6

BRACKET, FUEL TANK FR

44160-08GA0

Unavailable

7

BOLT (6X25)

09116-06186

$2.61

8

SPACER (6.5X9X13.5)

09180-06268

$2.19

9

CUSHION,FUEL TANK SIDE This part replaces 44512-04F00.

44512-04F01

$3.86

10

CLIP (7.6X25.7,BLACK)

09409-08308-5ES

$1.97

11

BOLT

01547-0616A

$2.03

12

WASHER

09169-06081

$3.68

13

WASHER (6.3X16X1)

09169-06053

$1.49

14

MOLDING

68241-04X50-300

$7.32

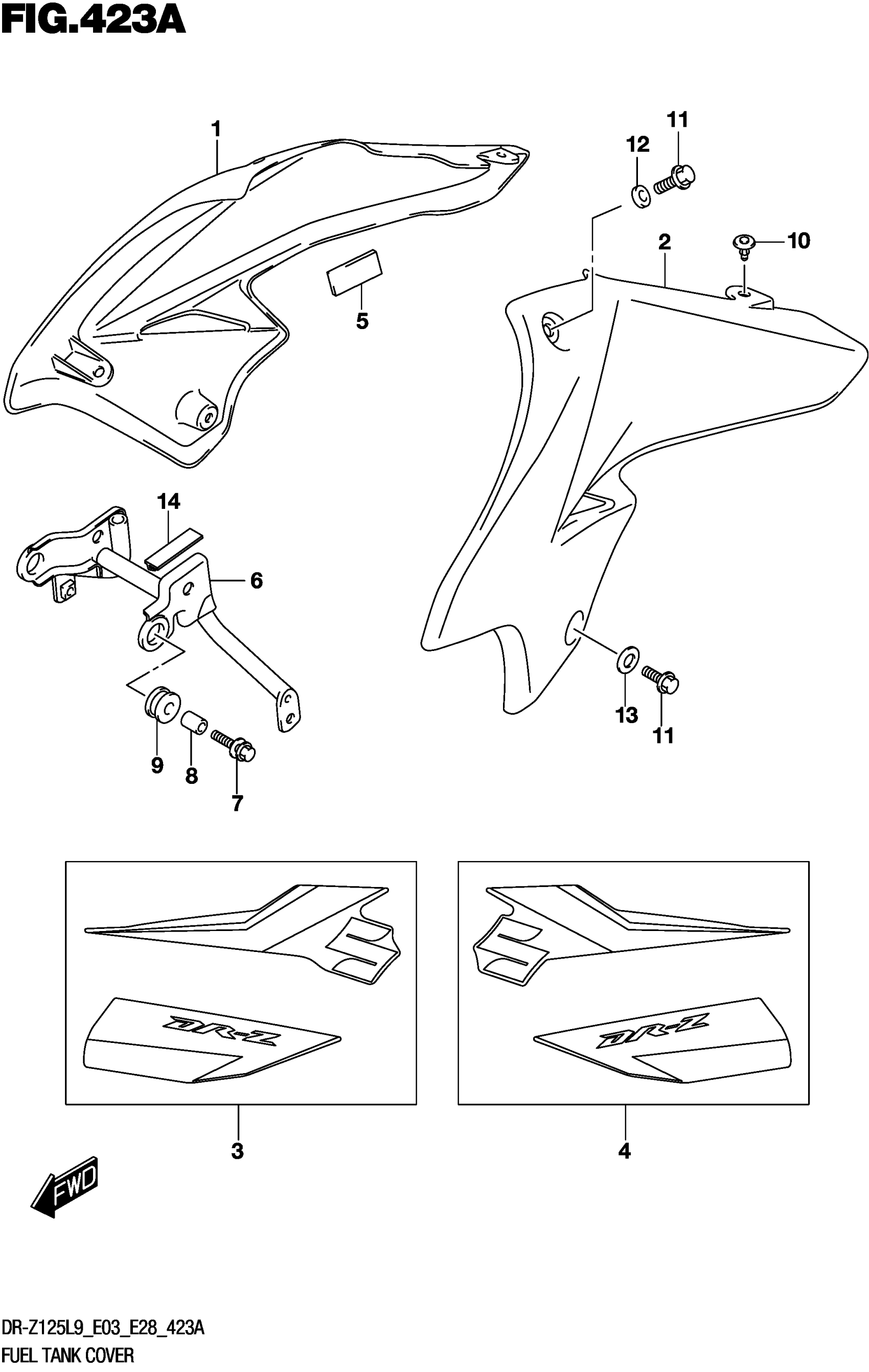

Suzuki DR-Z125L9 (2019) FUEL TANK COVER Diagram
