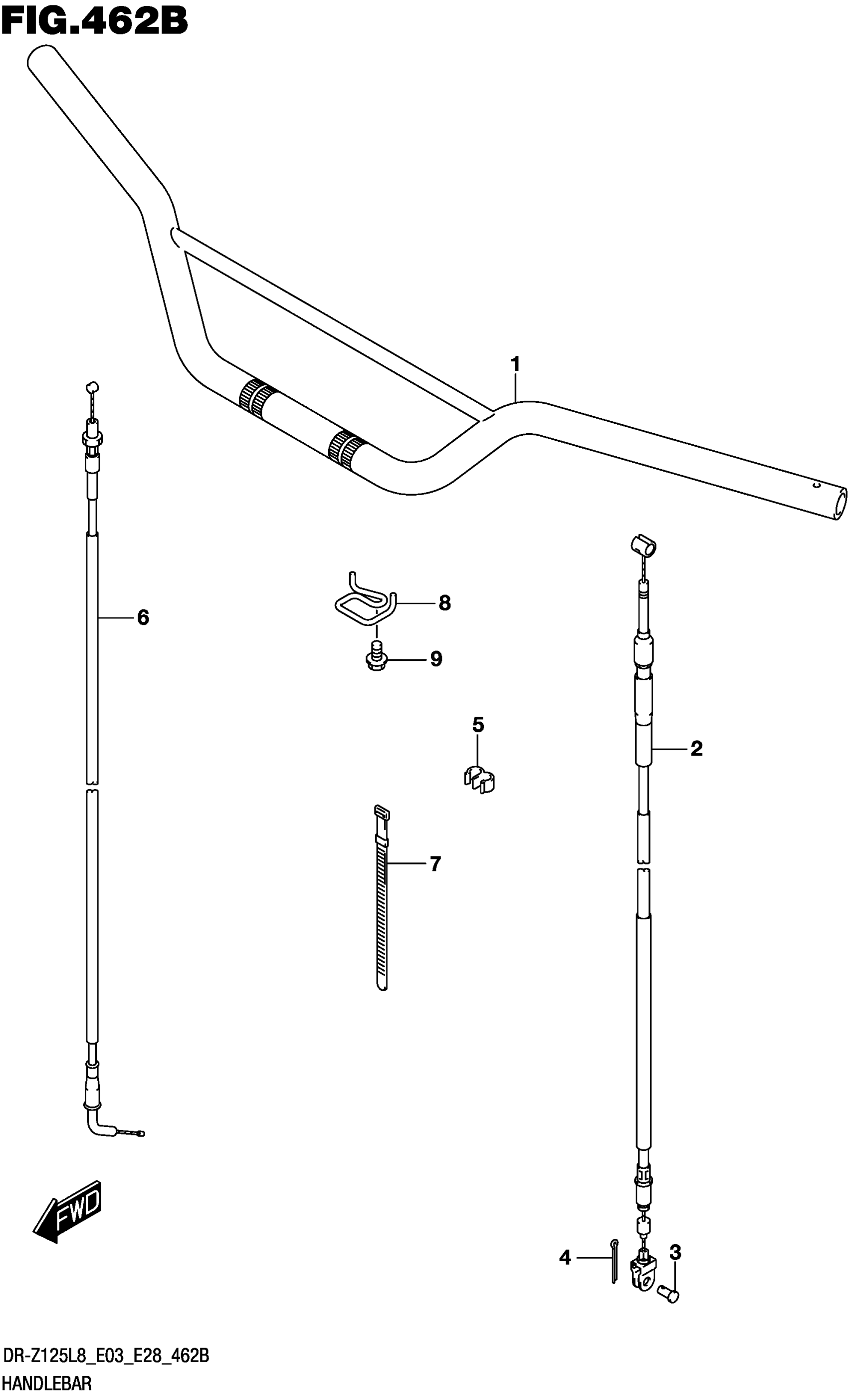

Suzuki DR-Z125L8 (2018) HANDLEBAR (DR-Z125LL8 E03) Diagram

#

Description
Price

1

HANDLEBAR (SILVER)

56110-08G00-13L

$178.92

2

CABLE ASSY, CLUTCH

58200-08G00

$32.45

3

PIN (L:13)

09200-06004

$1.68

4

PIN

04111-2015A

$1.22

5

CLAMP

09403-17402

Unavailable

6

CABLE ASSY, THROTTLE

58300-08G00

$17.09

7

CLAMP (L:90)

09407-11402

$1.81

8

GUIDE, CABLE

58621-08G00

$13.30

9

BOLT

01550-0612A

$1.97
