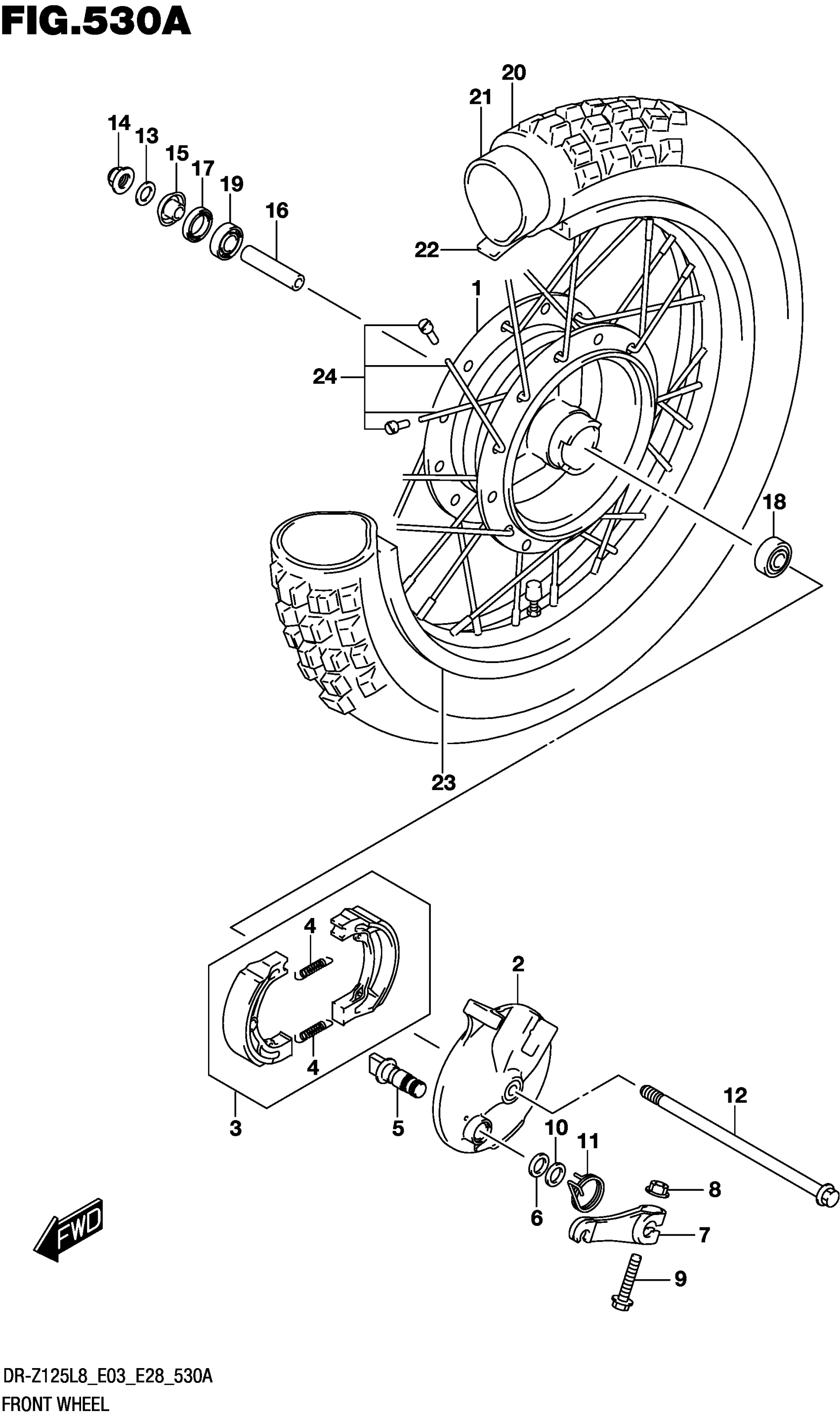

Suzuki DR-Z125L8 (2018) FRONT WHEEL (DR-Z125L8 E28) Diagram

HUB, FR WHEEL

54110-09401

$183.50

PANEL, FR BRAKE ANCHOR

54210-08G00

Unavailable

SHOE & SPRING SET, BRAKE

54401-43830

$53.30

.SPRING (L:37.8)

09443-07044

$3.04

CAM, FR BRAKE

54441-35401

Unavailable

O RING (D:2.5,ID:13.8)

09280-14011

$4.77

LEVER, FR BRAKE CAM

54451-26500

$14.76

NUT (6X12)

08316-1006A

$2.19

BOLT

01550-0635A

$2.32

WASHER (14.5X22X1.6)

09160-14055

$2.39

SPRING, FR BK CAM LEVER RETUR

54484-08G00

$6.97

AXLE, FR

54711-08G00

$29.07

WASHER,10.5X20X3.2 (10.5X20X3

09160-10005

$1.87

NUT

08319-3110A

$2.73

SPACER, FR AXLE RH

54740-26101

$18.87

SPACER (10.1X16X51)

09180-10148

$8.18

OIL SEAL (15X31X5)

09284-15001

$4.73

BEARING | LH

09262-10019

Unavailable

BEARING | RH This part replaces 08113-62007.

08113-6200B

$11.92

TIRE, FR (70/100-17 40M) | XB211

55110-08G00

$100.27

TIRE, FR (70/100-17 40M) | IRC

55110-08G00

$100.27

TUBE ASSY, WHEEL INNER This part replaces 55200-08G00.

55200-08G01

$22.77

PROTECTOR, WHEEL INNER TUBE

55261-08G20

$5.08

RIM, FR WHEEL (17X1.40)

55311-08G20

$306.43

SPOKE SET, FR WHEEL

55320-08G20

$65.18
