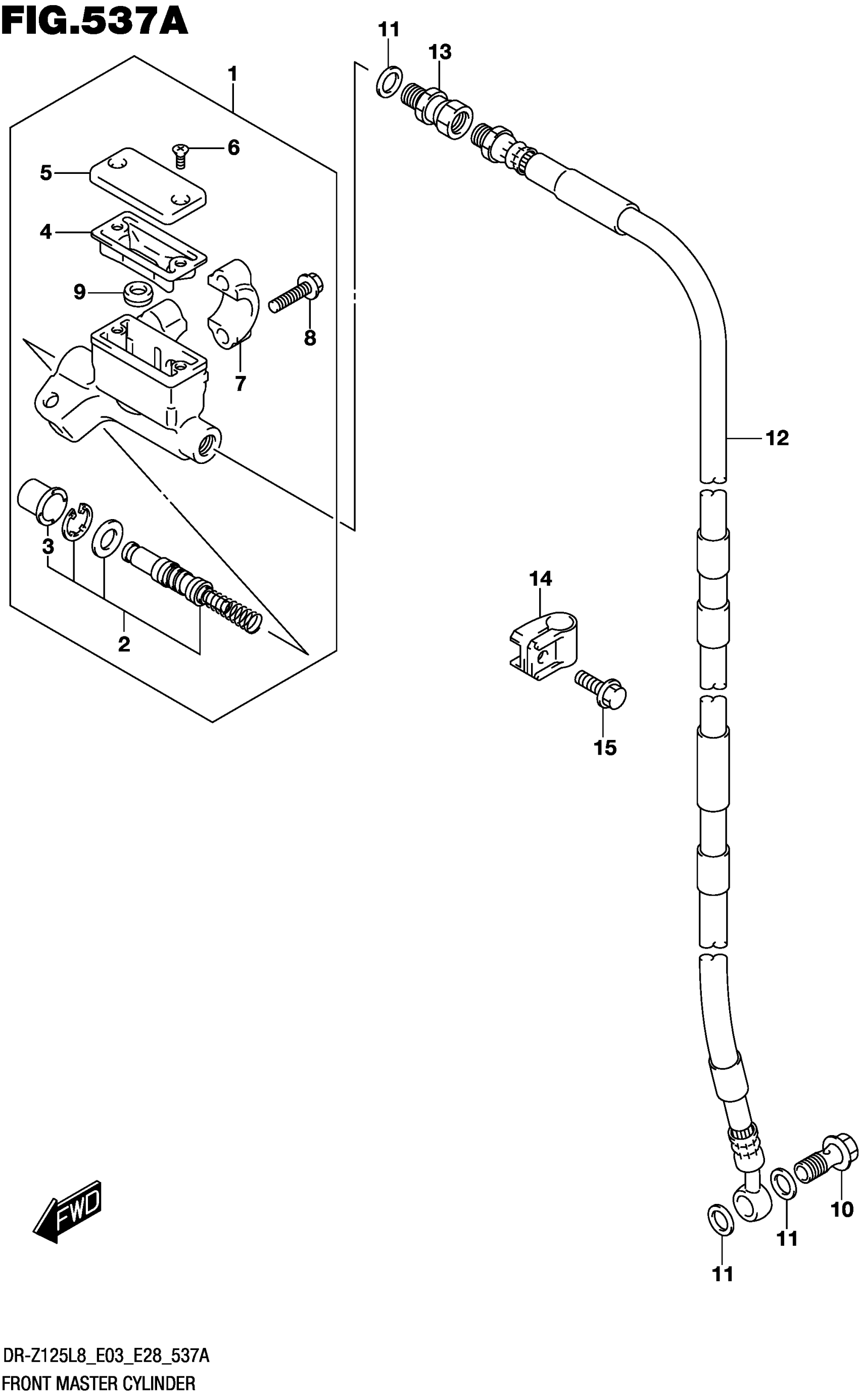

Suzuki DR-Z125L8 (2018) FRONT MASTER CYLINDER (DR-Z125LL8 E03) Diagram

#

Description
Price

1

CYLINDER ASSY, FR MASTER

59600-27C10

$232.73

2

.PISTON & CUP SET

59600-27820

$60.97

3

..BOOT

59666-44300

$5.80

4

.DIAPHRAGM

59667-14500

$10.12

5

.CAP

69669-44E00

$23.07

6

.SCREW

69689-49300

$1.91

7

.HOLDER

59671-27C00

$17.02

8

.BOLT

59675-27C00

$3.54

9

.SEPARATOR

59748-14500

$11.87

10

UNION (10X1.25X22)

09360-10062

$6.43

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE, FRONT BRAKE This part replaces 59480-08G01.

59480-08G02

$156.00

13

ADAPTER, BRAKE HOSE

59290-14501

$36.17

14

CLAMP, FR BRAKE

59243-03B01

$6.63

15

BOLT

01547-0616A

$2.03
