2018 Suzuki DR-Z125L8 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2018 Suzuki DR-Z125L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

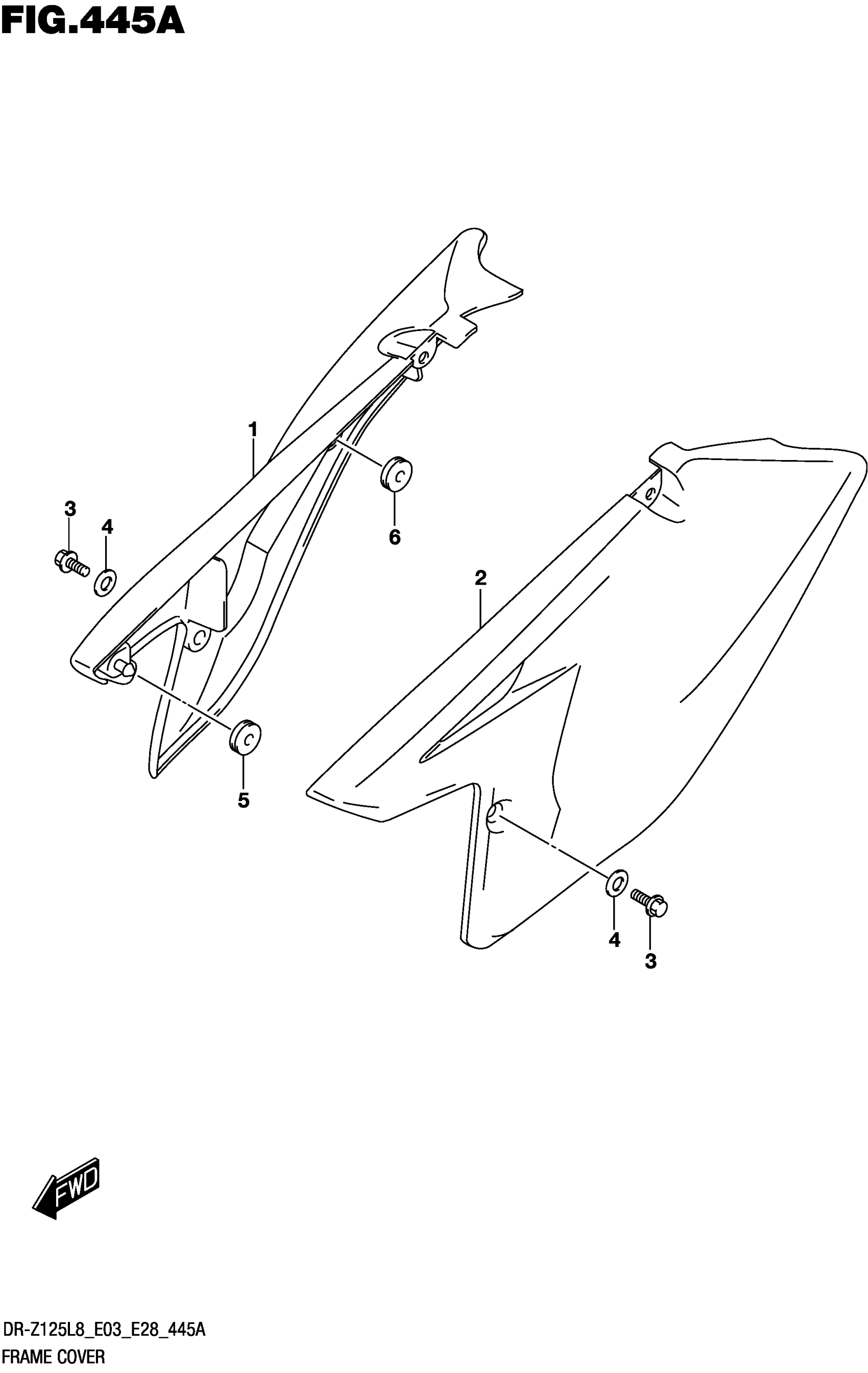

2018 Suzuki DR-Z125L8 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (WHITE)

47111-08G50-30H

1

$110.37

In stock

2

COVER, FRAME LH (WHITE)

47211-08G50-30H

1

$110.37

In stock

3

BOLT

01547-0616A

4
Out of stock

4

4

$2.35

In stock

5

CUSHION (8X26X7)

09320-08028

2
Out of stock

6

CUSHION (9X26X14)

47161-08G00

1

$10.88

In stock
← Frame Front Fender →
