Description

Price

1

FRAME (GRAY)

41100-08G11-YPT

$2,255.97

2

PLATE, ENG MTG UPR

41991-08G00

$14.47

3

BOLT (8X53)

09103-08332

$5.00

4

NUT

08319-3108A

$2.31

5

PLATE, ENG MTG LWR (GRAY)

41992-08G00-YPT

Unavailable

6

BOLT (8X65)

09103-08354

$3.88

7

NUT

08319-3108A

$2.31

8

PROTECTOR, ENGINE

42511-08G00

$59.07

9

BOLT (6X12)

09111-06107

$2.66

10

GUIDE, CH LENGTH CONTROL LWR

43912-42A00

$31.55

11

BOLT (6X16)

09128-06088

Unavailable

12

NUT

08319-3106A

$2.01

13

ROLLER, CHAIN CONTROL UPR

43911-13E10

$30.12

14

BOLT (8X38)

09103-08178

$4.29

15

WASHER

08211-08201

$2.06

16

SPACER (8.6X12.2X26.5)

09180-08215

$3.84

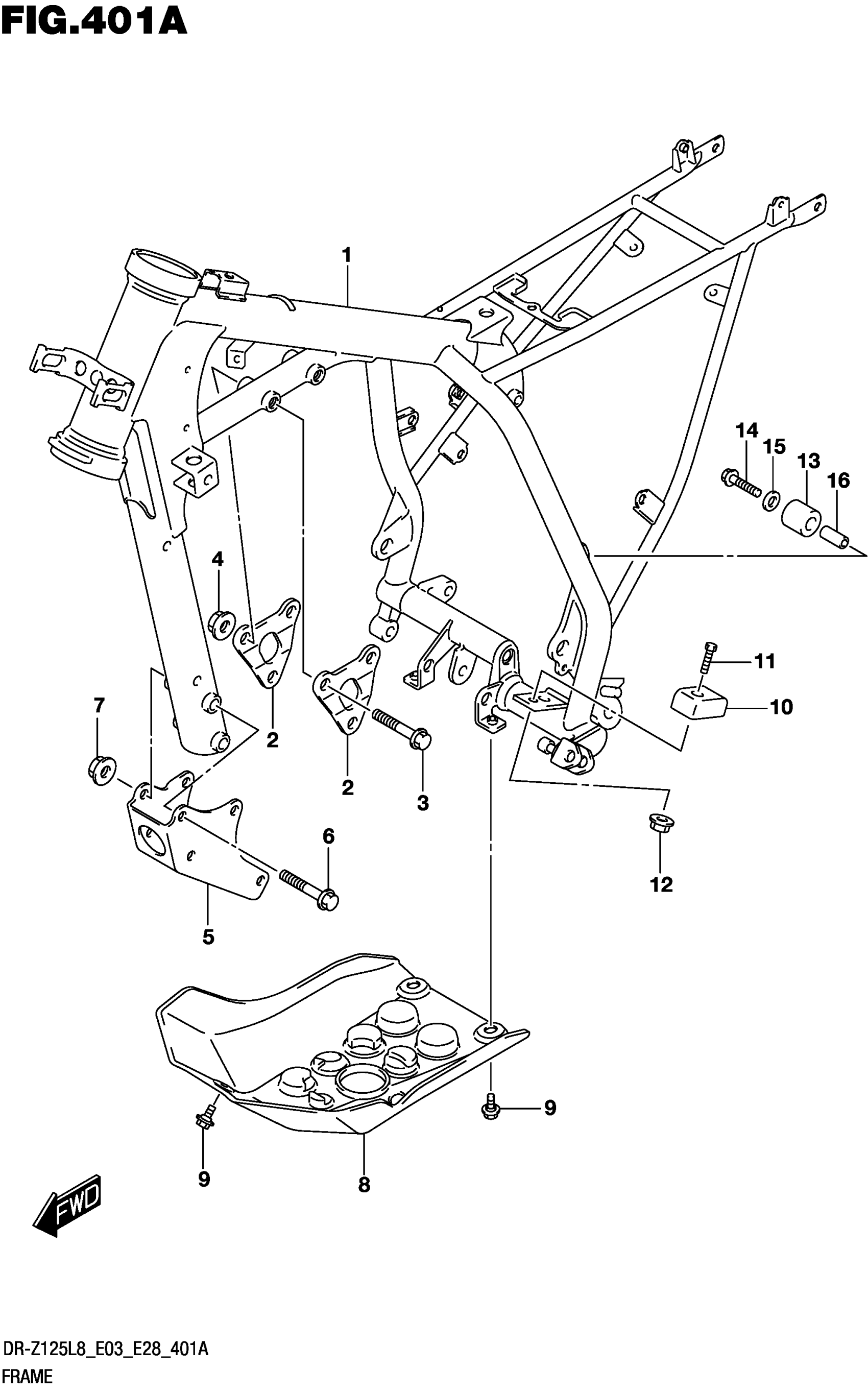

Suzuki DR-Z125L8 (2018) FRAME Diagram
