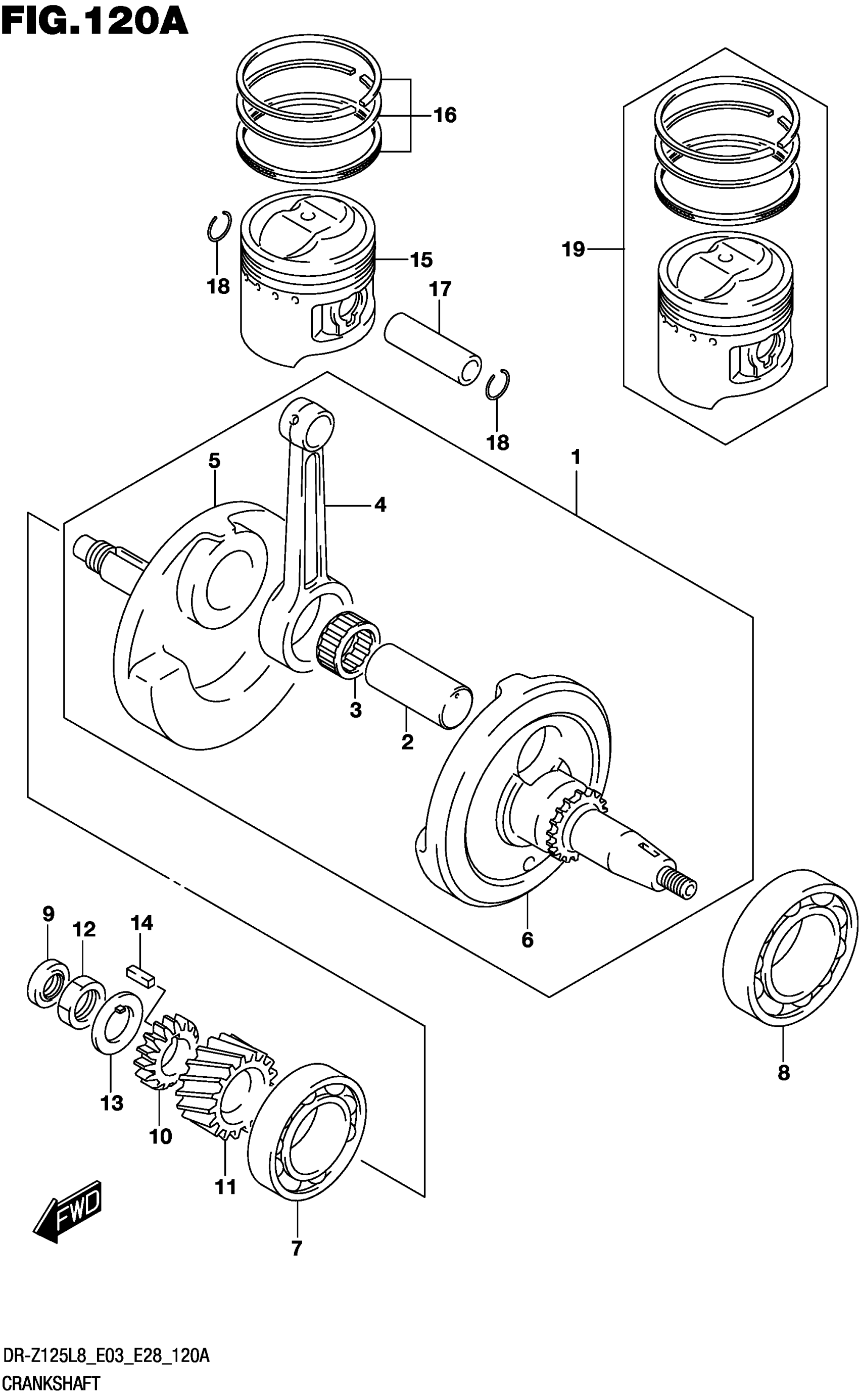

Suzuki DR-Z125L8 (2018) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-05240

Unavailable

2

.PIN, CRANK

12211-05231

Unavailable

3

.BEARING (28X36X15.8)

09263-28027-0B0

Unavailable

4

.CONNROD

12161-05221-0B0

Unavailable

5

.CRANKSHAFT RH

12221-05210

Unavailable

6

.CRANKSHAFT LH

12261-05210

Unavailable

7

BEARING (28X68X18)

09262-28014

$57.95

8

BEARING (35X72X17)

09262-35038

$46.10

9

OIL SEAL (12X21X7)

09282-12009

$13.11

10

GEAR, OIL PUMP DRIVE (NT:15)

16321-05201

Unavailable

11

GEAR, PRIMARY DRIVE (NT:17)

21111-05200-0C0

Unavailable

12

NUT

09140-16019

$3.70

13

WASHER

09166-16012

$2.53

14

KEY

09421-04004

$3.99

15

PISTON

12111-05202-0F0

$69.95

16

RING SET, PISTON

12140-01410

$36.08

17

PIN, PISTON

12151-05220-0A0

$13.65

18

RING

09381-14001

$1.49

19

PISTON SET (OS:0.5) | OPT

12100-05200-050

$124.55
