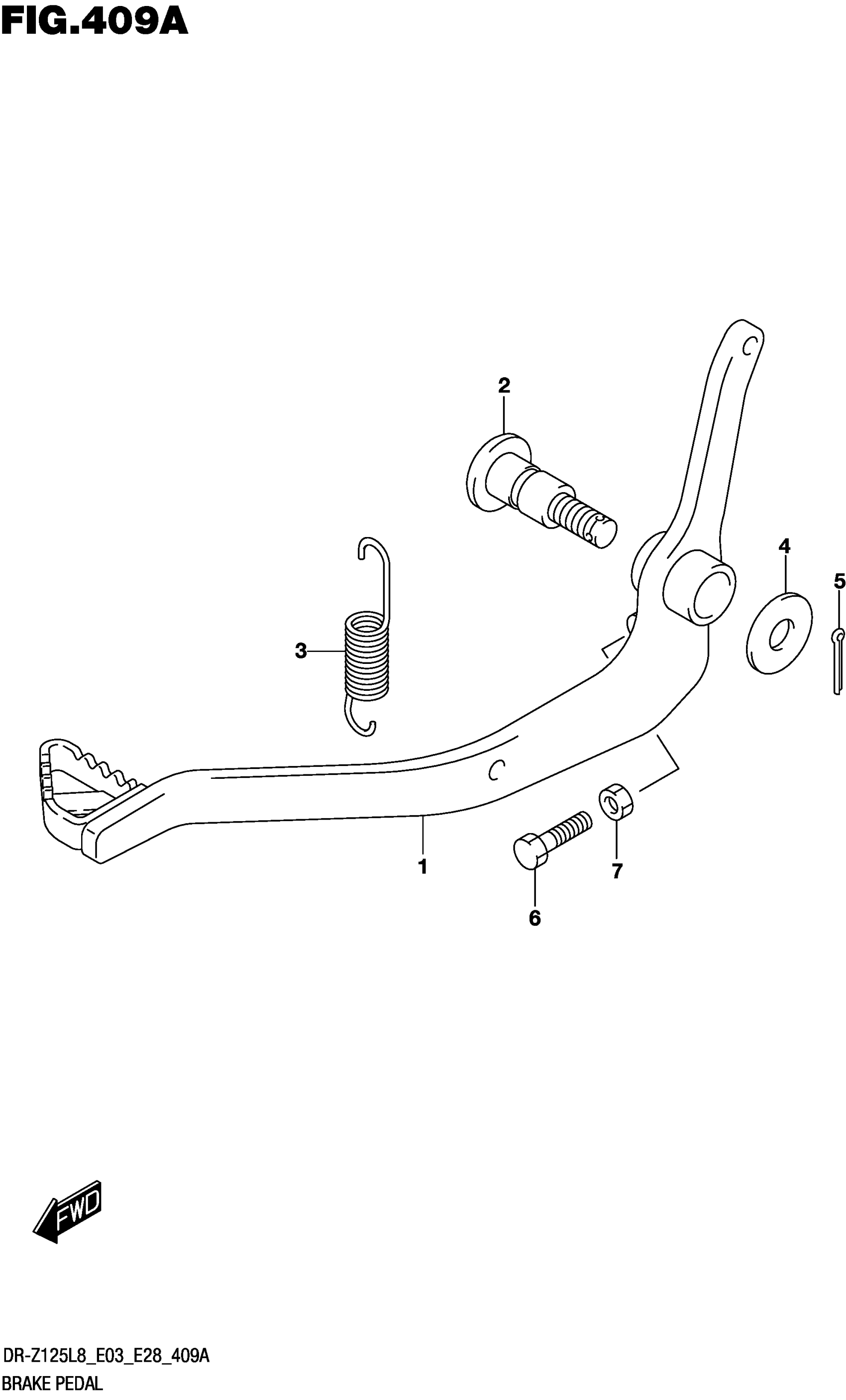

Suzuki DR-Z125L8 (2018) BRAKE PEDAL Diagram

#

Description

Price

1

PEDAL, BRAKE

43110-08G00

$101.93

2

SHAFT, BRAKE PEDAL

43142-27C00

$23.07

3

SPRING

09443-13029

$5.36

4

WASHER

08211-10261

$2.03

5

PIN

04111-2020A

$1.49

6

BOLT (6X18)

09100-06064

$1.61

7

NUT

08310-0006B

$2.34
