2017 Suzuki DR-Z125L7 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2017 Suzuki DR-Z125L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

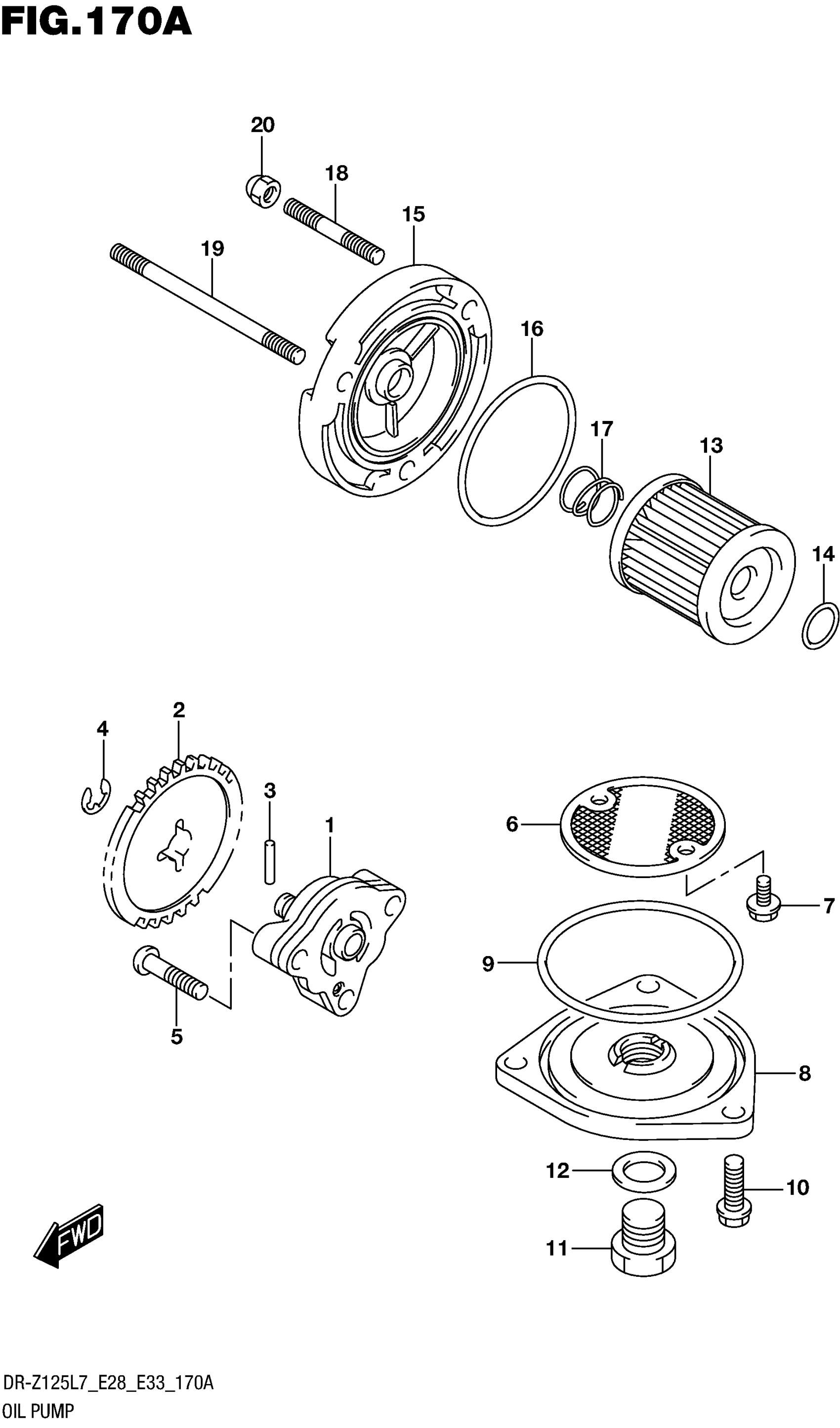

2017 Suzuki DR-Z125L7 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, ENG OIL

16400-42A01

1
Out of stock

2

GEAR, OIL PUMP DRIVEN (NT:30)

16331-04B00

1
Out of stock

3

PIN (2.5X11.8)

09261-02008

1
Out of stock

4

E RING

08332-1106A

1
Out of stock

5

SCREW

02112-0625A

3
Out of stock

6

STRAINER, ENGINE OIL

16520-05202

1
Out of stock

7

SCREW

02112-7512A

2
Out of stock

8

CAP, OIL STR

16523-05200

1
Out of stock

9

.O RING (D:2.4,ID:60.5)

09280-60005

1
Out of stock

10

BOLT

01547-0620A

3
Out of stock

11

PLUG (14X12) | OIL DRAIN

09247-14026

1
Out of stock

12

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

13

FILTER ASSY, ENG OIL

16510-25C00

1
Out of stock

14

O RING (D:1.9,ID:13)

09280-13004

1
Out of stock

15

CAP, OIL FILTER

16512-42A20

1
Out of stock

16

O RING (D:2.4,ID:52.6)

09280-54001

1
Out of stock

17

SPRING

09440-18002

1
Out of stock

18

STUD BOLT

09108-06123

2
Out of stock

19

STUD BOLT (L:90)

09108-06108

1
Out of stock

20

NUT

08313-1006A

3
Out of stock
