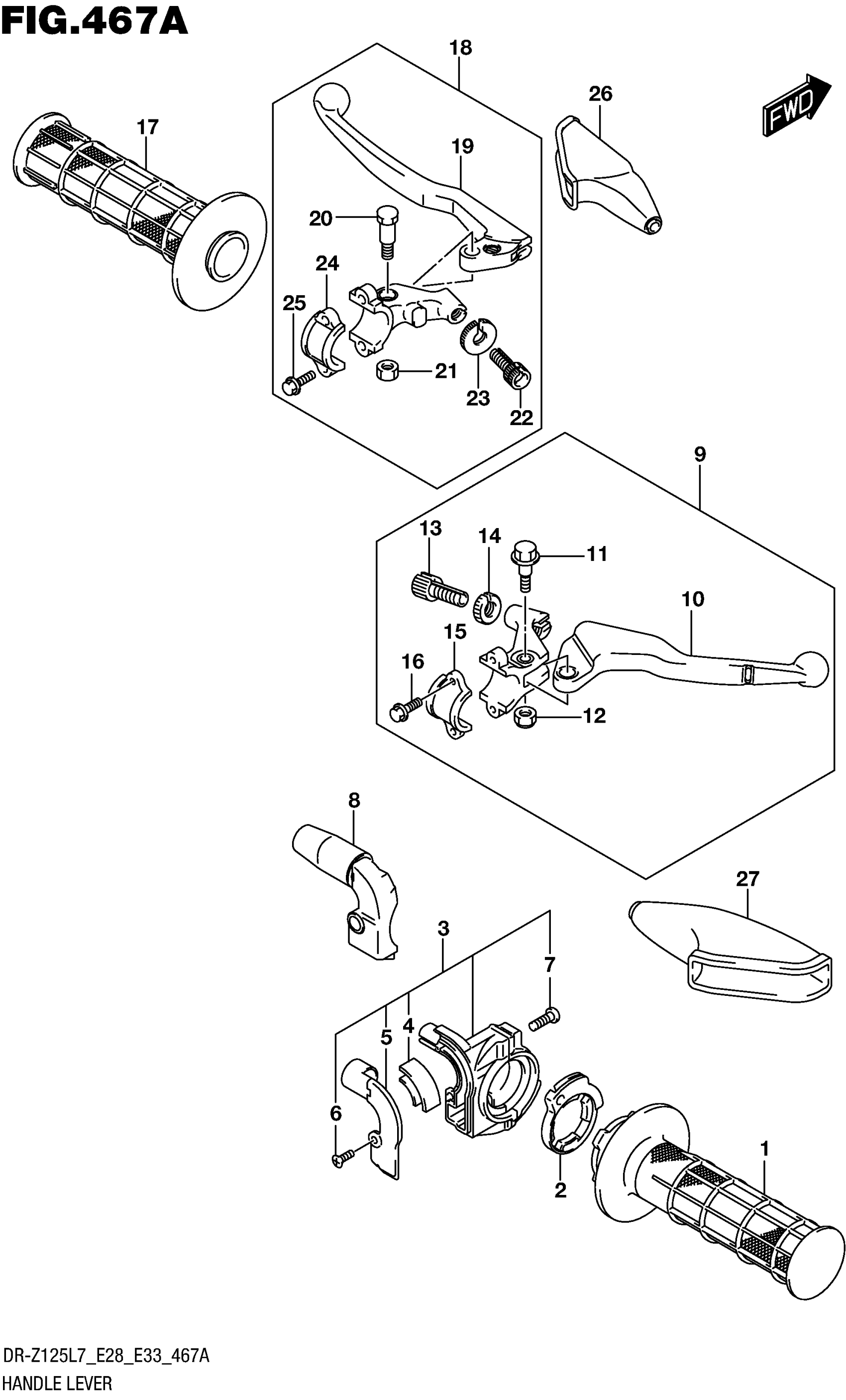

Suzuki DR-Z125L7 (2017) HANDLE LEVER (DR-Z125 E28) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-27C00

$26.37

2

ROTER, THROTTLE

57114-20430

$12.57

3

CASE ASSY, THROTTLE This part replaces 57100-03D10.

57100-03D12

$45.64

4

.GUIDE This part replaces 57122-03D10.

57122-03D11

$8.48

5

.COVER

57129-03D10

$28.25

6

.SCREW

02132-0406B

$3.40

7

.SCREW

02112-0516A

$1.49

8

COVER, THROTTLE CASE

57129-08G00

$21.83

9

LEVER ASSY, BRAKE This part replaces 57300-14320.

57300-14321

$63.38

10

.LEVER, BRAKE

57420-14320

$47.22

11

.BOLT, LEVER PIVOT

57431-14320

Unavailable

12

.NUT

08319-2106A

$1.91

13

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$9.05

14

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

15

.BRACKET, HOLDER

57512-37F00

$28.85

16

.BOLT

01547-06207

$2.01

17

GRIP LH

57211-27C00

$12.28

18

LEVER ASSY, CLUTCH This part replaces 57500-14320.

57500-14322

$45.45

19

.LEVER, CLUTCH

57621-13E00

$13.15

20

..BOLT,LEVER PIVOT

57431-21D11

$9.76

21

.NUT

08319-2106A

$1.91

22

.ADJUSTER, WIRE This part replaces 57441-29F00.

57441-29F01

$11.32

23

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

24

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

$25.63

25

.BOLT, BRACKET

57513-29F10

$6.23

26

COVER, CLUTCH CABLE DUST This part replaces 57341-29F01.

57341-29F02

$8.52

27

COVER, CLUTCH LEVER This part replaces 57341-40002.

57341-40003

$5.56
